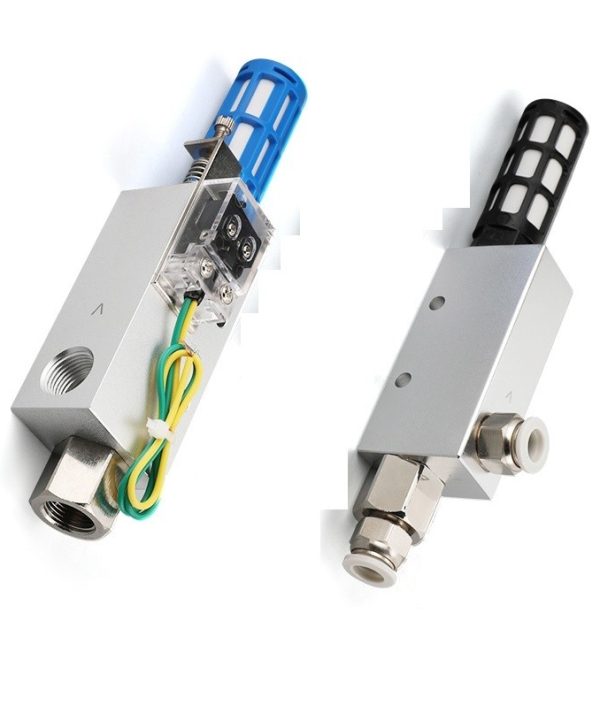

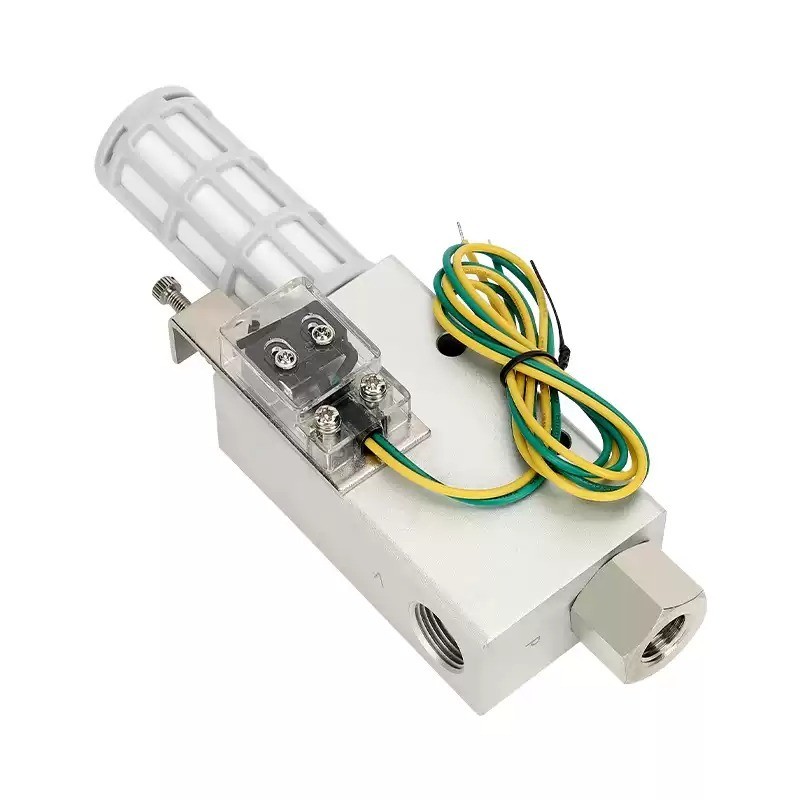

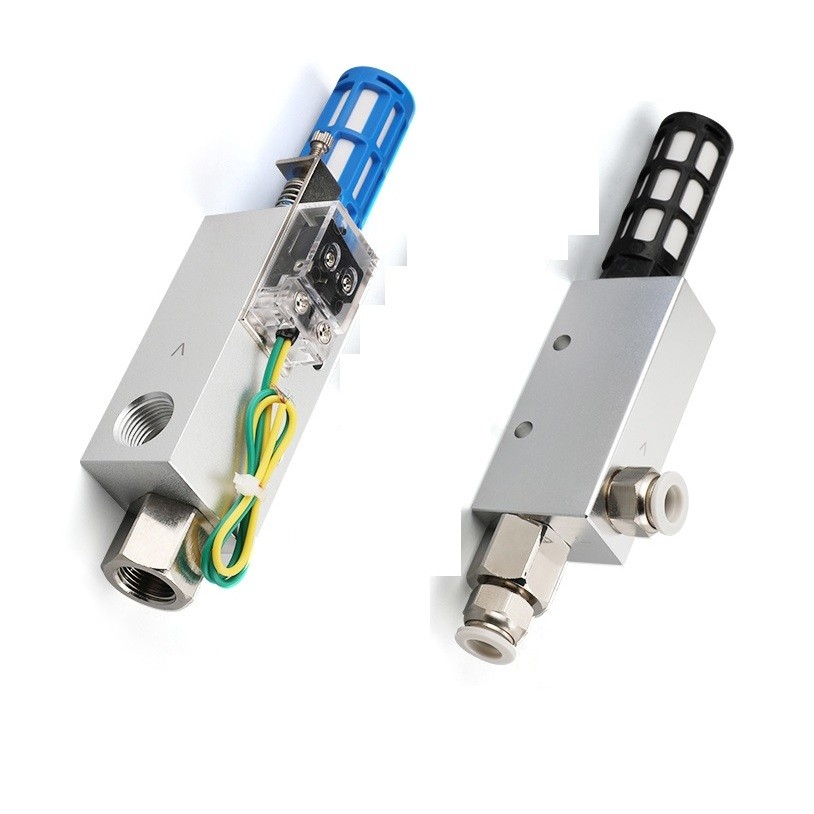

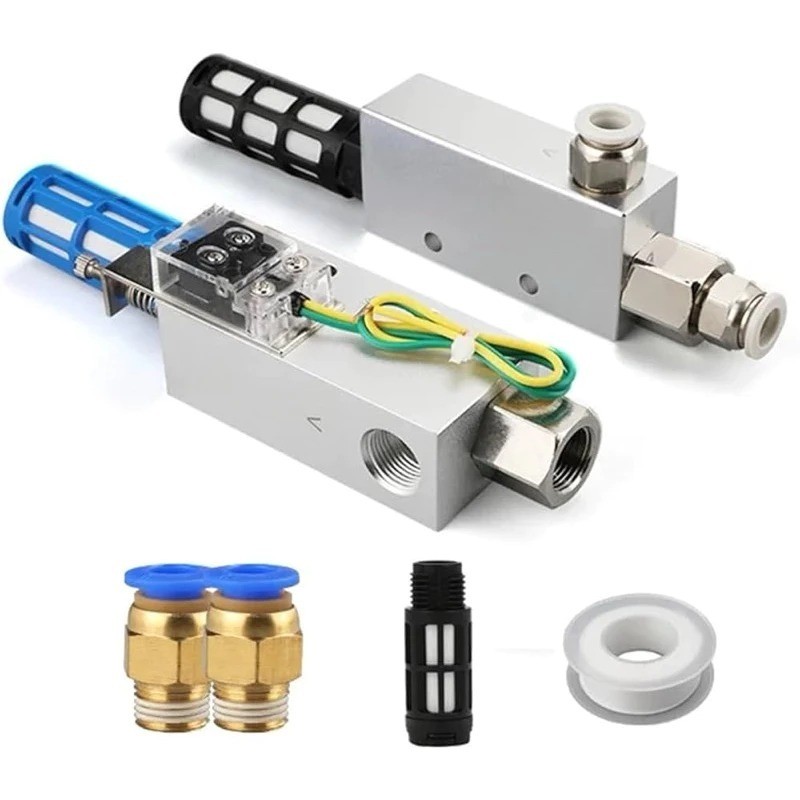

Van chân không CV-05-10-15-20-25-30-R-S-SK-HS-HR-RH-L New
Specification
Fluid Air
Operating Temperature Range 0~60ºC(No Freezing)
Lubricator No
Operating Pressure Range 0.1~0.6MPa
Mechanical Vacuum Signal to Confirm Installation
Item -S Fixed Type -SK Adjustable Type
Setting Range(kPa) -39.9 -20.0~53.2
Initial Setup(kPa) -39.9 -46.6
Operation Precision(kPa) ±5.3
Hysteresis(kPa) 4.0~13.3
Electrical Specification AC125V:5A, AV250V:3A, DC250V:0.2A
Operating Temperature Range(ºC) 0~60
Model Specification
Model Nozzle Dia. (mm) Flow Rate (L/min) Vacuum Pressure (-kPa) Air Consumption (L/min) Supply Pressure (MPa)
CV-05-R 0.5 6 86.6 13 0.5
CV-05-L 0.5 9 57.2 13 0.5
CV-10-R 1.0 27 91.8 44 0.5
CV-10-L 1.0 36 57.2 44 0.5
CV-15-R 1.5 63 91.8 100 0.5
CV-15-L 1.5 95 57.2 100 0.5
CV-20-R 2.0 110 91.8 180 0.5
CV-20-L 2.0 165 57.2 180 0.5
CV-25-R 2.5 160 91.8 265 0.5
CV-25-L 2.5 250 57.2 265 0.5
CV-30-R 3.0 225 91.8 385 0.5
CV-30-L 3.0 350 57.2 385 0.5
CV-10-RH 1.0 25 90.6 44 0.35
CV-15-RH 1.5 54 90.6 100 0.35
CV-20-RH 2.0 88 90.6 180 0.35
