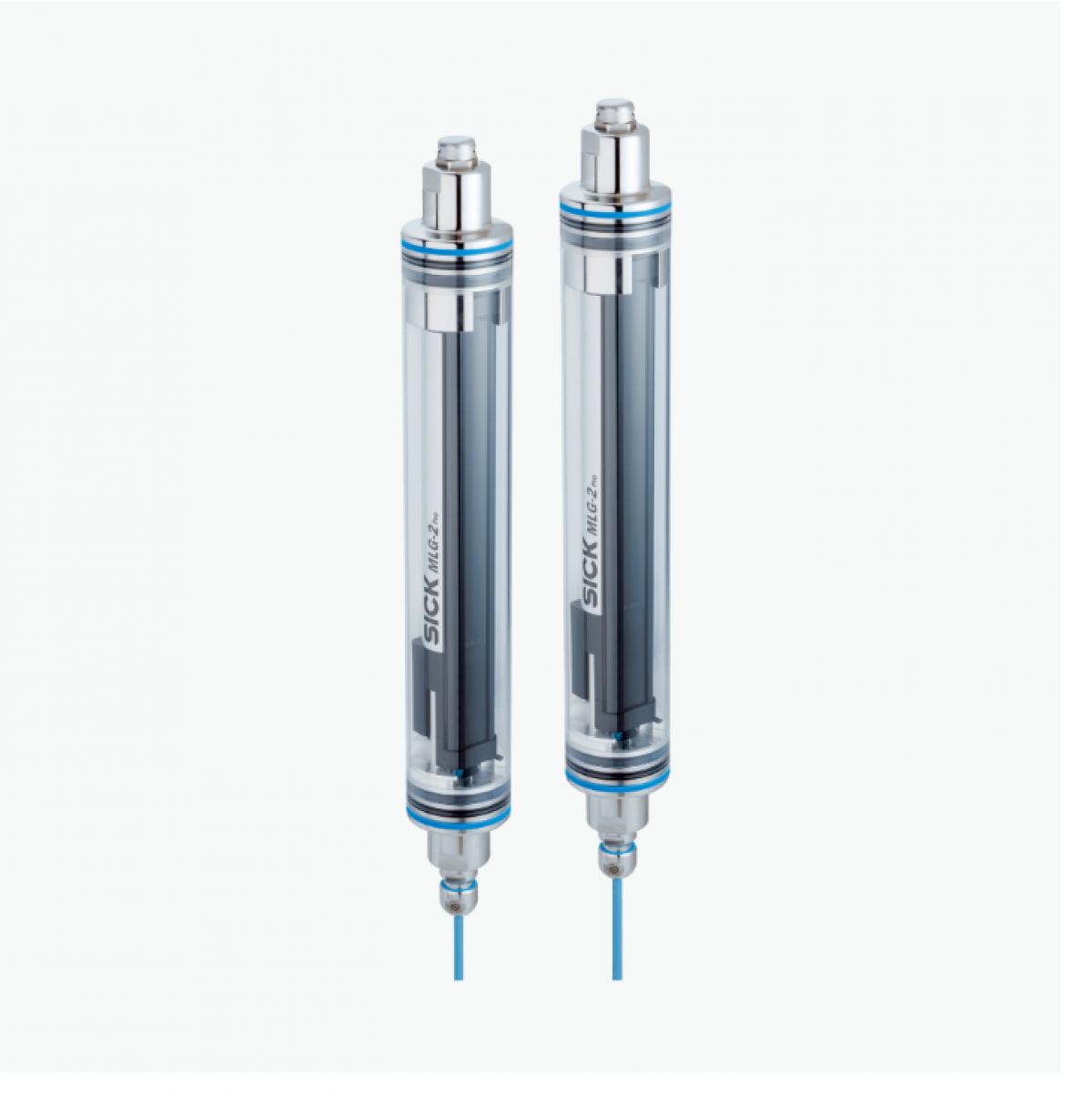

Lưới đèn tự động Sick MLG30A-0420R50501
Device version
Pro – Advanced functionality
Sensor principle
Sender/receiver
Minimum detectable object (MDO)
30 mm, 34 mm 1) 2) 3)
Beam separation
30 mm
Type of synchronization
Cable
Number of beams
15
Detection height
420 mm
Software features (default)
Q1
Presence detection
Q2 / IN
Teach input
Q3
Presence detection
Q4 / IN2
Presence detection
Teach
Standard mode
Operating mode
Standard
✔
Transparent
✔
Dust- and sunlight-resistant
✔
Function
Cross beam
✔
Beam blanking
✔
High measurement accuracy
✔
Applications
Switching output
Object recognition/object width
Object recognition
Height classification
Hole detection/hole size
Outside dimension/inside dimension
Object position
Hole position
Zone definition
Data interface
Object detection
Hole detection
Object height measurement
Measurement of external dimension
Measurement of inside dimension
Measurement of object position
Measurement of hole position
Included with delivery
1 × sender (in IP69K protective pipes)
1 × receiver (in IP69K protective pipes)
1 x IP69K mounting instructions
1 × Quick Start Guide
1) MDO min. detectable object at high measurement accuracy.
2) MDO min. detectable object for standard measurement accuracy.
3) Depending on beam separation without cross beam setting.
Technical drawings
Dimensional drawing
Connection type and diagram M12 male connector, 5/8-pin, switching outputs Q | YF2AP8-xxxPA4XLEAX (IP69K connecting cable)
Pinouts
Adjustments
Connection diagram T-junction, PLC
Connection diagram T-junction, IO-Link-Master
