Specification
Rotary Union Specifications
Mechanical data
Parameter
Value
Parameter
Value
Passage
8 in 8 out, G1/8″
Working Life
Over 10 Million Revs
Max.
5MPa Vacuum 0.01torr
Rotating Speed
500RPM
Torque
See Part#List
Working Temp.
-30℃~80℃
Electrical data
Operating Humidity
0~85% RH
Parameter
Value
Contact Material
See Prod Quality Level
Power
Signal
Housing Material
Aluminium Alloy
Rated Voltage
0~240VAC/VDC
0~240VAC/VDC
Protection grade
IP51
Insulation Res
≥500MΩ/500VDC
≥500MΩ/500VDC
Lead Wires
AWG17#Teflon
AWG22#Teflon
Lead Length
Standard 300mm
Dielectric Strength
500VAC@50Hz，60s
Res Noise
<0.01Ω
Part List
Dimension
Installing
Options
Customized
Case-Study
Price

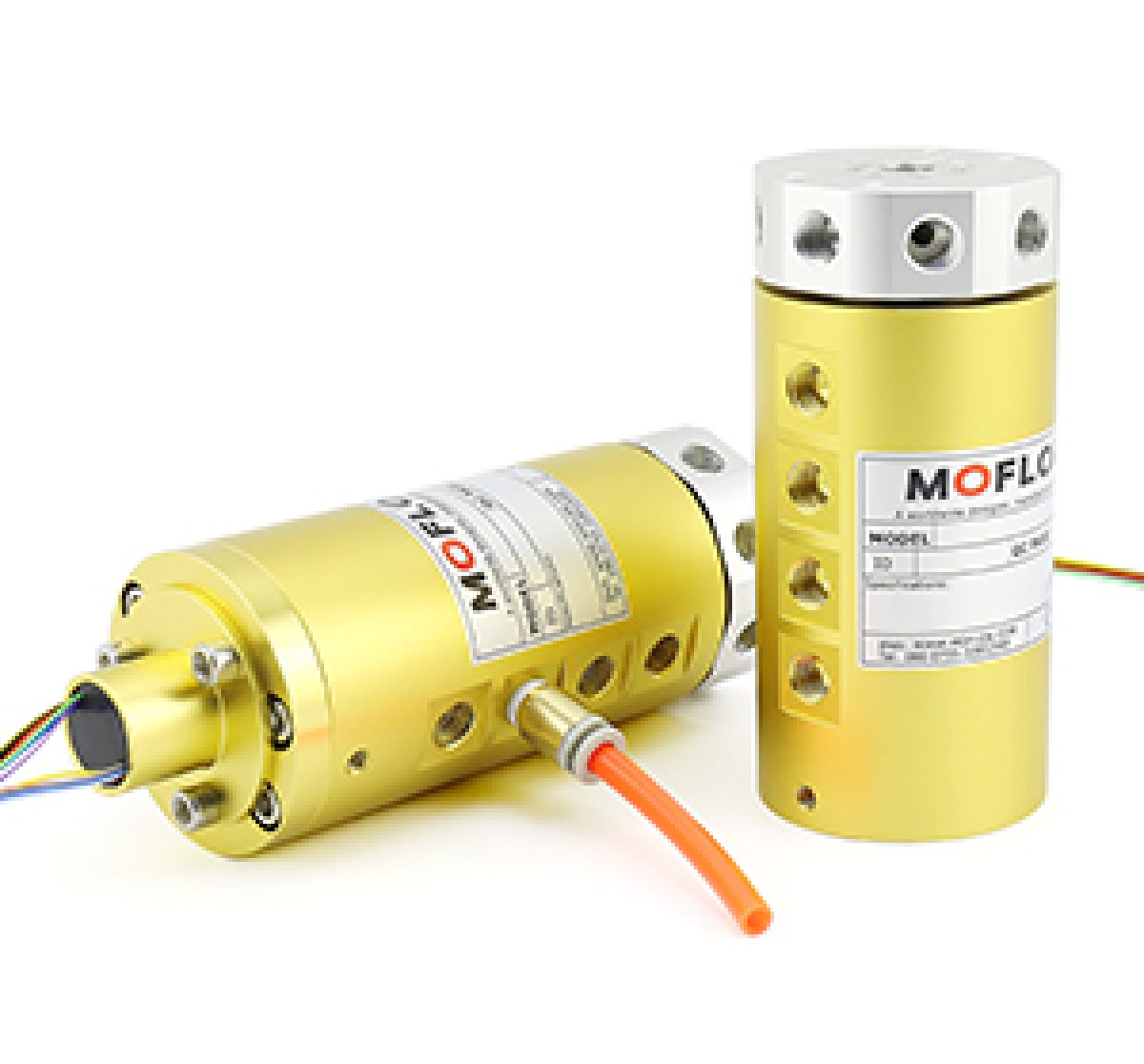

MK81 (rotary union only for pneumatic) drawing (8 in 8 out, connection size G1/8")
MK81 Parts# List
Model
Passages
Connection Size
Tube Size
MK81
8
G1/8"
6~8mm
MK81S-S12/MK81S-S18/MK81S-S24/MK81S-S36 Drawings
MK81S-S12/MK81S-S18/MK81S-S24/MK81S-S36 Parts# List
Model
Passages
Connection Size
Tube Size
Signal(2A)
L(mm)
MK81S-S12
8
G1/8"
6~8mm
12
22.5
MK81S-S18
8
G1/8"
6~8mm
18
29.5
MK81S-S24
8
G1/8"
6~8mm
24
40.1
MK81S-S36
8
G1/8"
6~8mm
36
53.8
MK81S-S56 drawing 8 in 8 out, connection size G1/8" + 56XSignal(2A)
MK81-S56 Parts# List
Model
Passages
Connection Size
Tube Size
Signal/(2A)
MK81-S56
12
G1/8"
6~8mm
56
MK81-PXX-SXX drawing 8 in 8 out, connection size G1/8"+signal(5A)/10A
MK81-PXX-SXX Parts# List
Model
Passages
Connection Size
Tube Size
10A
Signal/5A
L(mm)
MK81-P0610
8
G1/8"
6~8mm
6
0
38
MK81-S06
8
G1/8"
6~8mm
0
6
38
MK81-P1210
8
G1/8"
6~8mm
12
0
54.8
MK81-P0610-S06
8
G1/8"
6~8mm
6
6
54.8
MK81-S12
8
G1/8"
6~8mm
0
12
54.8
MK81-P1810
8
G1/8"
6~8mm
18
0
71.5
MK81-P0610-S12
8
G1/8"
6~8mm
6
12
71.5
MK81-P1210-S06
8
G1/8"
6~8mm
12
6
71.5
MK81-S18
8
G1/8"
6~8mm
0
18
71.5
MK81-S24
8
G1/8"
6~8mm
0
24
88.4
MK81-P0610-S18
8
G1/8"
6~8mm
6
18
88.4
MK81-S30
8
G1/8"
6~8mm
0
30
105.2
MK81-S36
8
G1/8"
6~8mm
0
36
125
Note:10A and signal(5A) can be freely combined, please contact customer service for…
