Standard series PART# Explanation
Specification
(RF Rotary joints) Specifications
Mechanical data
Parameter
1
2
Parameter
Value
Frquency
0~5GHz
0~5GHz
Working Life
50Million Revs.
Rated Power
20W
20W
Rotating Speed
150RPM
VSWR
<1.3
<1.3
Working Temp.
-30℃~80℃
Insertion Loss
0.3db
0.3db
Operating Humidity
0~85% RH
VSWR Ripple
<0.05
<0.05
Contact Material
Gold-Gold
Insertion Loss Ripple
0.05db
0.05db
Housing Material
Aluminium Alloy
Connector Types
SMA
SMA
Torque
0.1N.m˙+0.03/6rings
Characteristic Impedance
50Ω
50Ω
Protection grade
IP51
Electrical data
Parameter
Value
Power
Signal
Rated Voltage
0~440VAC/VDC
0~240VAC/VDC
Insulation Res
≥1000MΩ/500VDC
≥1000MΩ/500VDC
Lead Wires
AWG16#Teflon
AWG22#Teflon
Lead Length
Standard 300mm
Dielectric Strength
500VAC@50Hz,60s
Res Noise
<0.01Ω
Part List
Dimension
Installing
Options
Customized
Case-Study
Price

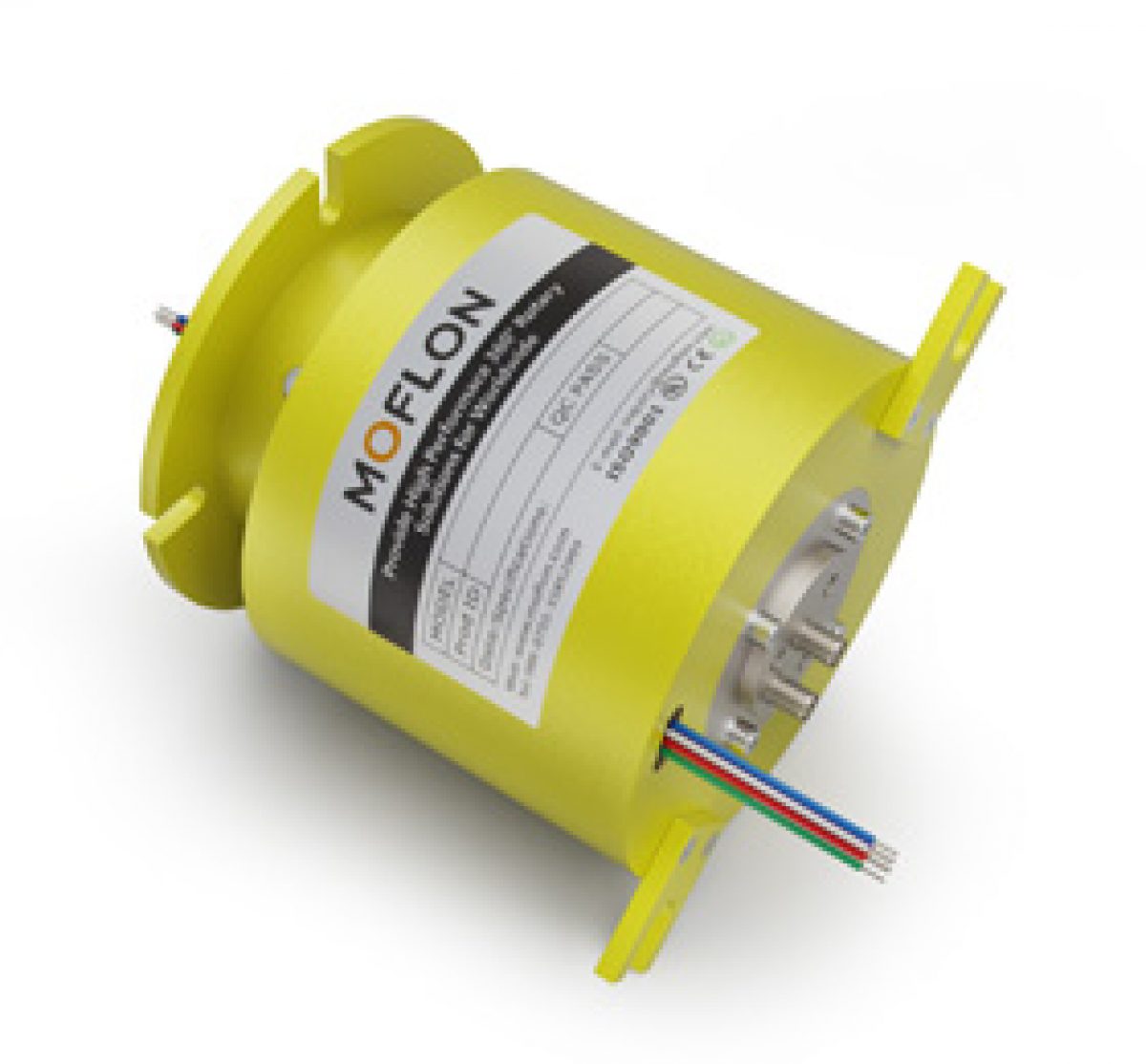

MHF208 – 2channel RF rotary joint part…
