Standard series PART# Explanation
Product Quality Level Table
Products Level Code
Max speed
Working Life
Sealing Element
VC
100RPM
6Million Revs.
Domestic famous brand seals
VD
300RPM
20Million Revs.
Imported seals
Specification
Mechanical data
Rotary Union Specifications
Parameter
Value
Parameter
Value
Working life
See Prod Level Table
Passages
4 Passages
Rated speed
See Prod Level Table
Max Pressure
50MPa (customizable high pressure),vacuum 30HG
Operating temp
-30℃~80℃
Media Type
Air,vacuum,hydraulic oil,water,hot water,coolant,steam,etc
Working humidity
0~85% RH
Torque
Depends on connection size.
Seals
See Prod Level Table
Shell material
Aluminum alloy/steel
Protection Grade
IP51
Part List
Dimension
Installing
Options
Customized
Case-Study
Price

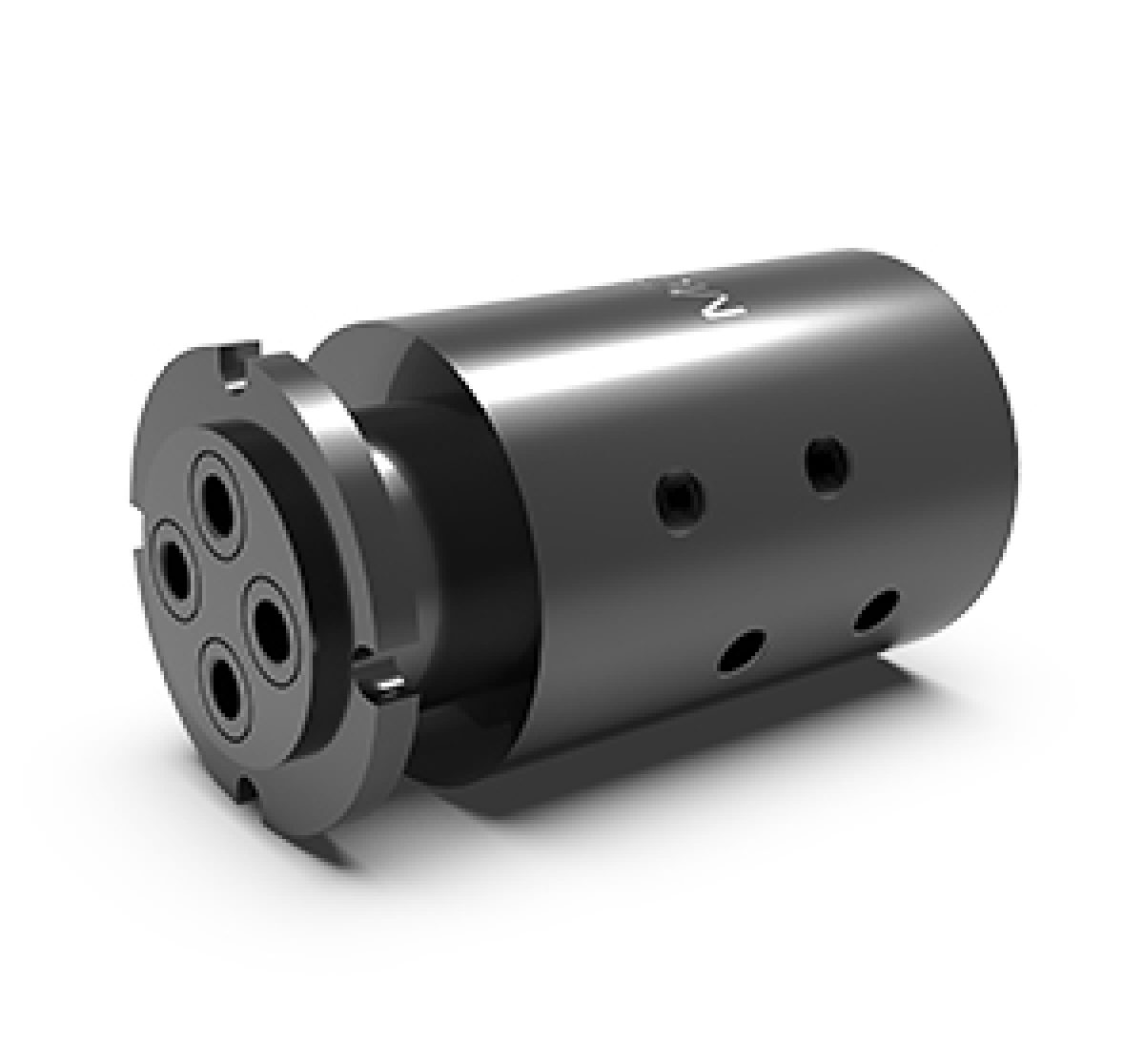

MGP4 series Parts# List
Model No
Passages
Port size
Inner hole size
Pressure
MGP41
4 in 4 out
G1/8″
N/A
0-50MPa
MGP41-ID12
4 in 4 out
G1/8″
12mm
0-50MPa
MGP42
4 in 4 out
G1/4″
N/A
0-50MPa
MGP42-ID19
4 in 4 out
G1/4″
19mm
0-50MPa
MGP43
4 in 4 out
G3/8″
N/A
0-50MPa
MGP43-ID19
4 in 4 out
G3/8″
19mm
0-50MPa
MGP44
4 in 4 out
G1/2″
N/A
0-50MPa
MGP44-ID19
4 in 4 out
G1/2″
19mm
0-50MPa
MGP46
4 in 4 out
G3/4″
N/A
0-50MPa
MGP47
4 in 4 out
G7/8″
N/A
0-50MPa
MGP4 Series Drawings
