Standard series PART# Explanation
Product Quality Level Table
Products Level Code
Max speed
Working Life
Contact Material
VC
200RPM
15Million Revs.
Precious Metal
VD
600RPM
80Million Revs.
Precious Metal
Specification
Mechanical data
Electrical data
Parameter
Value
Parameter
Value
Working Life
See Prod Quality Level
Power
Signal
Rotating Speed
See Prod Quality Level
Rated Voltage
0~440VAC/VDC
0~440VAC/VDC
Working Temp.
-30℃~80℃
Insulation Res
≥1000MΩ/500VDC
≥1000MΩ/500VDC
Operating Humidity
0~85% RH
Lead Wires
AWG16#Teflon/PVC
AWG22#Teflon/PVC
Contact Material
See Prod Quality Level
Lead Length
Standard 300mm
Housing Material
Aluminium Alloy
Dielectric Strength
500VAC@50Hz，60s
Torque
1.0N.m;+0.03/6ring
Res Noise
<0.01Ω
Protection grade
IP65
Part List
Dimension
Installing
Options
Customized
Case-Study
Price

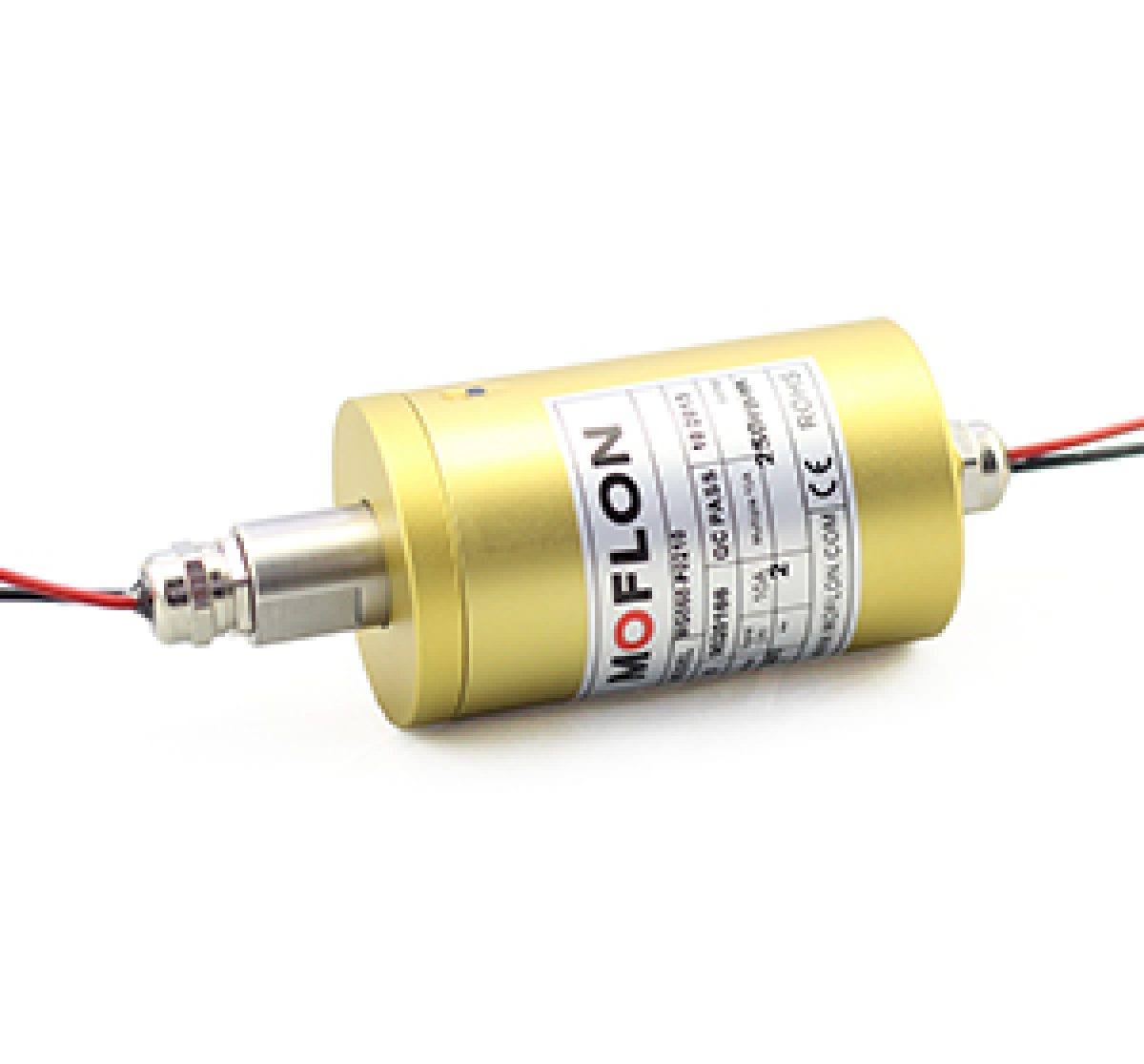

MFS056-series water-proof/underwater
Part#
10A
Signal/5A
Length(mm)
Part#
10A
Signal/5A
Length(mm)
MFS056-P0610
6
0
38
MFS056-S06
0
6
38
MFS056-P0210-S04
2
4
38
MFS056-P0410-S02
4
2
38
MFS056-P1210
12
0
54.8
MFS056-S12
0
12
54.8
MFS056-P0210-S10
2
10
54.8
MFS056-P0410-S08
4
8
54.8
MFS056-P0610-S06
6
6
54.8
MFS056-P0810-S04
8
4
54.8
MFS056-P1010-S02
10
2
54.8
MFS056-S18
0
18
71.5
MFS056-P1810
18
0
71.5
MFS056-P0410-S14
4
14
71.5
MFS056-P0210-S16
2
16
71.5
MFS056-P0810-S10
8
10
71.5
MFS056-P0610-S12
6
12
71.5
MFS056-P1210-S06
12
6
71.5
MFS056-P1010-S08
10
8
71.5
MFS056-P1610-S02
16
2
71.5
MFS056-P1410-S04
14
4
71.5
MFS056-S24
0
24
88.4
MFS056-P2410
24
0
88.4
MFS056-P1210-S12
12
12
88.4
MFS056-P0610-S18
6
18
88.4
MFS056-P1810-S06
18
6
88.4
Rings and current can be customized.
