Standard series PART# Explanation
Specification
Items
Type
Single-mode
Multiple-mode
WaveWidth(nm)
±50
Max insert Loss，23℃(dB)
1.2
0.7
Insert Loss Ripple(dB)
0.6
0.4
Return Loss(dB)
≥55(No connector)
≥40(No connector)
Max Power(W)
0.5
Weight(g)
50
Max speed(rpm)
1000
Working Life
>500 million revs
Working Temp.(℃)
-45~85
Storage Temperature(℃)
-50~85
Mechanical data
Electrical data
Parameter
Value
Parameter
Value
Working Life
20Million Revs.
Power
Signal
Rotating Speed
250RPM
Rated Voltage
0~440VAC/VDC
0~440VAC/VDC
Working Temp.
-30℃~80℃
Insulation Res
≥1000MΩ/500VDC
≥1000MΩ/500VDC
Operating Humidity
0~85% RH
Lead Wires
AWG22#Teflon
AWG22#Teflon
Contact Material
Gold-Gold
Lead Length
Standard 300mm
Housing Material
Aluminium Alloy
Dielectric Strength
500VAC@50Hz，60s
Torque
0.1N.m;+0.03/6ring
Res Noise
<0.01Ω
Protection grade
IP51
Part List
Dimension
Installing
Options
Customized
Case-Study
Price

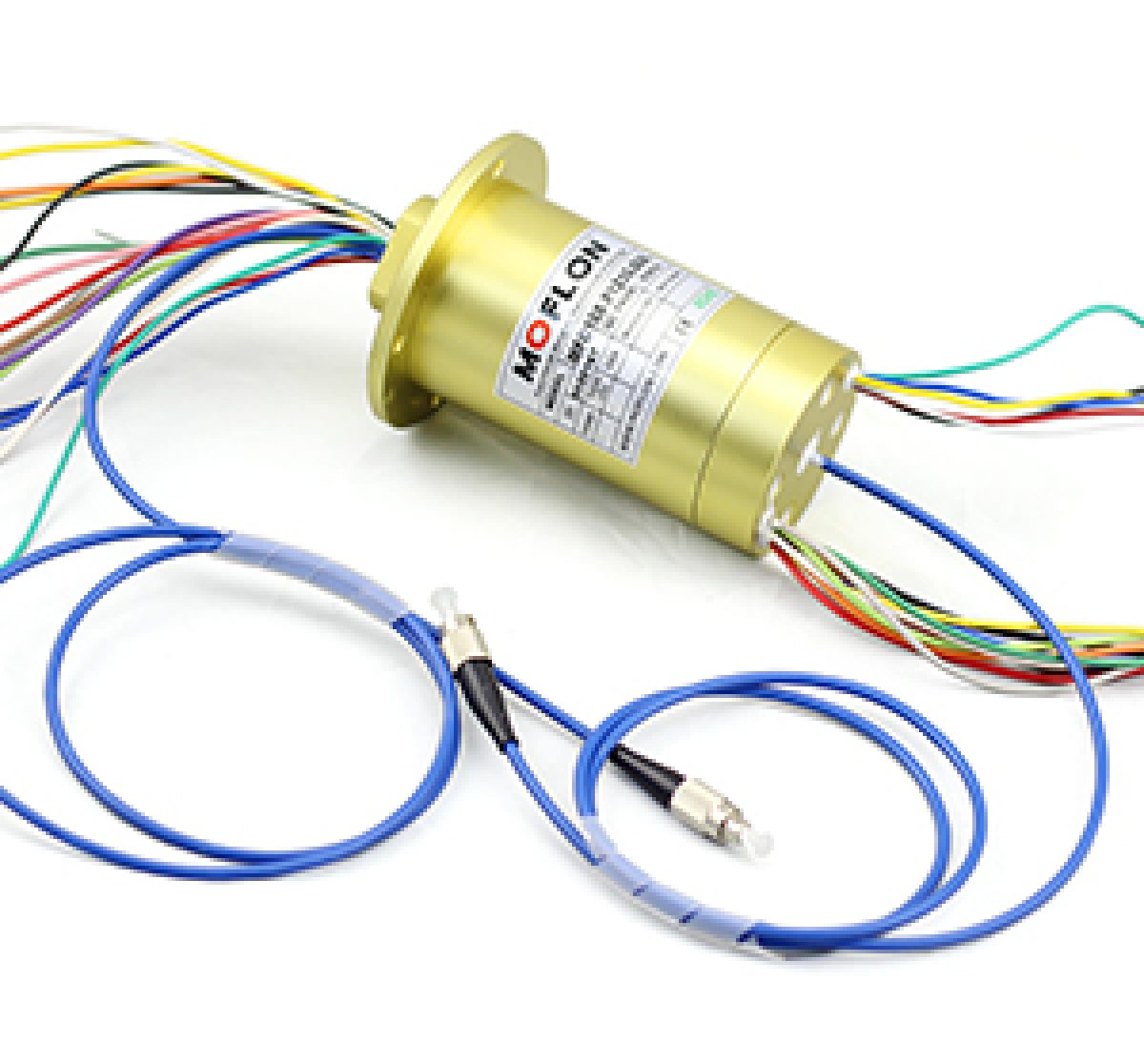

MFO107 series parts# list
Part#
Optic Fiber Channel
10A
Signal/5A
Length(mm)
MFO107-S06
1
0
6
25.4
MFO107-S12
1
0
12
39.2
MFO107-S18
1
0
18
53
MFO107-S24
1
0
24
66.8
Products can be customized, please contact customer service for more slip ring models.
