Standard series PART# Explanation
Product Quality Level Table
Products Level Code
Max speed
Working Life
Contact Material
VC
150RPM
10Million Revs.
Precious Metal
VD
600RPM
20Million Revs.
Gold-plated
Specification
Ethernet Specification
Mechanical data
Parameter
Value
Parameter
Value
100M/1000M
2
Working Life
See Prod Quality Level
Connector
RJ45
Rotating Speed
See Prod Quality Level
BER Error rate
10E-11
Working Temp.
-30℃~80℃
Electrical data
Operating Humidity
0~85% RH
Parameter
Value
Contact Material
See Prod Quality Level
Power
Signal
Housing Material
Aluminium Alloy
Rated Voltage
0~440VAC/VDC
0~440VAC/VDC
Torque
0.1N.m;+0.03/6ring
Insulation Res
≥1000MΩ/500VDC
≥1000MΩ/500VDC
Protection grade
IP51
Lead Wires
AWG16#Teflon
AWG22#Teflon
Lead Length
Standard 300mm
Dielectric Strength
500VAC@50Hz，60s
Res Noise
<0.01Ω
Part List
Dimension
Installing
Options
Customized
Case-Study
Price

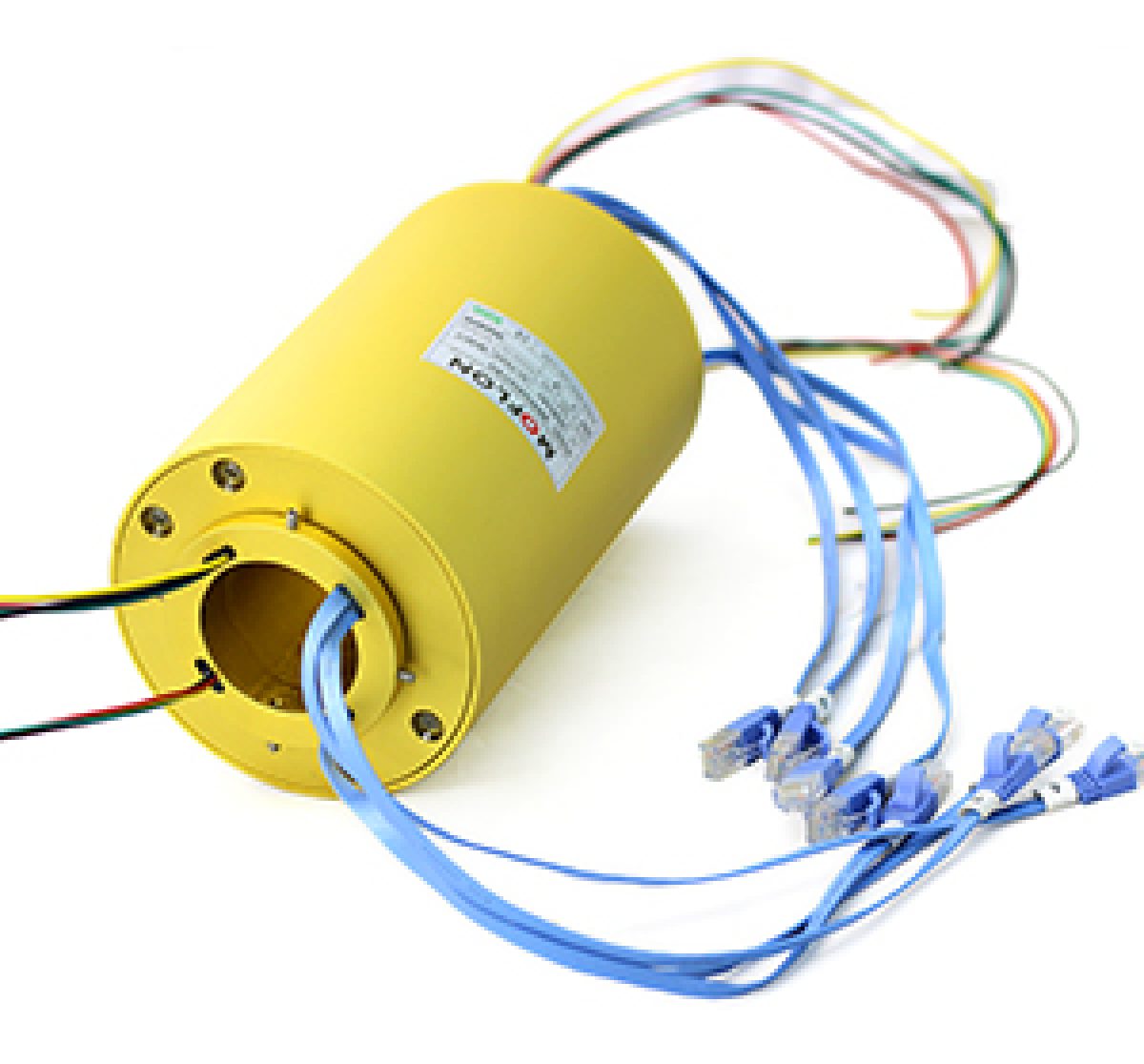

ME2502 – 2Series Ethernet Slip Ring
Part#
1000M
Ethernet
10A
20A
Signal
/5A
Length
(mm)
Part#
1000M
Ethernet
10A
20A
Signal
/5A
Length
(mm)
ME2502-S02
2
0
0
0
96.8
ME2502-P0410-S14
2
4
0
14
169.2
ME2502-S06
2
0
0
6
120
ME2502-P1010-S08
2
10
0
8
169.2
ME2502-P0610
2
6
0
0
120
ME2502-P1410-S04
2
14
0
4
169.2
ME2502-P0420
2
0
4
0
120
ME2502-P1810
2
18
0
0
169.2
ME2502-P0410-S02
2
4
0
2
120
ME2502-P0610-S24
2
6
0
24
217.4
ME2502-S12
2
0
0
12
142.4
ME2502-P1210-S18
2
12
0
18
217.4
ME2502-P0610-S06
2
6
0
6
142.4
ME2502-S30
2
0
0
30
217.4
ME2502-P0410-S08
2
4
0
8
142.4
ME2502-P0610-S32
2
6
0
32
263
ME2502-P0810-S04
2
8
0
4
142.4
ME2501-P1210-S26
2
12
0
26
263
ME2502-P1210
2
12
0
0
142.4
ME2502-S38
2
0
0
38
263
ME2502-S18
2
0
0
18
169.2
1）10A，20A，5A can be combined in any way，we'd pleased to help if need higher than 2A
