Standard series PART# Explanation
Product Quality Level Table
Products Level Code
Max speed
Working Life
Contact Material
VC
150RPM
10Million Revs.
Precious Metal
VD
600RPM
20Million Revs.
Gold-plated
Specification
Ethernet Specification
Mechanical data
Parameter
Value
Parameter
Value
100M/1000M
1
Working Life
See Prod Quality Level
Connector
RJ45
Rotating Speed
See Prod Quality Level
BER Error rate
10E-11
Working Temp.
-30℃~80℃
Electrical data
Operating Humidity
0~85% RH
Parameter
Value
Contact Material
See Prod Quality Level
Power
Signal
Housing Material
Aluminium Alloy
Rated Voltage
0~440VAC/VDC
0~440VAC/VDC
Torque
0.1N.m;+0.03/6ring
Insulation Res
≥1000MΩ/500VDC
≥1000MΩ/500VDC
Protection grade
IP51
Lead Wires
AWG16#Teflon
AWG22#Teflon
Lead Length
Standard 300mm
Dielectric Strength
500VAC@50Hz，60s
Res Noise
<0.01Ω
Part List
Dimension
Installing
Options
Customized
Case-Study
Price

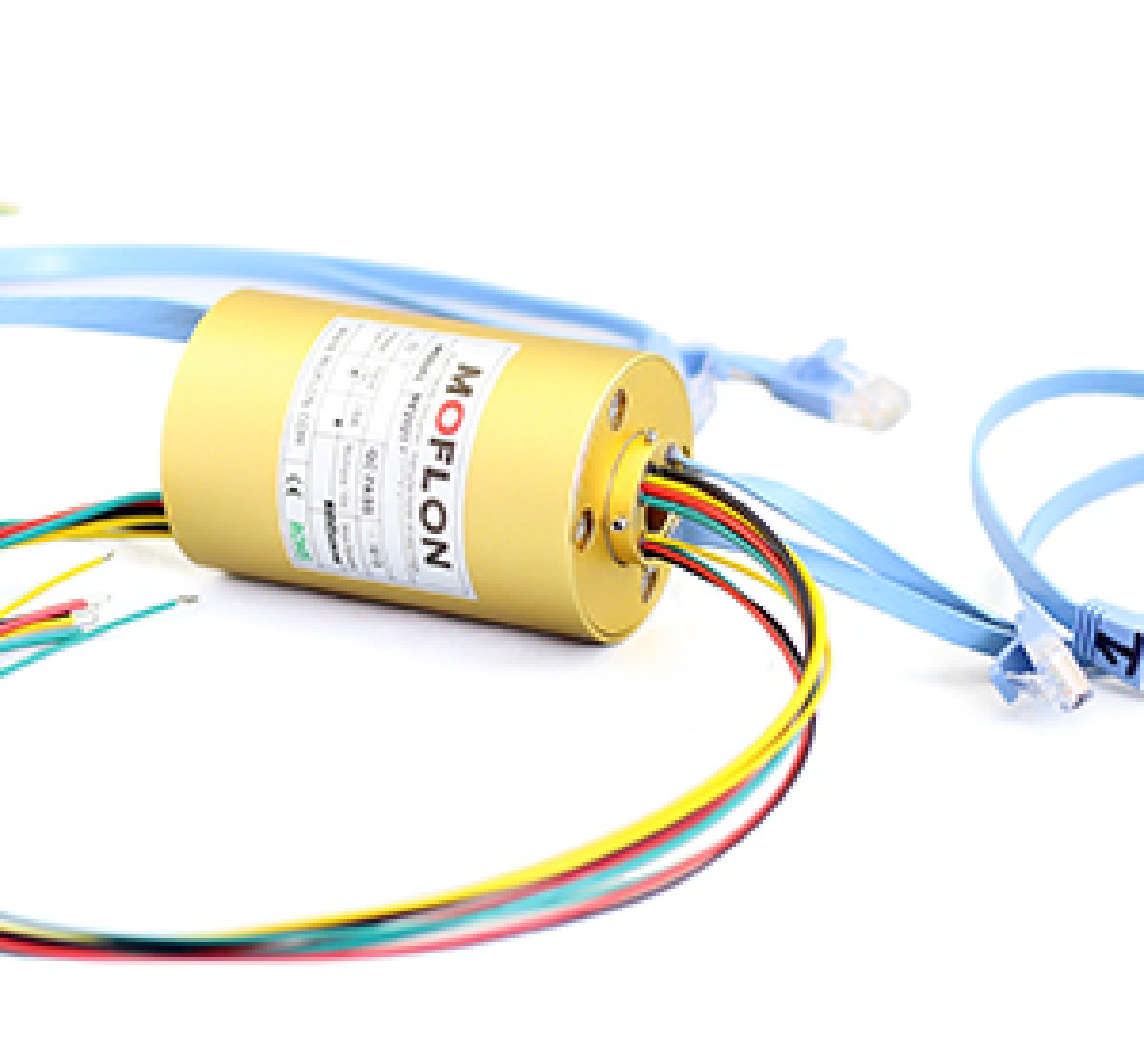

ME2501 Series Ethernet Slip Ring
Part#
1000M
Ethernet
10A
20A
Signal
/5A
Length
(mm)
Part#
1000M
Ethernet
10A
20A
Signal
/5A
Length
(mm)
ME2501-S03
1
0
0
4
74
ME2501-P1010-S05
1
8
0
8
120
ME2501-P0310
1
4
0
0
74
ME2501-S21
1
0
0
22
142.4
ME2501-P0420
1
0
4
0
96.8
ME2501-P0410-S17
1
4
0
18
142.4
ME2501-S09
1
0
0
10
96.8
ME2501-P1010-S11
1
22
0
0
142.4
ME2501-P0210-S07
1
2
0
8
96.8
ME2501-P2110
1
6
0
22
165.2
ME2501-P0410-S05
1
6
0
4
96.8
ME2501-P0610-S21
1
6
0
34
210.8
ME2501-P0610-S03
1
0
0
16
120
ME2501-P0610-S33
1
0
0
40
210.8
ME2501-P0910
1
16
0
0
120
ME2501-P1210-S27
1
6
0
40
233.6
ME2501-S15
1
4
0
12
120
ME2501-S39
1
0
0
46
233.6
ME2501-P1510
1
0
0
16
120
ME2501-P0610-S40
1
0
0
40
210.8
ME2501-P0410-S11
1
16
0
0
120
ME2501-S46
1
6
0
40
233.6
ME2501-P0810-S06
1
4
0
12
120
1）10A，20A，5A can be combined in any way，we'd pleased to help if need higher than 2A
