Standard series PART# Explanation
Product Quality Level Table
Products Level Code
Max speed
Working Life
Contact Material
VC
150RPM
10Million Revs.
Precious Metal
VD
600RPM
20Million Revs.
Gold-plated
Specification
Ethernet Specification
Mechanical data
Parameter
Value
Parameter
Value
100M/1000M
2
Working Life
See Prod Quality Level
Connector
RJ45
Rotating Speed
See Prod Quality Level
BER Error rate
10E-11
Working Temp.
-30℃~80℃
Electrical data
Operating Humidity
0~85% RH
Parameter
Value
Contact Material
See Prod Quality Level
Power
Signal
Housing Material
Aluminium Alloy
Rated Voltage
0~440VAC/VDC
0~440VAC/VDC
Torque
0.1N.m;+0.03/6ring
Insulation Res
≥1000MΩ/500VDC
≥1000MΩ/500VDC
Protection grade
IP51
Lead Wires
AWG17#Teflon
AWG22#Teflon
Lead Length
Standard 300mm
Dielectric Strength
500VAC@50Hz，60s
Res Noise
<0.01Ω
Part List
Dimension
Installing
Options
Customized
Case-Study
Price

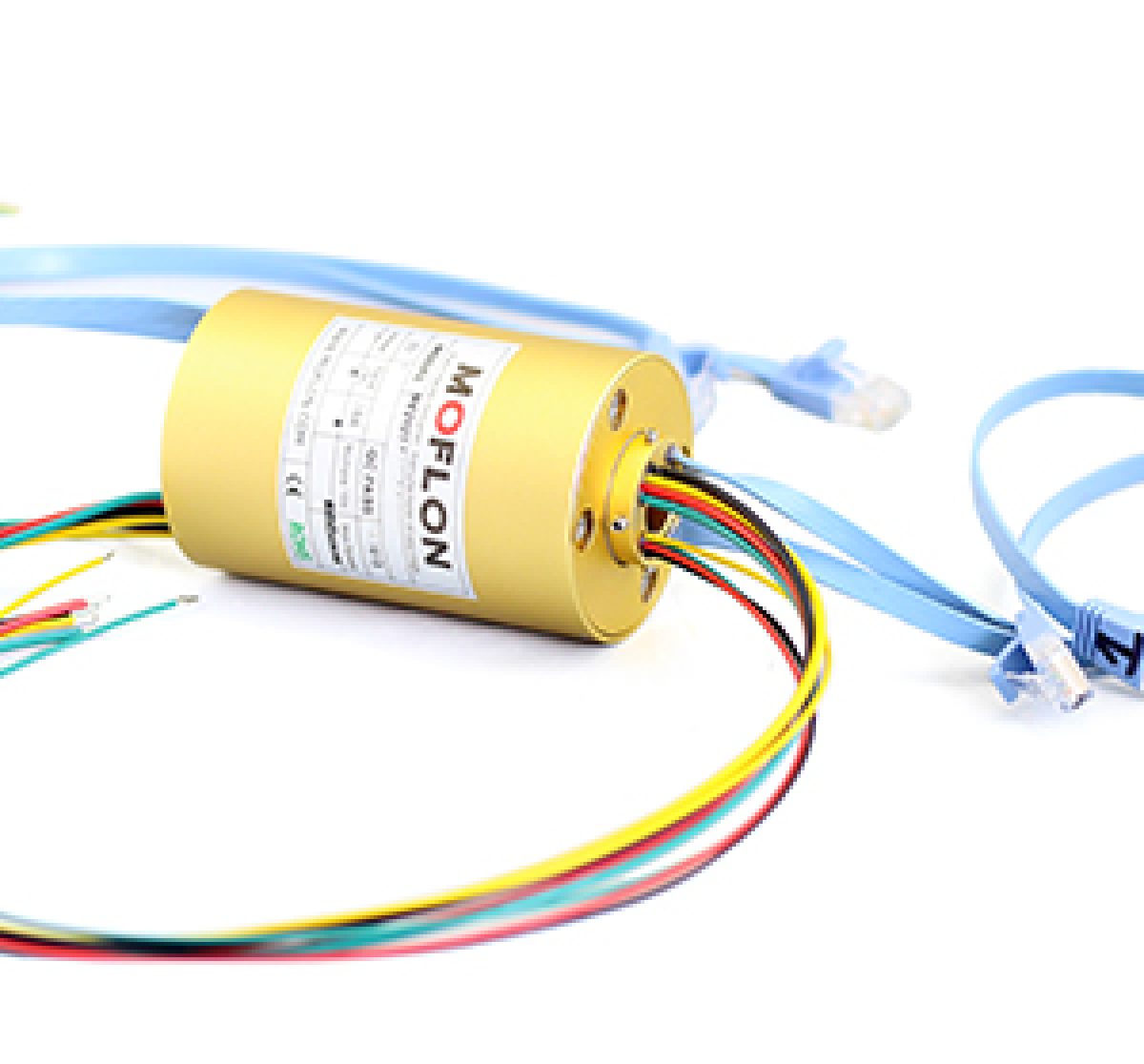

ME2202 – 2Series Ethernet Slip Ring
Part#
1000M
Ethernet
10A
20A
Signal
/5A
Length
(mm)
Part#
1000M
Ethernet
10A
20A
Signal
/5A
Length
(mm)
ME2202
2
0
0
0
86
ME2202-P0410-S08
2
4
0
8
126.8
ME2202-P0420
2
0
4
0
106.4
ME2202-P0610-S06
2
6
0
6
126.8
ME2202-S06
2
0
0
6
106.4
ME2202-P1010-S02
2
10
0
2
126.8
ME2202-P0610
2
6
0
0
106.4
ME2202-S18
2
0
0
18
150.2
ME2202-P0210-S04
2
2
0
4
106.4
ME2202-S24
2
0
0
24
170.6
ME2202-P0410-S02
2
4
0
2
106.4
ME2202-S30
2
0
0
30
191
ME2202-S12
2
0
0
12
126.8
