Standard series PART# Explanation
Product Quality Level Table
Products Level Code
Max speed
Working Life
Contact Material
VC
150RPM
10Million Revs.
Precious Metal
VD
600RPM
20Million Revs.
Gold-plated
Specification
Ethernet Specification
Mechanical data
Parameter
Value
Parameter
Value
100M/1000M
1
Working Life
See Prod Quality Level
Connector
RJ45
Rotating Speed
See Prod Quality Level
BER Error rate
10E-11
Working Temp.
-30℃~80℃
Electrical data
Operating Humidity
0~85% RH
Parameter
Value
Contact Material
See Prod Quality Level
Power
Signal
Housing Material
Aluminium Alloy
Rated Voltage
0~440VAC/VDC
0~440VAC/VDC
Torque
0.1N.m;+0.03/6ring
Insulation Res
≥1000MΩ/500VDC
≥1000MΩ/500VDC
Protection grade
IP51
Lead Wires
AWG17#Teflon
AWG22#Teflon
Lead Length
Standard 300mm
Dielectric Strength
500VAC@50Hz，60s
Res Noise
<0.01Ω
Part List
Dimension
Installing
Options
Customized
Case-Study
Price

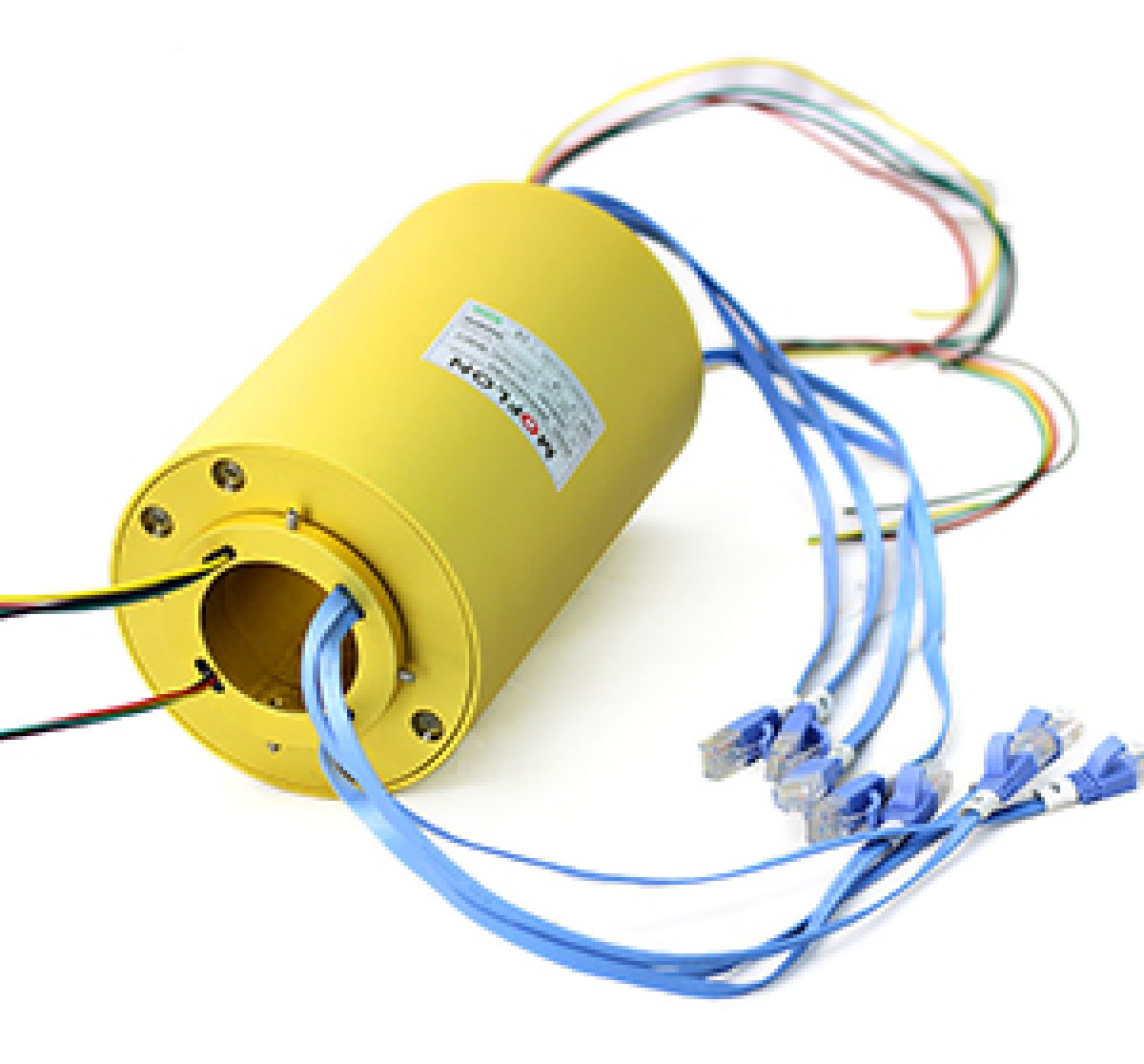

ME2201 – 1Series Ethernet Slip Ring
Part#
1000M
Ethernet
10A
20A
Signal
/5A
Length
(mm)
Part#
1000M
Ethernet
10A
20A
Signal
/5A
Length
(mm)
ME2201-S03
1
0
0
3
65.6
ME2201-P0410-S11
1
4
0
11
106.4
ME2201-P0310
1
3
0
0
65.6
ME2201-P0610-S09
1
6
0
9
106.4
ME2201-P0420
1
0
4
0
86
ME2201-P0810-S07
1
8
0
7
106.4
ME2201-S09
1
0
0
9
86
ME2201-P1010-S05
1
10
0
5
106.4
ME2201-P0210-S07
1
2
0
7
86
ME2201-P1210-S03
1
12
0
3
106.4
ME2201-P0410-S05
1
4
0
5
86
ME2201-S21
1
0
0
21
126.8
ME2201-P0610-S03
1
6
0
3
86
ME2201-S27
1
0
0
27
150.2
ME2201-S15
1
0
0
15
106.4
ME2201-S33
1
0
0
33
170.6
ME2201-P0210-S13
1
2
0
13
106.4
What is rotary joint electrical connector,rotatable electrical connector? rotary joint electrical connector is a slip ring used to transfer ethernet and power or signal from a stationary part to a rotating part, preserving and isolating the electrical connection. rotatable electrical connector is a connector used to transfer ethernet and power or signal from a stationary part to a rotating part, preserving and isolating the electrical connection when rotating…
