Standard series PART# Explanation
Product Quality Level Table
The difference between MC330 and MC3309:
Part#
Max speed
Working life
Torque
Housing Material
Electrical noise①@10Rpm
MC330
250RPM
>5 million Revs
0.02 N·m
Plastics
10mΩ
MC3309
1000RPM
>20 million Revs
0.005 N·m
Metal
4mΩ
Specification
Mechanical data
Electrical data
Parameter
Value
Parameter
Value
Working Life
See Prod Quality Level
Power
Signal
Rotating Speed
See Prod Quality Level
Rated Voltage
0~220VAC/VDC
0~120VAC/VDC
Working Temp.
-30℃~80℃
Insulation Res
≥100MΩ/220VDC
≥100MΩ/150VDC
Operating Humidity
0~85% RH
Lead Wires
AWG#28
AWG#28
Contact Material
See Prod Quality Level
Lead Length
Standard 300mm
Housing Material
See Prod Quality Level
Dielectric Strength
500VAC@50Hz,60s
Torque
0.05N.m˙+0.01/1ring
Res Noise
<0.01Ω
Protection grade
IP51
Part List
Dimension
Installing
Options
Customized
Case-Study
Price

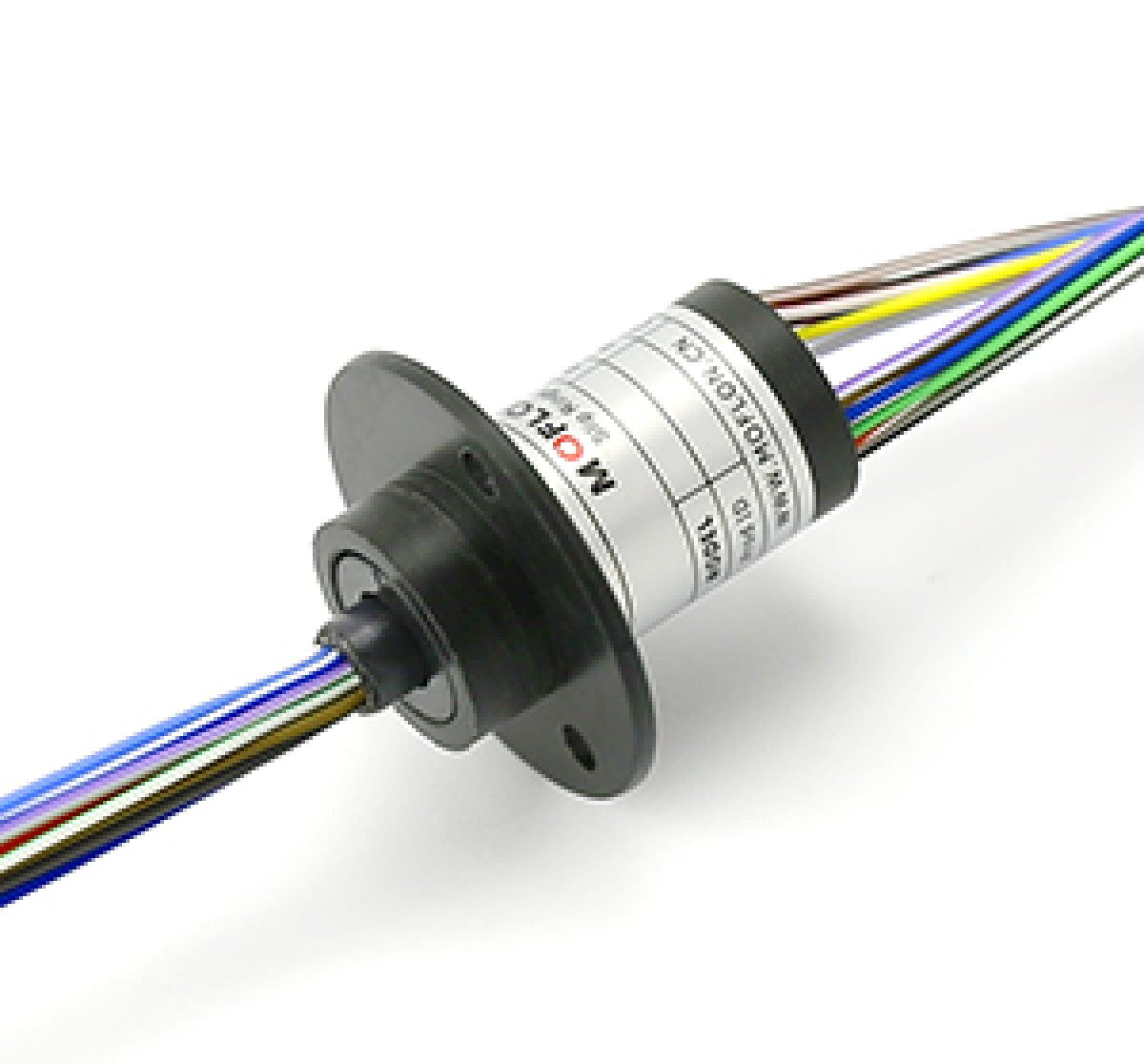

MC330 Series Parts# List
Part#
Signal/2A
4A
8A
15A
Total Wires
MC330
18
0
0
0
18
MC330-P0604-S06
6
6
0
0
12
MC330-P0308-S06
6
0
3
0
9
MC330-P0408-S02
2
0
4
0
6
MC330-P0215
0
0
0
2
2
If you have special requirements about slip ring contacts, please contact us.
