Standard series PART# Explanation
Product Quality Level Table

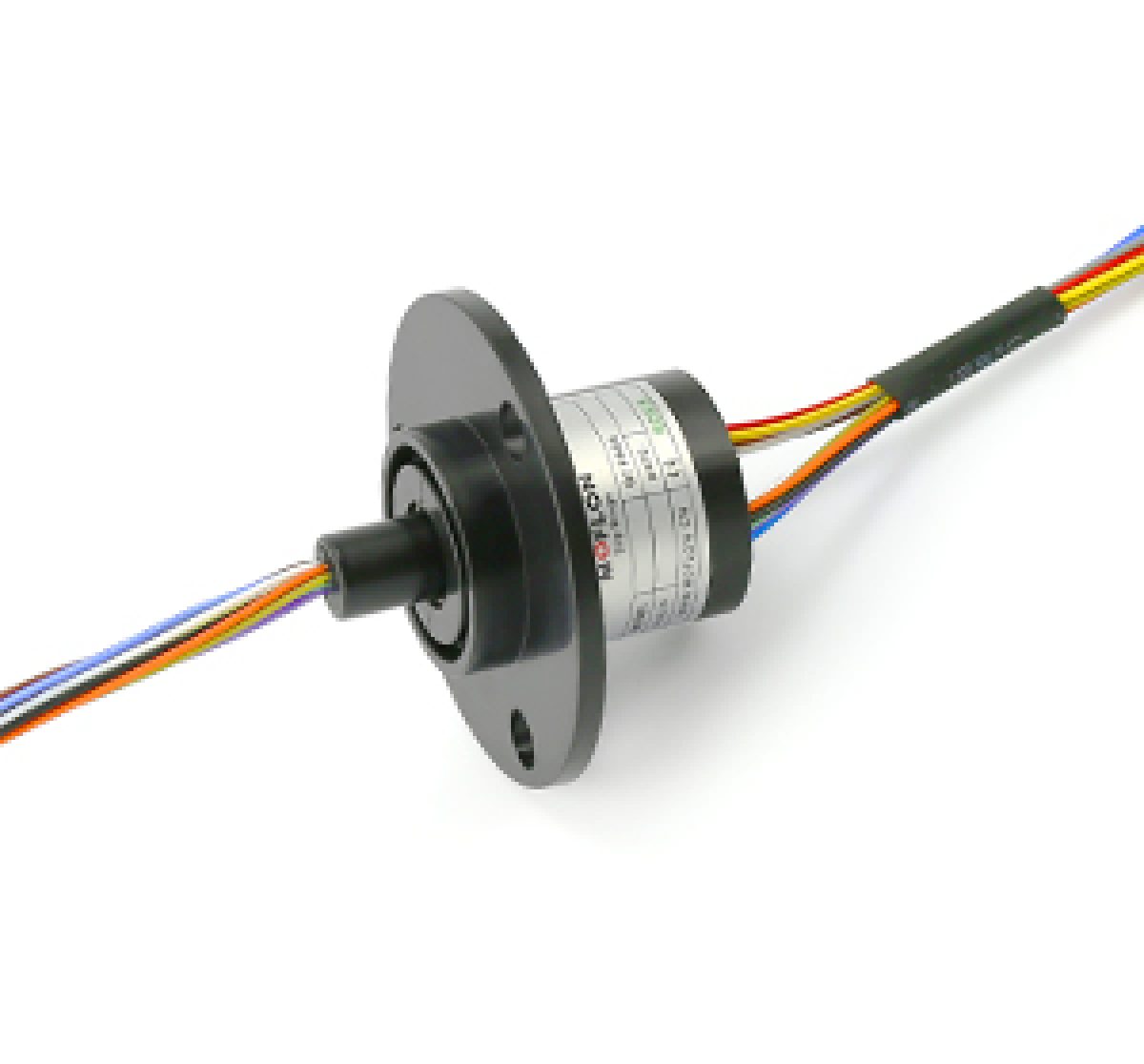

The difference between MC260 and MC2609:
Part#
Max speed
Working life
Torque
Housing Material
Electrical noise①@10Rpm
MC260
250RPM
>5 million Revs
0.02 N·m
Plastics
10mΩ
MC2609
1000RPM
>20 million Revs
0.005 N·m
Metal
4mΩ
Specifications of Electric Slip Rings
Mechanical data
Electrical data
Parameter
Value
Parameter
Value
Working Life
See Prod Quality Level
Power
Signal
Rotating Speed
See Prod Quality Level
Rated Voltage
0~220VAC/VDC
0~220VAC/VDC
Working Temp.
-30℃~80℃
Insulation Res
≥100MΩ/220VDC
≥100MΩ/150VDC
Operating Humidity
0~85% RH
Lead Wires
AWG#28
AWG#28
Contact Material
See Prod Quality Level
Lead Length
Standard 300mm
Housing Material
See Prod Quality Level
Dielectric Strength
500VAC@50Hz,60s
Torque
0.05N.m˙+0.01/1ring
Res Noise
<0.01Ω
Protection grade
IP51
Part List
Dimension
Installing
Options
Customized
Case-Study
Price
MC260 Series Parts# List
Part#
Signal/2A
4A
8A
15A
Total Wires
MC260
12
0
0
0
12
MC260-P0304-S06
6
3
0
0
9
MC260-P0208-S02
2
2
2
0
4
MC260-P0308
0
0
3
0
3
MC260
MC260-FL01
MC260-FL02
MC260-FL03
MC260-FL04
MC260-FL05
MC260-FL06
MC260-FL07
What is electric slip ring?
Electric slip ring is a special electrical unit which can get power/signal passed from stationary part to rotating part when 360°continually rotating, at the same time, all circuits are not twisted. moflon supply full range of electric sip rings for arcade machines,car wash equipment,irrigation equipment,storage silos,hydraulic swivels,electric reels,industrial cable reels,antennas,cctv cameras & monitors,flight simulators,military defense equipment,medical and health care products.
