Standard series PART# Explanation
Product Quality Level Table
Products Level Code
Max speed
Working Life
Contact Material
VC
200RPM
15Million Revs.
Precious Metal
VD
600RPM
80Million Revs.
Precious Metal
VH
1000RPM
150 Million Revs
Gold-plated
Specification
Mechanical data
Electrical data
Parameter
Value
Parameter
Value
Working Life
See Prod Quality Level
Power
Signal
Rotating Speed
See Prod Quality Level
Rated Voltage
0~440VAC/VDC
0~440VAC/VDC
Working Temp.
-30℃~80℃
Insulation Res
≥1000MΩ/500VDC
≥1000MΩ/500VDC
Operating Humidity
0~85% RH
Lead Wires
AWG16#Teflon
AWG22#Teflon or bus cable
Contact Material
See Prod Quality Level
Lead Length
Standard 300mm
Housing Material
Aluminium Alloy
Dielectric Strength
500VAC@50Hz，60s
Torque
0.1N.m;+0.03/6ring
Res Noise
<0.01Ω
Protection grade
IP51
Part List
Dimension
Installing
Options
Customized
Case-Study
Price

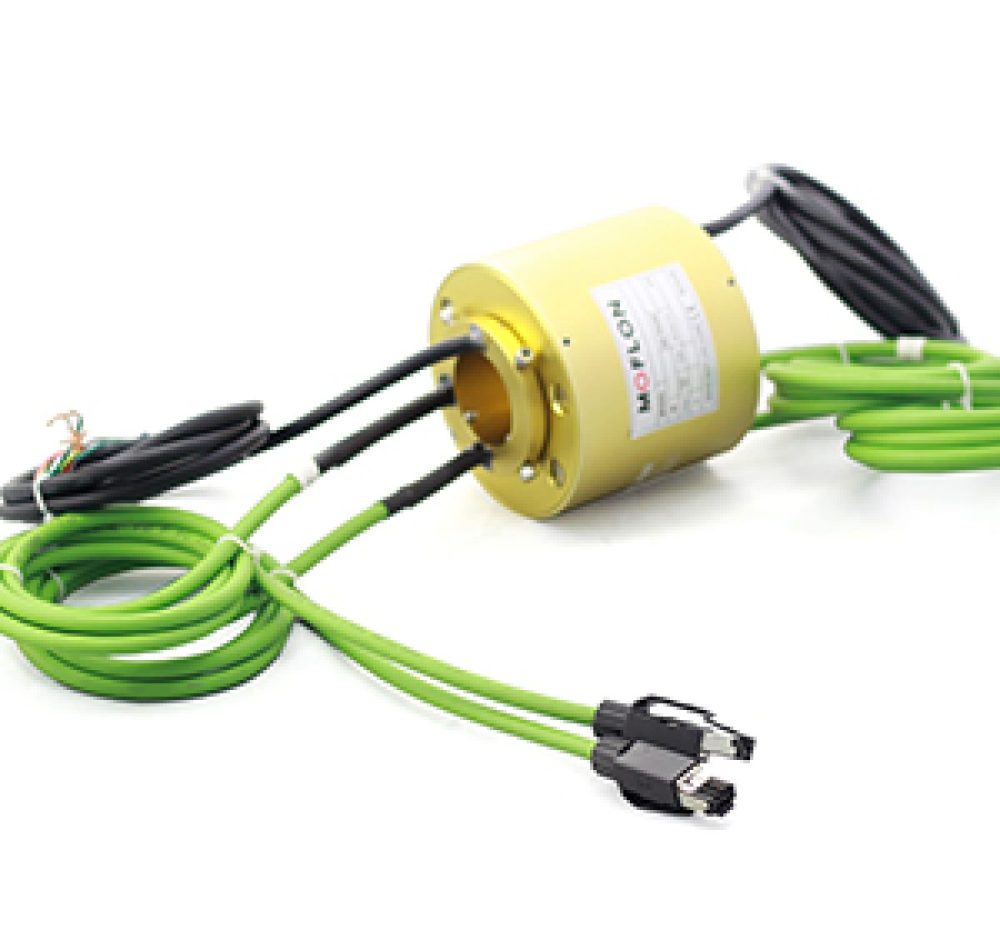

MB500 Series Industry Field-Bus Slip Rings Part List Table
Part#
10A
Signal/5A
Num
Type
Length(mm)
MB500-01P
0
0
1
Profibus
51.2
MB500-01E
0
0
1
EtherCAT
51.2
MB500-01C
0
0
1
CANBUS
51.2
MB500-01N
0
0
1
CANOPEN
51.2
MB500-01D
0
0
1
DeviceNET
51.2
MB500-01K
0
0
1
CC-LINK
51.2
MB500-01F
0
0
1
ProfiNET
51.2
MB500-P0610-S06-01P
6
6
1
Profibus
96.8
MB500-P0610-S06-01E
6
6
1
EtherCAT
96.8
MB500-P0610-S06-01C
6
6
1
CANBUS
96.8
MB500-P0610-S06-01N
6
6
1
CANOPEN
96.8
MB500-P0610-S06-01D
6
6
1
DeviceNET
96.8
MB500-P0610-S06-01K
6
6
1
CC-LINK
96.8
MB500-P0610-S06-01F
6
6
1
ProfiNET
96.8
If you have special requirements, please contact customer service.
