Standard series PART# Explanation
Product Quality Level Table
Products Level Code
Max speed
Working Life
Sealing Element
VC
100RPM
10Million Revs.
Common Seals
VD
300RPM
30Million Revs.
High-Quality Seals
Specification
Rotary Union Specifications
Mechanical data
Parameter
Value
Parameter
Value
Passage
6 in 6 out
Working Life
See Prod Quality Level
Max.
10MPa，Vacuum 0.01torr
Rotating Speed
See Prod Quality Level
Torque
Consult technician about details
Working Temp.
-30℃~80℃
Electrical data
Operating Humidity
0~85% RH
Parameter
Value
Contact Material
Precious Metal
Power
Signal
Housing Material
Aluminium Alloy
Rated Voltage
0~240VAC/VDC
0~240VAC/VDC
Protection grade
IP51
Insulation Res
≥1000MΩ/500VDC
≥1000MΩ/500VDC
Lead Wires
AWG28#Teflon
AWG28#Teflon
Lead Length
Standard 300mm
Dielectric Strength
500VAC@50Hz，60s
Res Noise
<0.01Ω
Part List
Dimension
Installing
Options
Customized
Case-Study
Price

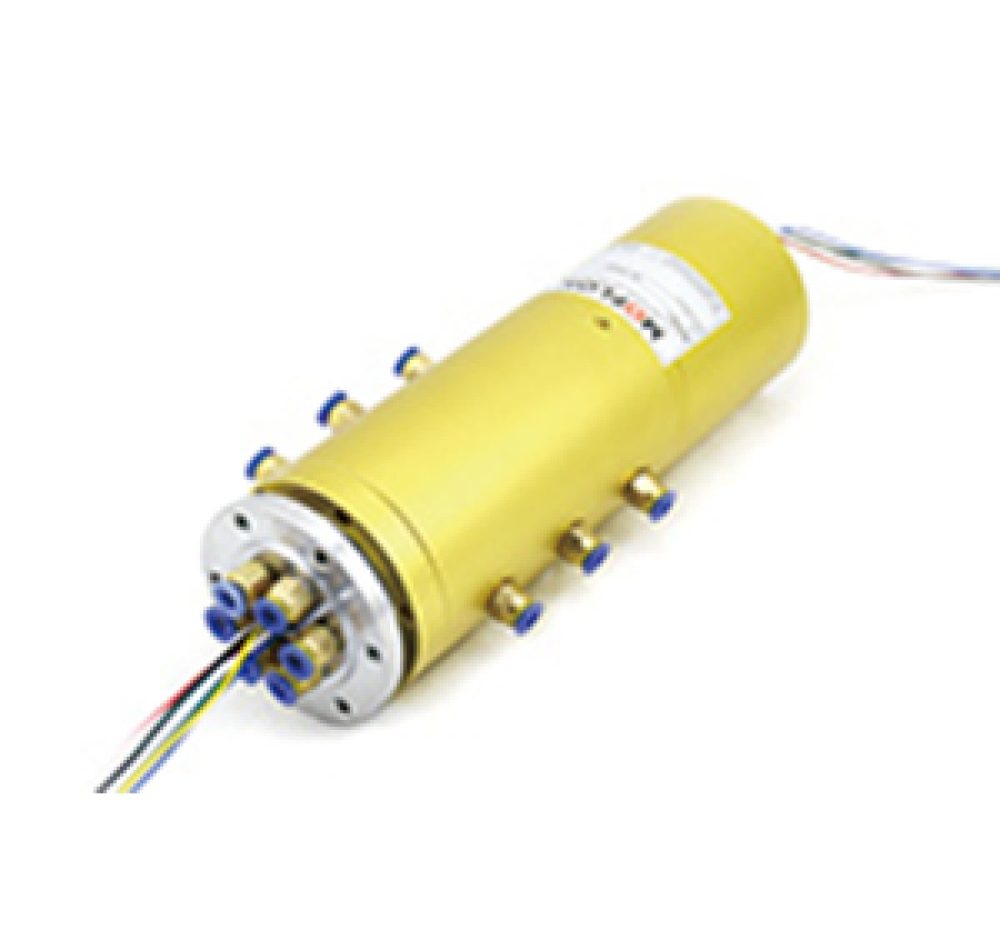

MAPH600S-01 (6 passages M5)
MAPH600S-02 (6 passages G1/8")
MAPH600S-03 (6 passages G1/4")
MAPH600S-XX series
1）XX=01,Connection size=M5， Pipe size3~6mm
2）XX=02,Connection size=G1/8，Pipe size3~10mm
3）XX=03,Connection size=G1/4，Pipe size3~12mm
Part#
Passages
10A
Signal/5A
Length
(mm)
MAPH600S-XX-S06
6 in 6 out
0
6
19
MAPH600S-XX-S12
6 in 6 out
0
12
26
MAPH600S-XX-S18
6 in 6 out
0
18
33
MAPH600S-XX-S24
6 in 6 out
0
24
43.6
MAPH600S-XX-S36
6 in 6 out
0
36
57.3
MAPH600S-XX-S56
6 in 6 out
0
56
85.7
10A and Signal(5A) can be combined in any way as you need，Max.Ring:96 rings,Can be customized based on standard slip rings，Please contact us.
