Standard series PART# Explanation
Product Quality Level Table
Products Level Code
Max speed
Working Life
Sealing Element
VC
100RPM
10Million Revs.
Common Seals
VD
300RPM
30Million Revs.
High-Quality Seals
Specification
Rotary Union Specifications
Mechanical data
Parameter
Value
Parameter
Value
Passage
2 in 2 out
Working Life
See Prod Quality Level
Max.
10MPa，Vacuum 0.01torr
Rotating Speed
See Prod Quality Level
Torque
Consult technician about details
Working Temp.
-30℃~80℃
Electrical data
Operating Humidity
0~85% RH
Parameter
Value
Contact Material
Precious Metal
Power
Signal
Housing Material
Aluminium Alloy
Rated Voltage
0~440VAC/VDC
0~440VAC/VDC
Protection grade
IP51
Insulation Res
≥1000MΩ/500VDC
≥1000MΩ/500VDC
Lead Wires
AWG17#Teflon
AWG22#Teflon
Lead Length
Standard 300mm
Dielectric Strength
500VAC@50Hz，60s
Res Noise
<0.01Ω
Part List
Dimension
Installing
Options
Customized
Case-Study
Price
MAPH200F-01
MAPH200F-02
MAPH200F-03
MAPH200F-04
MAPH200F-05

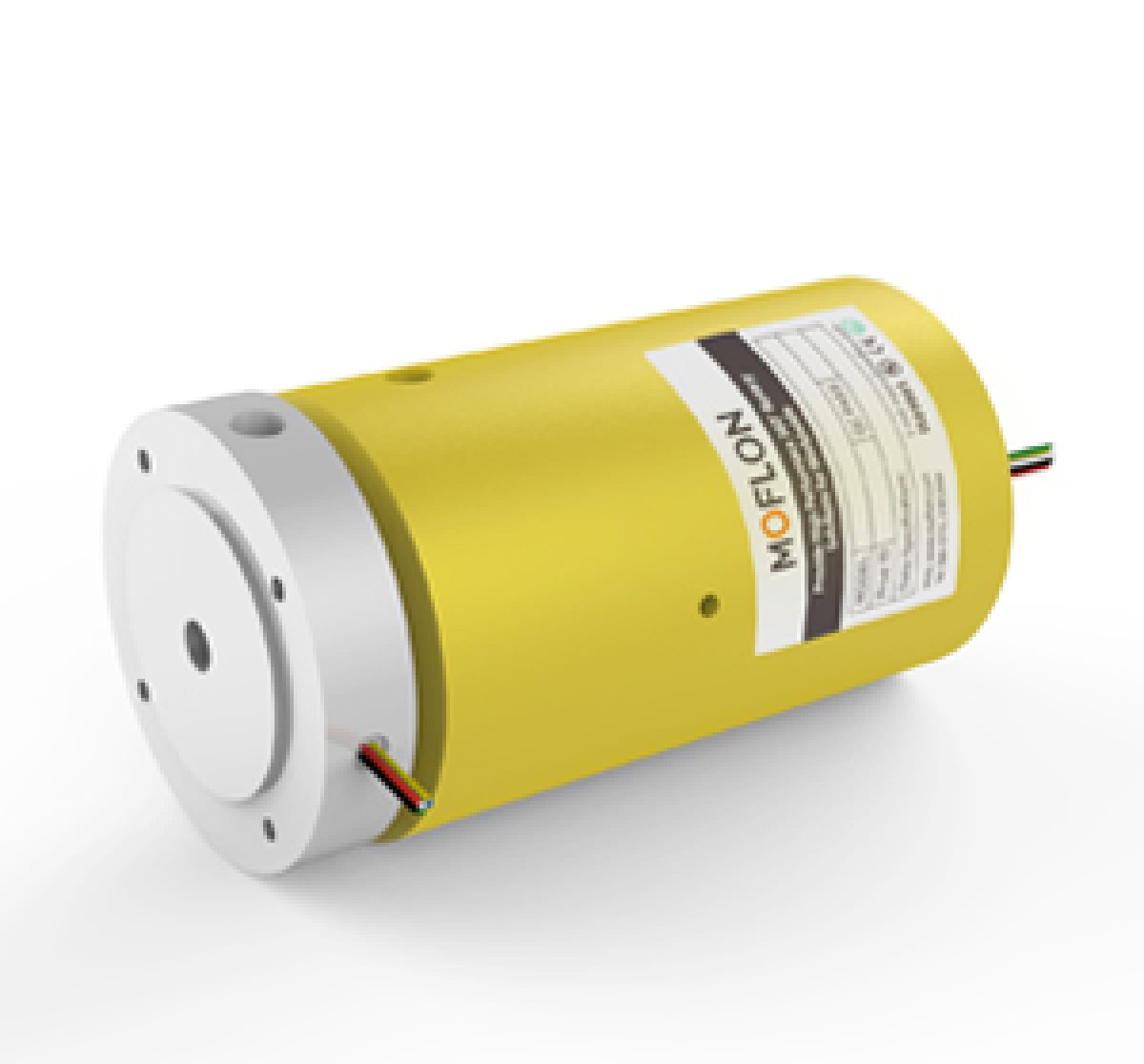

MAPH200F-XX Pnuematic/Hydraulic Hybrid Slip Ring
1）XX=01,Connection size=M5， Tube size3~6mm 2）XX=02,Connection size=G1/8，Tube size3~10mm
3）XX=03,Connection size=G1/4，Tube size3~12mm 4）XX=04,Connection size=G3/8，Tube size3~16mm
5）XX=05,Connection size=G1/2，Tube size3~20mm
Part#
Passages
10A
Signal/5A
Length(mm)
Part#
Passages
10A
Signal/5A
Length(mm)
MAPH200F-XX-S06
2 in 2 out
0
6
38
MAPH200F-XX-P0810-S10
2 in 2 out
8
10
71.6
MAPH200F-XX-P0210-S04
2 in 2 out
2
4
38
MAPH200F-XX-P1010-S08
2 in 2 out
10
8
71.6
MAPH200F-XX-P0410-S02
2 in 2 out
4
2
38
MAPH200F-XX-P1210-S06
2 in 2 out
12
6
71.6
MAPH200F-XX-P0610
2 in 2 out
6
0
38
MAPH200F-XX-P1410-S04
2 in 2 out
14
4
71.6
MAPH200F-XX-S12
2 in 2 out
12
0
54.8
MAPH200F-XX-P1610-S02
2 in 2 out
16
2
71.6
MAPH200F-XX-P0210-S10
2 in 2 out
2
10
54.8
MAPH200F-XX-S24
2 in 2 out
0
24
88.4
MAPH200F-XX-P0310-S09
2 in 2 out
3
9
54.8
MAPH200F-XX-P0410-S20
2 in 2 out
4
20
88.4
MAPH200F-XX-P0610-S06
2 in 2 out
6
6
54.8
MAPH200F-XX-P0610-S18
2 in 2…
