Standard series PART# Explanation
Product Quality Level Table
Products Level Code
Max speed
Working Life
Sealing Element
VC
100RPM
10Million Revs.
Common Seals
VD
300RPM
30Million Revs.
High-Quality Seals
Specification
Rotary Union Specifications
Mechanical data
Parameter
Value
Parameter
Value
Passage
16 in 16 out
Working Life
See Prod Quality Level
Max.
10MPa，Vacuum 0.01torr
Rotating Speed
See Prod Quality Level
Torque
Consult technician about details
Working Temp.
-30℃~80℃
Electrical data
Operating Humidity
0~85% RH
Parameter
Value
Contact Material
Precious Metal
Power
Signal
Housing Material
Aluminium Alloy
Rated Voltage
0~440VAC/VDC
0~440VAC/VDC
Protection grade
IP51
Insulation Res
≥1000MΩ/500VDC
≥1000MΩ/500VDC
Lead Wires
AWG17#Teflon
AWG22#Teflon
Lead Length
Standard 300mm
Dielectric Strength
500VAC@50Hz，60s
Res Noise
<0.01Ω
Part List
Dimension
Installing
Options
Customized
Case-Study
Price

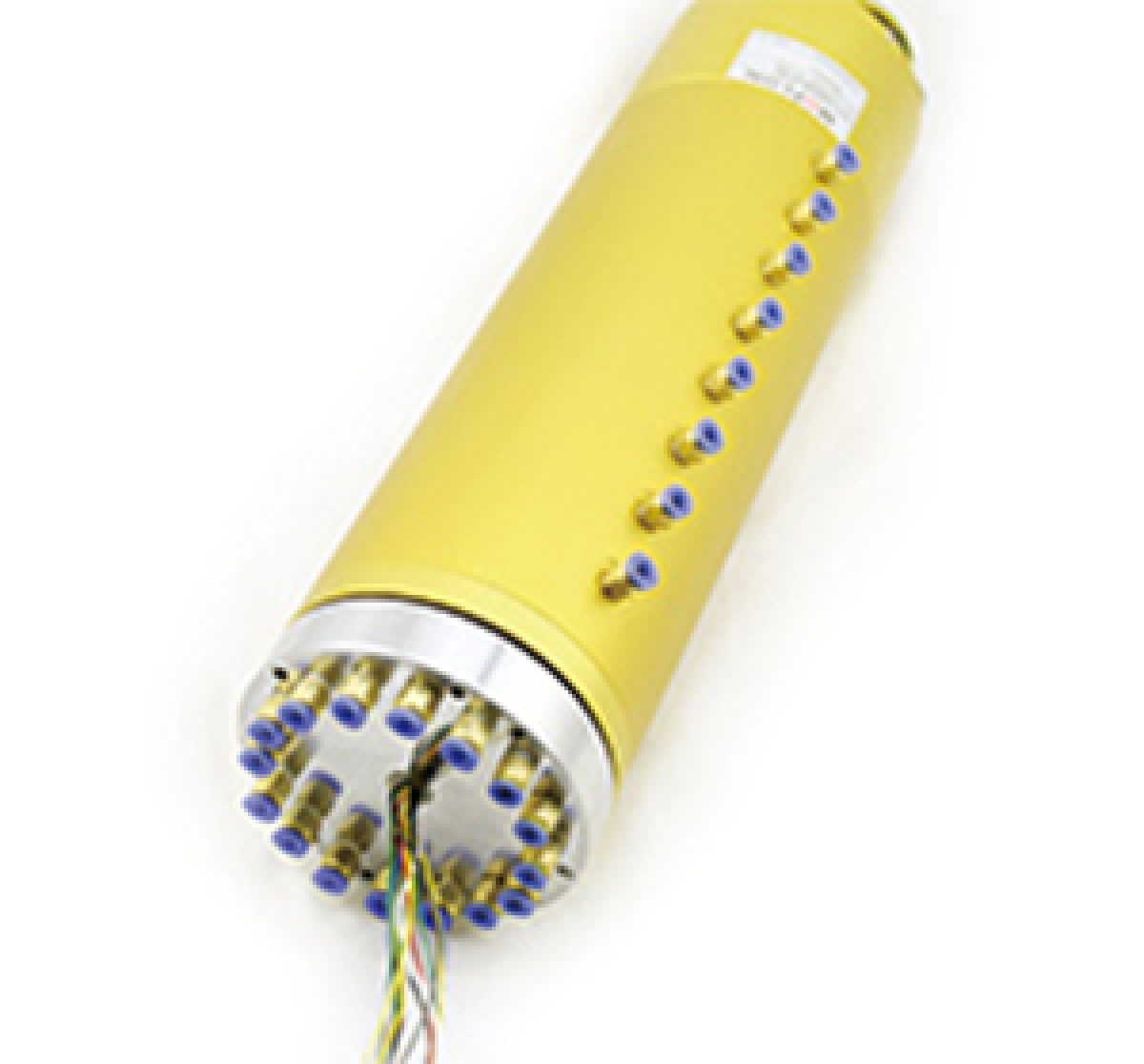

MAPH1600-01 (16 passages, M5)
MAPH1600-01 series
(Connection size=M5， Pipe size3~6mm)
Part#
Passages
10A
Signals/5A
Length
(mm)
Part#
Passages
10A
Signal/5A
Length
(mm)
MAPH1600-01-S06
16 in 16 out
0
6
38
MAPH1600-01-P0810-S10
16 in 16 out
8
10
71.6
MAPH1600-01-P0210-S04
16 in 16 out
2
4
38
MAPH1600-01-P1010-S08
16 in 16 out
10
8
71.6
MAPH1600-01-P0410-S02
16 in 16 out
4
2
38
MAPH1600-01-P1210-S06
16 in 16 out
12
6
71.6
MAPH1600-01-P0610
16 in 16 out
6
0
38
MAPH1600-01-P1410-S04
16 in 16 out
14
4
71.6
MAPH1600-01-S12
16 in 16 out
12
0
54.8
MAPH1600-01-P1610-S02
16 in 16 out
16
2
71.6
MAPH1600-01-P0210-S10
16 in 16 out
2
10
54.8
MAPH1600-01-S24
16 in 16 out
0
24
88.4
MAPH1600-01-P0310-S09
16 in 16 out
3
9
54.8
MAPH1600-01-P0410-S20
16 in 16 out
4
20
88.4
MAPH1600-01-P0610-S06
16 in 16 out
6
6
54.8
MAPH1600-01-P0610-S18
16 in 16 out
6
18
88.4
MAPH1600-01-P0810-S04
16 in 16 out
8
4
54.8
MAPH1600-01-P1210-S12
16 in 16 out
12
12
88.4
MAPH1600-01-P1010-S02
16 in 16 out
10
2
54.8
MAPH1600-01-S30
16 in 16 out
0
30
105.2
MAPH1600-01-P1210
16 in 16…
