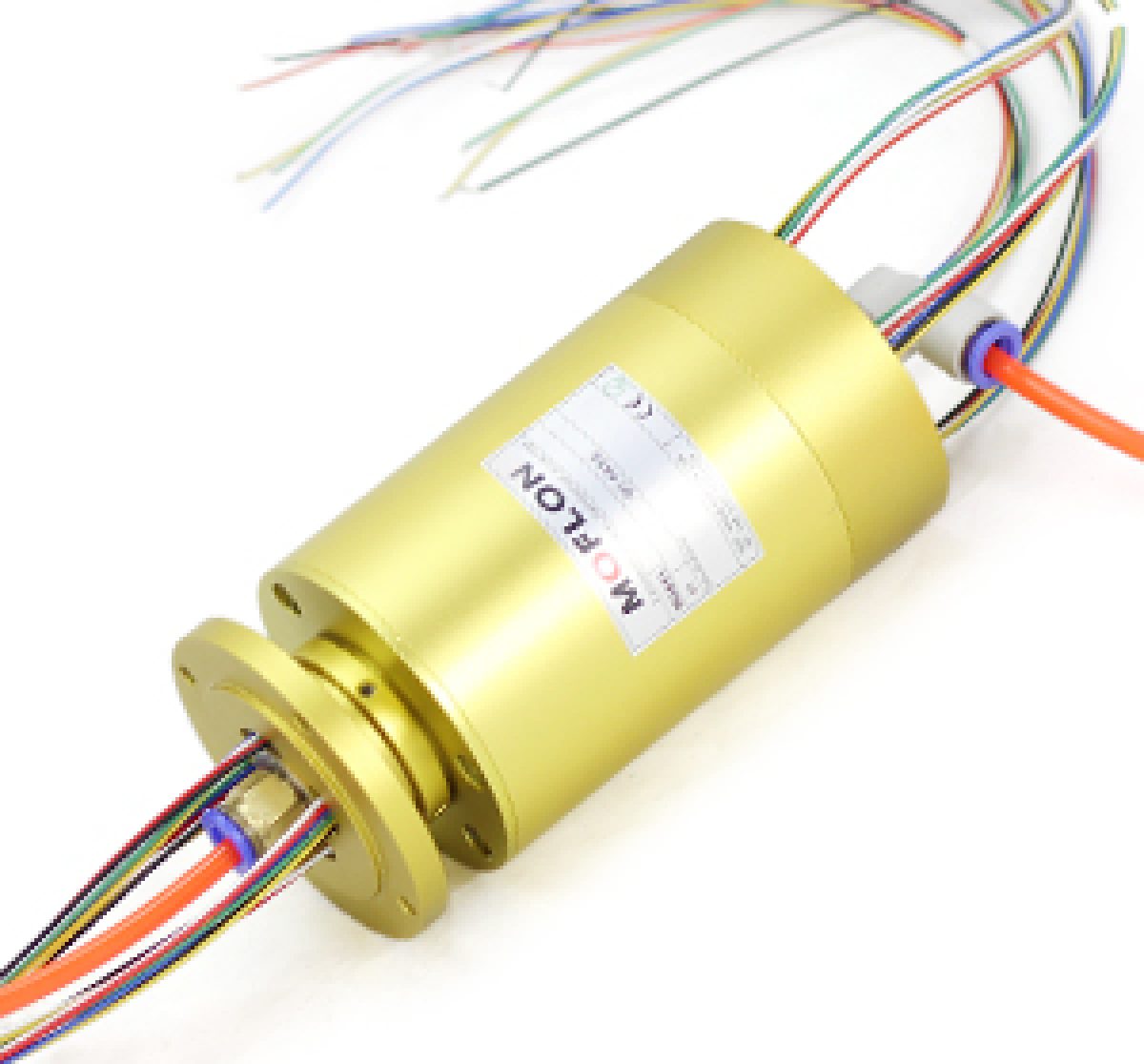

Standard series PART# Explanation
Product Quality Level Table
Products Level Code
Max speed
Working Life
Sealing Element
VC
100RPM
10Million Revs.
Common Seals
VD
300RPM
30Million Revs.
High-Quality Seals
Specification
Rotary Union Specifications
Mechanical data
Parameter
Value
Parameter
Value
Passage
1 in 1 out
Working Life
See Prod Quality Level
Max.
10MPa，Vacuum 0.01torr
Rotating Speed
See Prod Quality Level
Torque
Consult technician about details
Working Temp.
-30℃~80℃
Electrical data
Operating Humidity
0~85% RH
Parameter
Value
Contact Material
Precious Metal
Power
Signal
Housing Material
Aluminium Alloy
Rated Voltage
0~440VAC/VDC
0~440VAC/VDC
Protection grade
IP51
Insulation Res
≥1000MΩ/500VDC
≥1000MΩ/500VDC
Lead Wires
AWG16#Teflon
AWG22#Teflon
Lead Length
Standard 300mm
Dielectric Strength
500VAC@50Hz，60s
Res Noise
<0.01Ω
Part List
Dimension
Installing
Options
Customized
Case-Study
Price
MAPH100-01 1 inlet 1 outlet, M5
MAPH100-02 1 inlet 1 outlet, G1/8"
MAPH100-03 1 inlet 1 outlet, G1/4"
MAPH100-04 1 inlet 1 outlet, G3/8"
MAPH100-05 1 inlet 1 outlet, G1/2"
MAPH100-01, MAPH100-02 series
1）XX=01 Connection size M5
2）XX=02 Connection sizeG1/8
Part#
Passages
10A
Signal/5A
Length
(mm)
Part#
Passages
10A
Signal/5A
Length
(mm)
MAPH100-XX-S06
1 in 1 out
0
6
38
MAPH100-XX-P0810-S10
1 in 1 out
8
10
71.6
MAPH100-XX-P0210-S04
1 in 1 out
2
4
38
MAPH100-XX-P1010-S08
1 in 1 out
10
8
71.6
MAPH100-XX-P0410-S02
1 in 1 out
4
2
38
MAPH100-XX-P1210-S06
1 in 1 out
12
6
71.6
MAPH100-XX-P0610
1 in 1 out
6
0
38
MAPH100-XX-P1410-S04
1 in 1 out
14
4
71.6
MAPH100-XX-S12
1 in 1 out
12
0
54.8
MAPH100-XX-P1610-S02
1 in 1 out
16
2
71.6
MAPH100-XX-P0210-S10
1 in 1 out
2
10
54.8
MAPH100-XX-S24
1 in 1 out
0
24
88.4
MAPH100-XX-P0310-S09
1 in 1 out
3
9
54.8
MAPH100-XX-P0410-S20
1 in 1 out
4
20
88.4
MAPH100-XX-P0610-S06
1 in 1 out
6
6
54.8
MAPH100-XX-P0610-S18
1 in 1 out
6
18
88.4
MAPH100-XX-P0810-S04
1 in 1 out
8
4
54.8
MAPH100-XX-P1210-S12
1 in 1…
