Standard series PART# Explanation
Specification of Rotary Electrical Contact
Mechanical data
Electrical data
Parameter
Value
Parameter
Value
Working Life
100 Million Revs
Power
Signal
Rotating Speed
1~1800PRM
Rated Voltage
0~240VAC/VDC
0~240VAC/VDC
Working Temp.
-30℃~80℃
Insulation Res
≥500MΩ/500VDC
≥500MΩ/500VDC
Operating Humidity
0~85% RH
Lead Wires
AWG22Teflon
AWG22#Teflon
Contact Material
Precious Metal
Lead Length
Standard 300mm
Housing Material
Engineering Plastics
Dielectric Strength
500VAC@50Hz，60s
Torque
0.1N.m;+0.03/6ring
Res Noise
<0.03Ω
Protection grade
IP51
Part List
Dimension
Installing
Options
Customized
Case-Study
Price

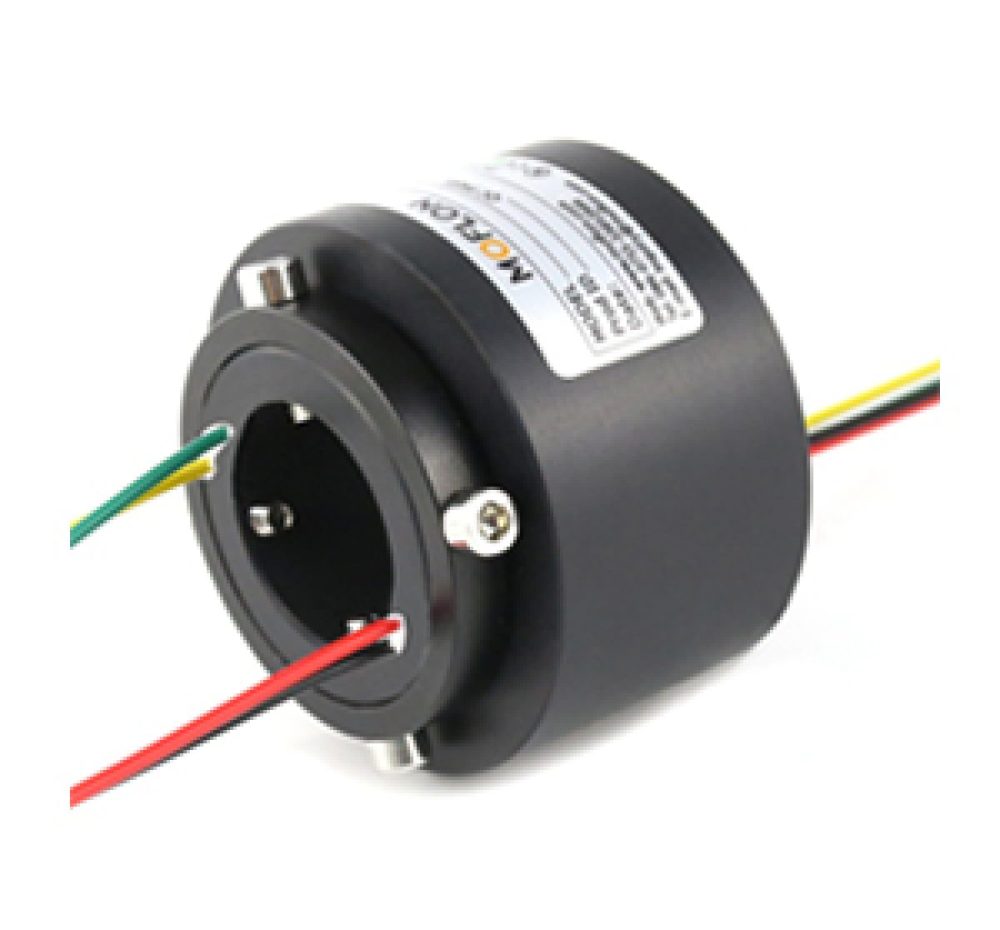

GT2045 Series Parts# List
Part#
Signal/5A
Length(mm)
GT2045-S02
2
30.4
GT2045-S03
3
30.4
GT2045-S04
4
30.4
GT2045-S06
6
30.4
GT2045-S08
8
44.2
GT2045-S10
10
44.2
GT2045-S12
12
44.2
GT2045-S14
14
58
GT2045-S16
16
58
GT2045-S18
18
58
GT2045-S20
20
71.8
GT2045-S22
22
71.8
GT2045-S24
24
71.8
What is rotary electrical contact and rotary slip ring?
Rotary electrical contact is a slip ring used to transfer power or signal from a stationary part to a rotating part, preserving and isolating the electrical connection. Rotary slip ring is a connector used to transfer power or signal from a stationary part to a rotating part, preserving and isolating the electrical connection when rotating 360°.
Moflon offer standard rotary electrical contact and rotary slip ring product lines grouped by function and feature exclusive contact technology selected for compatibility to each application's current, voltage, temperature, speed, and required service life.
Moflon's rotary electrical contact and rotary slip rings are used for fabrication equipment,knuckle boom cranes,rotating platforms,rotational molding equi,pedestal cranes,intelligent machinery,position welding equipment,robotic welding equipment,rotary casting machines,laminating equipment,machine tools,food processing machinery,injection presses,rough terrain cranes,tower cranes,paper…
