Standard series PART# Explanation

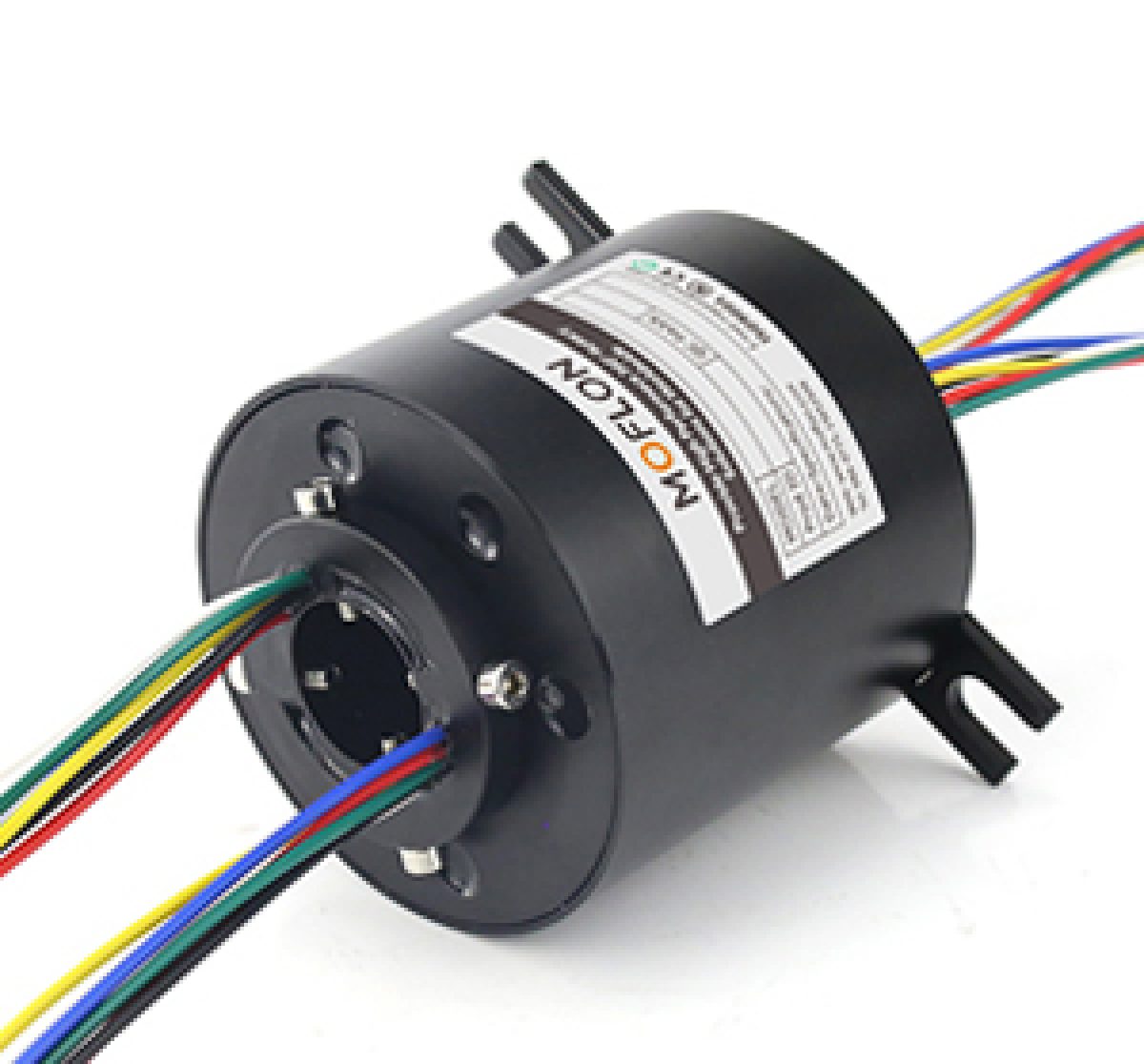

Specifications of Rotary Electrical Connector
Mechanical data
Electrical data
Parameter
Value
Parameter
Value
Working Life
300 million revs
Power
Signal
Rotating Speed
12000RPM
Rated Voltage
0~440VAC/VDC
0~440VAC/VDC
Working Temp.
-30℃~80℃
Insulation Res
≥1000MΩ/500VDC
≥1000MΩ/500VDC
Operating Humidity
0~85% RH
Lead Wires
AWG17Teflon
AWG22#Teflon
Contact Material
See Prod Quality Level
Lead Length
Standard 300mm
Housing Material
Aluminium Alloy
Dielectric Strength
500VAC@50Hz，60s
Torque
0.1N.m;+0.03/6ring
Res Noise
<0.03Ω
Protection grade
IP51
Part List
Dimension
Installing
Options
Customized
Case-Study
Price
GHS1256 Series Parts# List
Part#
10A
Signal/5A
Length(mm)
Part#
10A
Signal/5A
Length(mm)
GHS1256-S06
0
6
48.2
GHS1256-P1410-S04
14
4
86.6
GHS1256-P0210-S04
2
4
48.2
GHS1256-P1610-S02
16
2
86.6
GHS1256-P0410-S02
4
2
48.2
GHS1256-P1810
18
0
86.6
GHS1256-P0610
6
0
48.2
GHS1256-S24
0
24
105.8
GHS1256-S12
0
12
67.4
GHS1256-P0410-S20
4
20
105.8
GHS1256-P0210-S10
2
10
67.4
GHS1256-P0610-S18
6
18
105.8
GHS1256-P0410-S09
3
9
67.4
GHS1256-P1210-S12
12
12
105.8
GHS1256-P0610-S06
6
6
67.4
GHS1256-P1810-S06
18
6
105.8
GHS1256-P0810-S04
8
4
67.4
GHS1256-S30
0
30
130
GHS1256-P1010-S02
10
2
67.4
GHS1256-P0210-S28
2
28
130
GHS1256-P1210
12
0
67.4
GHS1256-P0410-S26
4
26
130
GHS1256-S18
0
18
86.6
GHS1256-P0610-S24
6
24
130
GHS1256-P0210-S16
2
16
86.6
GHS1256-S36
0
36
149.2
GHS1256-P0410-S14
4
14
86.6
GHS1256-P0410-S32
4
32
149.2
GHS1256-P0610-S12
6
12
86.6
GHS1256-P0610-S30
6
30
149.2
GHS1256-P0810-S10
8
10
86.6
GHS1256-S42
4
42
168.4
GHS1256-P1010-S08
10
8
86.6
GHS1256-P0410-S38
6
38
168.4
GHS1256-P1210-S06
12
6
86.6
GHS1256-S48
0
48
187.6
