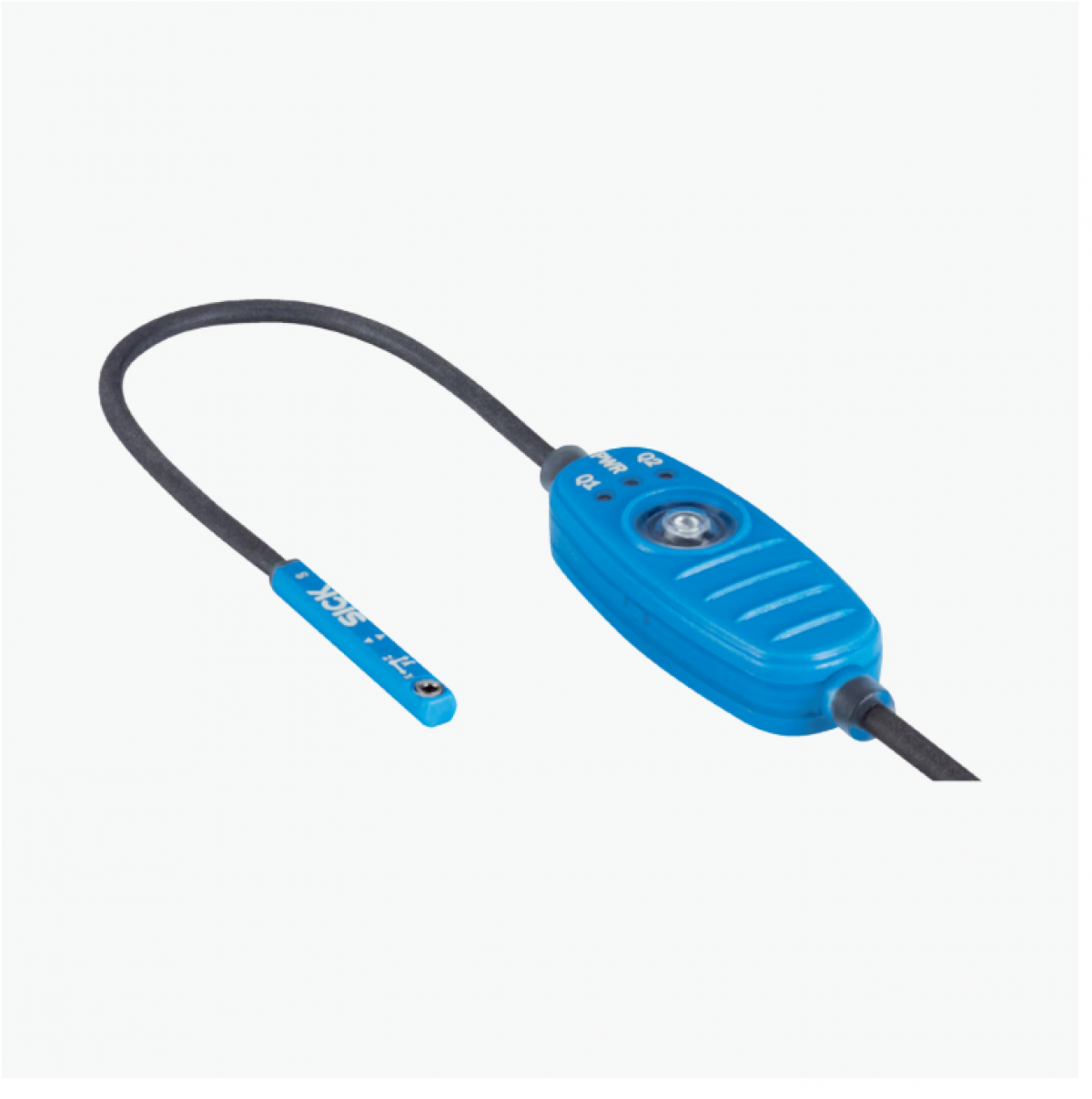

Cảm biến xy lanh Sick MPS-G50CSH13E31DZZ
Cylinder type
C-slot
Preferred manufacturer slot
SMC, Schunk, PHD, Bimba
Detection zone
0 mm … 50 mm 1)
Cylinder types with adapter
T-slot cylinders
Round body cylinder
Profile cylinders and tie-rod cylinders
Measuring range
50 mm
Housing length
25 mm
Switching output
2 x push-pull: PNP/NPN
Output function
IO-Link
Electrical wiring
DC 4-wire
Enclosure rating
IP67
Adjustment
Teach-in button
Initialization of dynamic teach for 1 to 3 switching points
Manual programming of 1 to 3 switching points (digital outputs)
Adjustment of overrun distance per switching point
Resetting of switching points
IO-Link
Configuration of up to 8 switching points
Diagnostic functionality
Actuator diagnosis
Special features
Completely embedded mounting in the slot, providing protection
1) Deviations are possible depending on the drive.
Technical drawings
Installation note
Connection diagram Cd-466
Dimensional drawing Cable with connector M12, with knurled nuts
