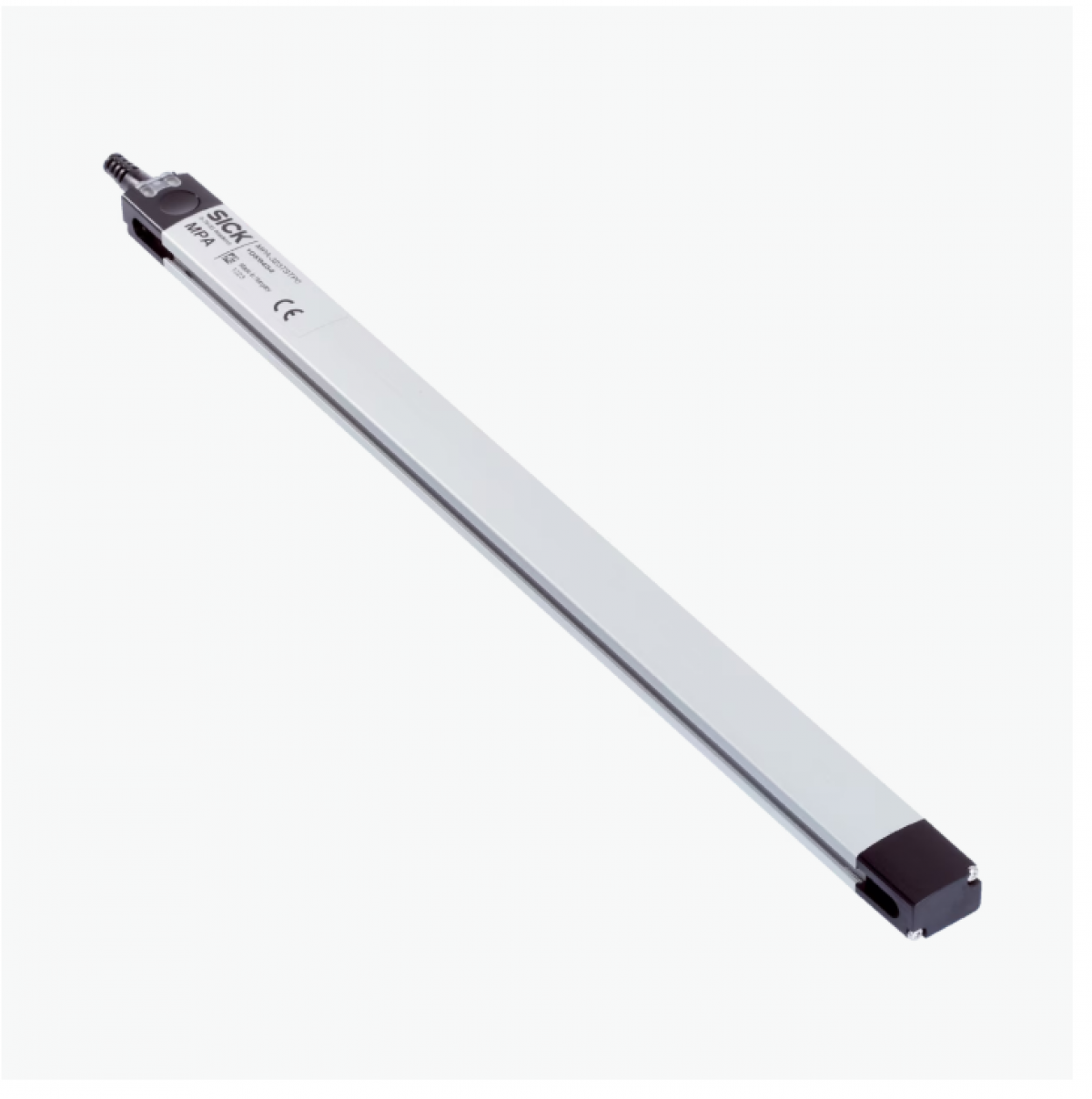

Cảm biến xy lanh Sick MPA-215THTP0
Cylinder type
Universal
Cylinder types with adapter
Round body cylinder
Tie rod cylinder
T-slot cylinders
Festo cylinders DSBC
SMC cylinders CP96
Measuring range
215 mm 1)
Housing length
217 mm
Output function
Analog, IO-Link
Electrical wiring
DC 4-wire
Analog output (voltage)
0 V … 10 V
Analog output (current)
4 mA … 20 mA 2)
Enclosure rating
IP65, IP67, IP68 3)
Adjustment
Teach-in control panel
Teaching in the measuring range
Selecting the current/voltage output or IO-Link
Resetting the measuring range to factory settings
IO-Link
Teaching in the measuring range
Resetting the measuring range
IO-Link functions
Standard functions
1) ± 1 mm.
2) Default setting: Current output active.
3) According to EN 60529.
Technical drawings
Connection diagram Cd-230
Dimensional drawing Cable with M8 male connector, 4-pin
