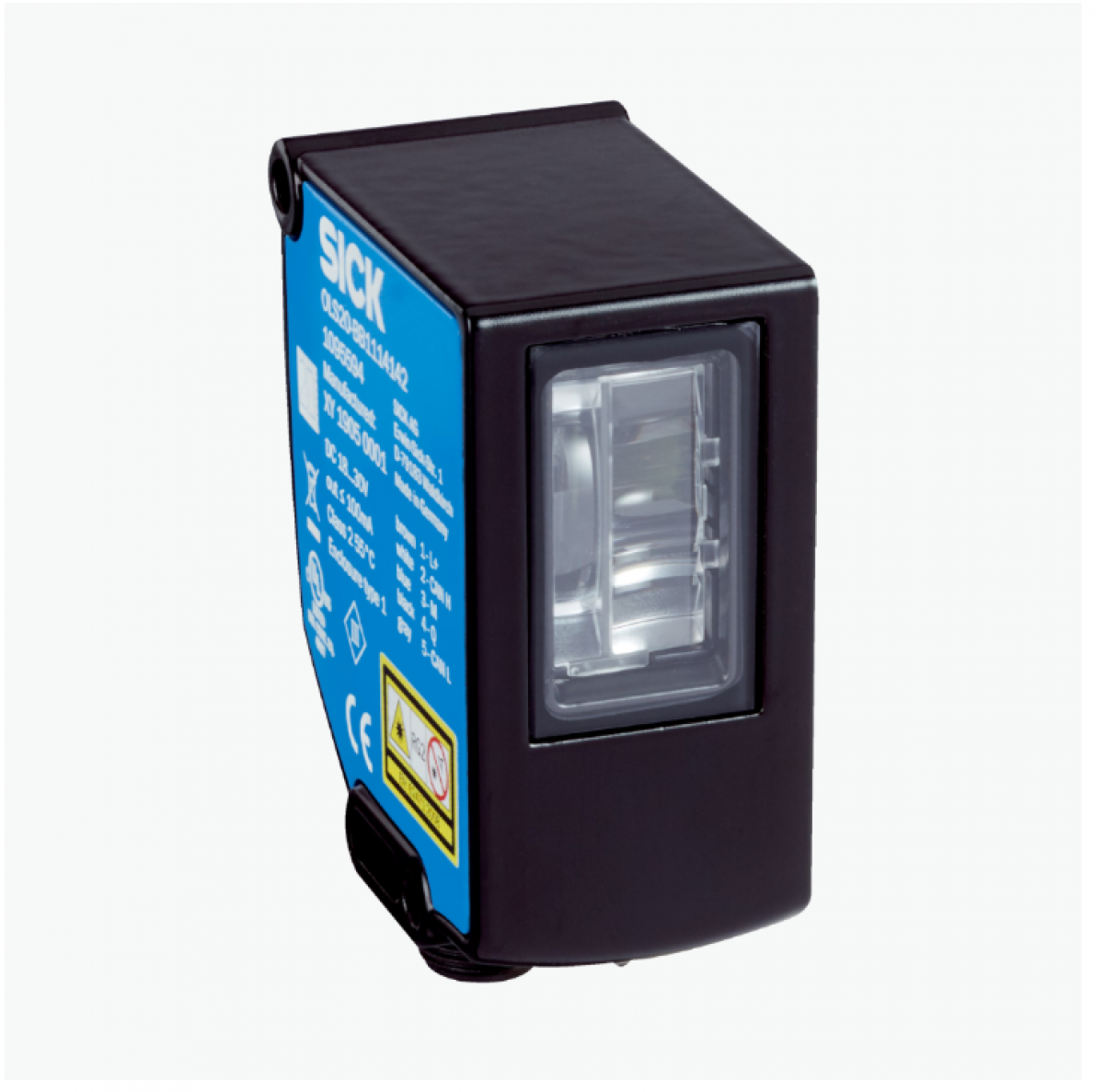

Cảm biến tương phản Sick OLS20-BB1118142
Dimensions (W x H x D)
31 mm x 62 mm x 52.5 mm
Sensing distance
≤ 100 mm
Sensing distance tolerance
± 10 mm
Housing design
Rectangular
Working range
90 mm … 110 mm
Light source
LED, blue 1)
Wave length
450 nm
Light spot size
180 mm x 9 mm 2)
Receiving filters
RG 610
Bar code types
Interleaved 2 of 5
Module width (min.)
≥ 1.5 mm
Line radius (min.)
≥ 0.5 m
Track color
Orange
1) Average service life: 100,000 h at TU = +25 °C.
2) Field of view line +-90mm, field of view code +-50mm.
Technical drawings
Dimensional drawing
Connection diagram Cd-424
Adjustments
