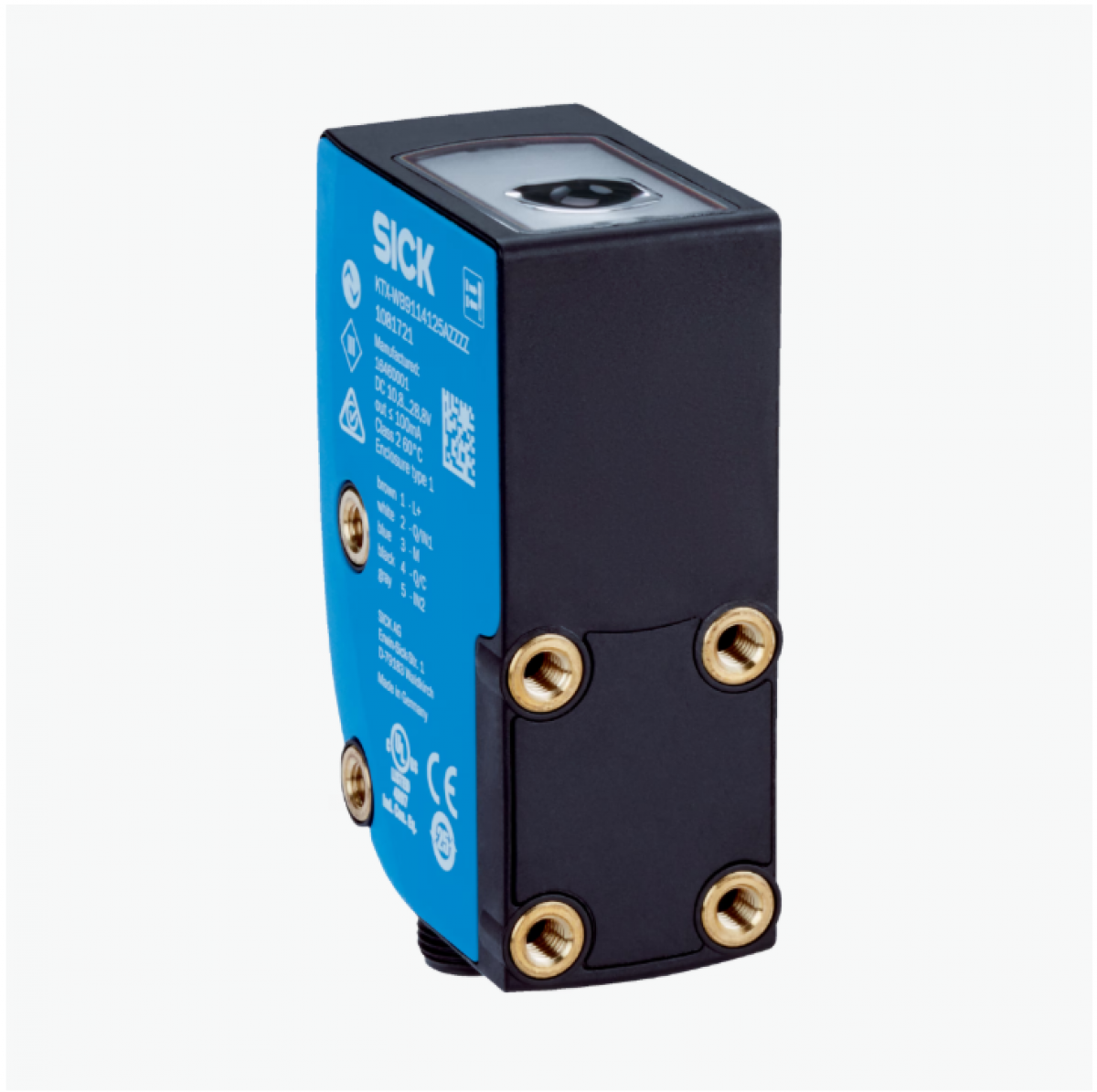

Cảm biến tương phản Sick KTX-WN91142252ZZZZ
Special applications
Standard
Device type
Standard
Dimensions (W x H x D)
30 mm x 53 mm x 78.5 mm
Sensing distance
≤ 13 mm
Sensing distance tolerance
± 5 mm
Housing design
Large
Light source
LED, RGB 1)
Wave length
470 nm, 525 nm, 625 nm
Light emission
Short device side
Light spot size
0.9 mm x 3.8 mm
Light spot direction
Vertical 2)
Receiving filters
None
Teach-in mode
1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode
Output function
Light/dark switching
Delay time
Adjustable
Special features
–
Delivery status
2-point teach-in
Parameter presettings
None
Setting the key lock
Standard
1) Average service life: 100,000 h at TU = +25 °C.
2) In relation to long side of housing.
Technical drawings
Dimensional drawing
display and adjustment elements
Connection diagram Cd-382
KTS/KTX Prime – setting the switching threshold (2-point teach-in)
KTS/KTX Prime – Setting the switching threshold (teach-in dynamic)
Sensing distance Sensing distance 13 mm, light spot direction horizontal/vertical
