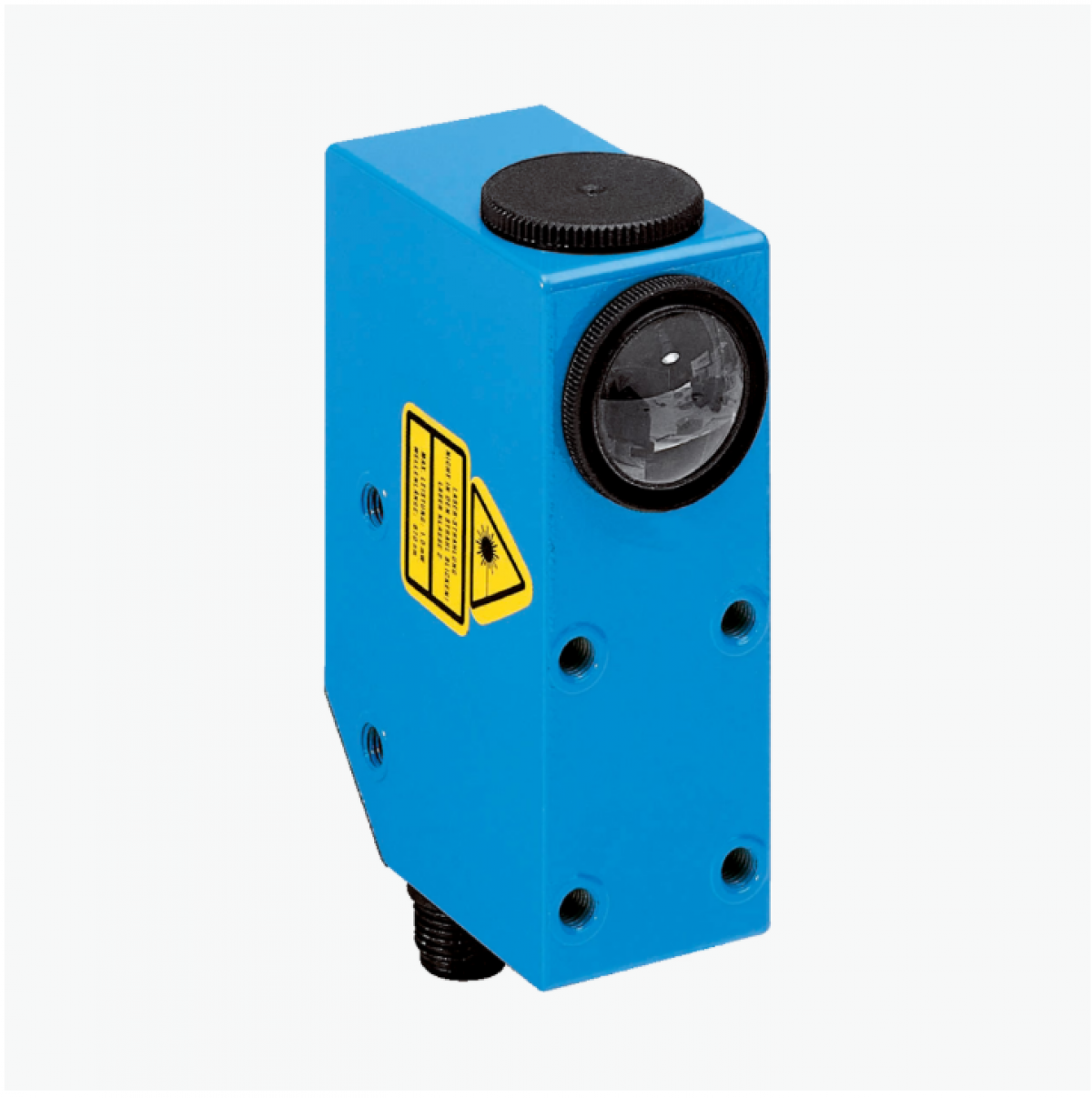

Cảm biến tương phản Sick KT8L-N3756
Dimensions (W x H x D)
30.4 mm x 53 mm x 80 mm
Sensing distance
≤ 150 mm 1)
Sensing distance tolerance
– 120 mm / + 650 mm
Housing design
Large
Light source
Laser, red 2)
Laser class
II (EN 60825-1:2014), IEC 60825-1:2014
Wave length
655 nm
Light emission
Long side of housing
Light spot size
Ø 3 mm 3)
Light spot direction
Round
Operating distance
30 mm … 600 mm 4)
Adjustment
Teach-in button
Teach-in mode
Static 2-point teach-in
Dynamic teach-in (min/max)
Function
Automatic drift correction
1) From leading edge of lens.
2) Average service life: 50,000 h at TU = +25 °C.
3) At focal point = sensing distance 150 mm.
4) With respect to black-white contrast 6 % / 90 %.
Technical drawings
Dimensional drawing KT8L Laser
Adjustments KT8L Laser
Connection diagram Cd-329
Connection type and diagram
Connection type and diagram
Sensing distance
