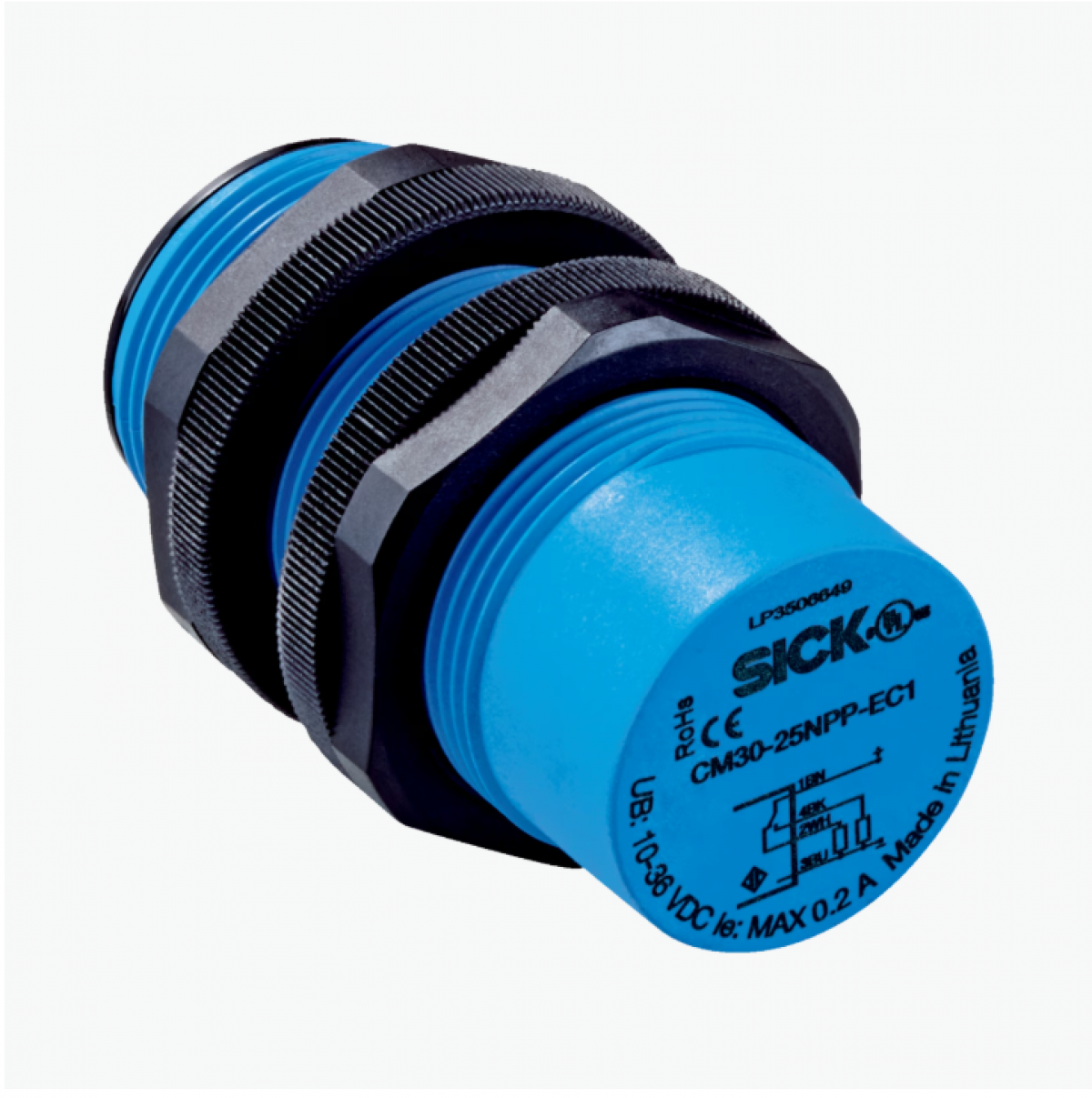

Cảm biến tiệm cận điện dung Sick CM30-25NNP-EC1
Housing
Metric
Thread size
M30 x 1.5
Diameter
Ø 30 mm
Sensing range Sn
4 mm … 25 mm
Safe sensing range Sa
19.13 mm 1)
Installation type
Non-flush
Switching frequency
50 Hz
Connection type
Male connector M12, 4-pin
Switching output
NPN
Output function
Complementary
Output characteristic
Wire configurable
Electrical wiring
DC 4-wire
Adjustment
Potentiometer
Sensitivity (11 turns)
Enclosure rating
IP68 2)
IP69K
Items supplied
Mounting nut, PA12 plastic (2x)
Screwdriver for potentiometer adjustment (1 x)
1) For flush mounting in electrically conductive materials Sa = 0.8 x Sr at temperatures 60 °C.
2) 1 m water depth / 60 min.
Technical drawings
Installation note Non-flush installation
Shock and vibration resistance
Electromagnetic compatibility (EMC)
Connection diagram Cd-006
Response diagram CM30, Non-flush installation
Dimensional drawing CM30, non-flush, connector
