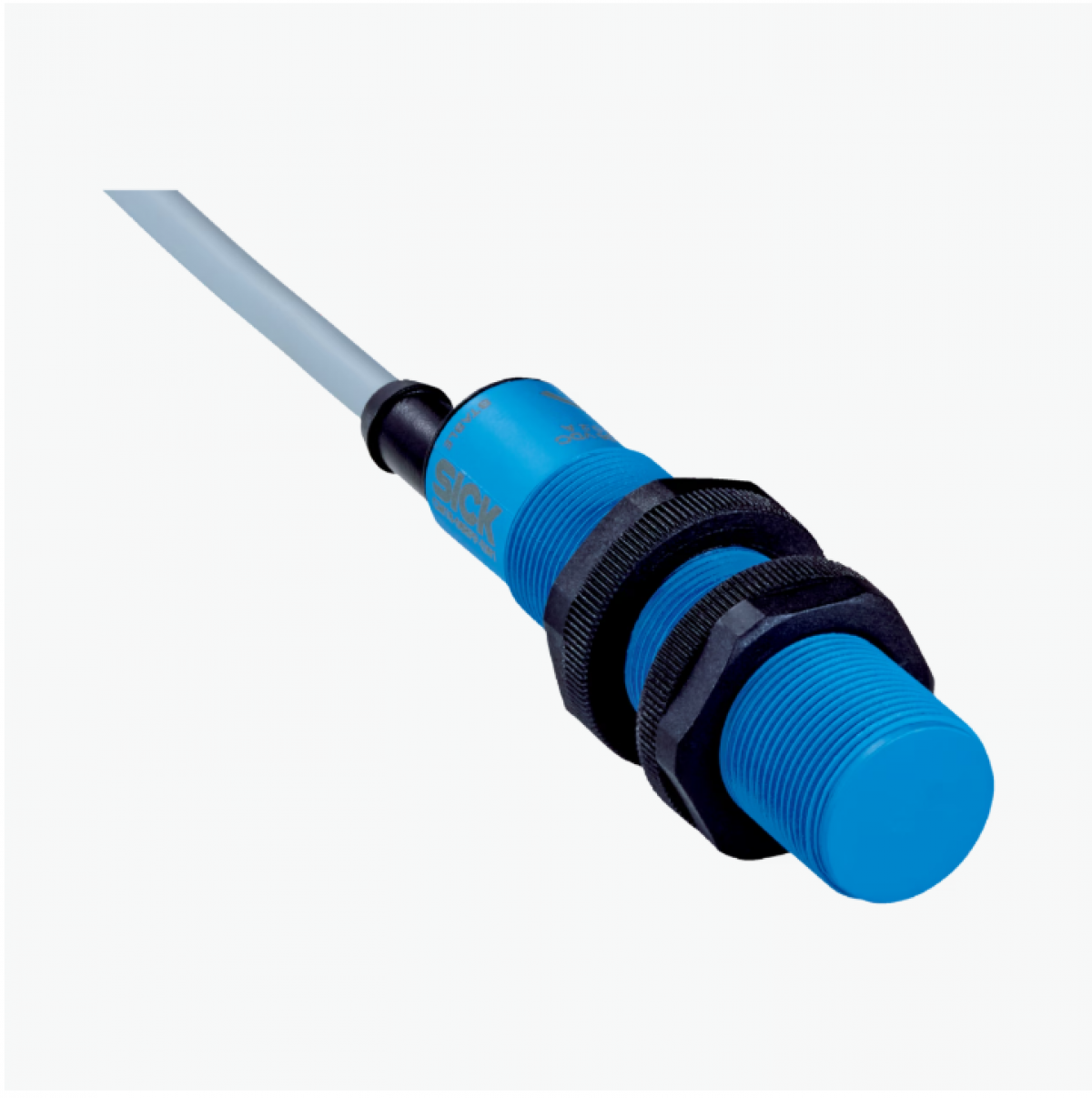

Cảm biến tiệm cận điện dung Sick CM18-08BPP-EW1
Housing
Metric
Thread size
M18 x 1
Diameter
Ø 18 mm
Sensing range Sn
0 mm … 8 mm
Safe sensing range Sa
6.12 mm 1)
Installation type
Flush
Switching frequency
50 Hz
Connection type
Cable, 4-wire, 2 m 2)
Switching output
PNP
Output function
Complementary
Output characteristic
Wire configurable
Electrical wiring
DC 4-wire
Adjustment
Potentiometer
Sensitivity (11 turns)
Enclosure rating
IP67
IP68 3)
IP69K
Items supplied
Mounting nut, PA12 plastic (2x)
Screwdriver for potentiometer adjustment (1 x)
1) For flush mounting in electrically conductive materials Sa = 0.8 x Sr at temperatures 60 °C.
2) Do not bend below 0 °C.
3) 1 m water depth / 60 min.
Technical drawings
Installation note Flush installation
Shock and vibration resistance
Electromagnetic compatibility (EMC)
Connection diagram Cd-005
Response diagram CM18, Flush installation
Dimensional drawing CM18, flush, cable
