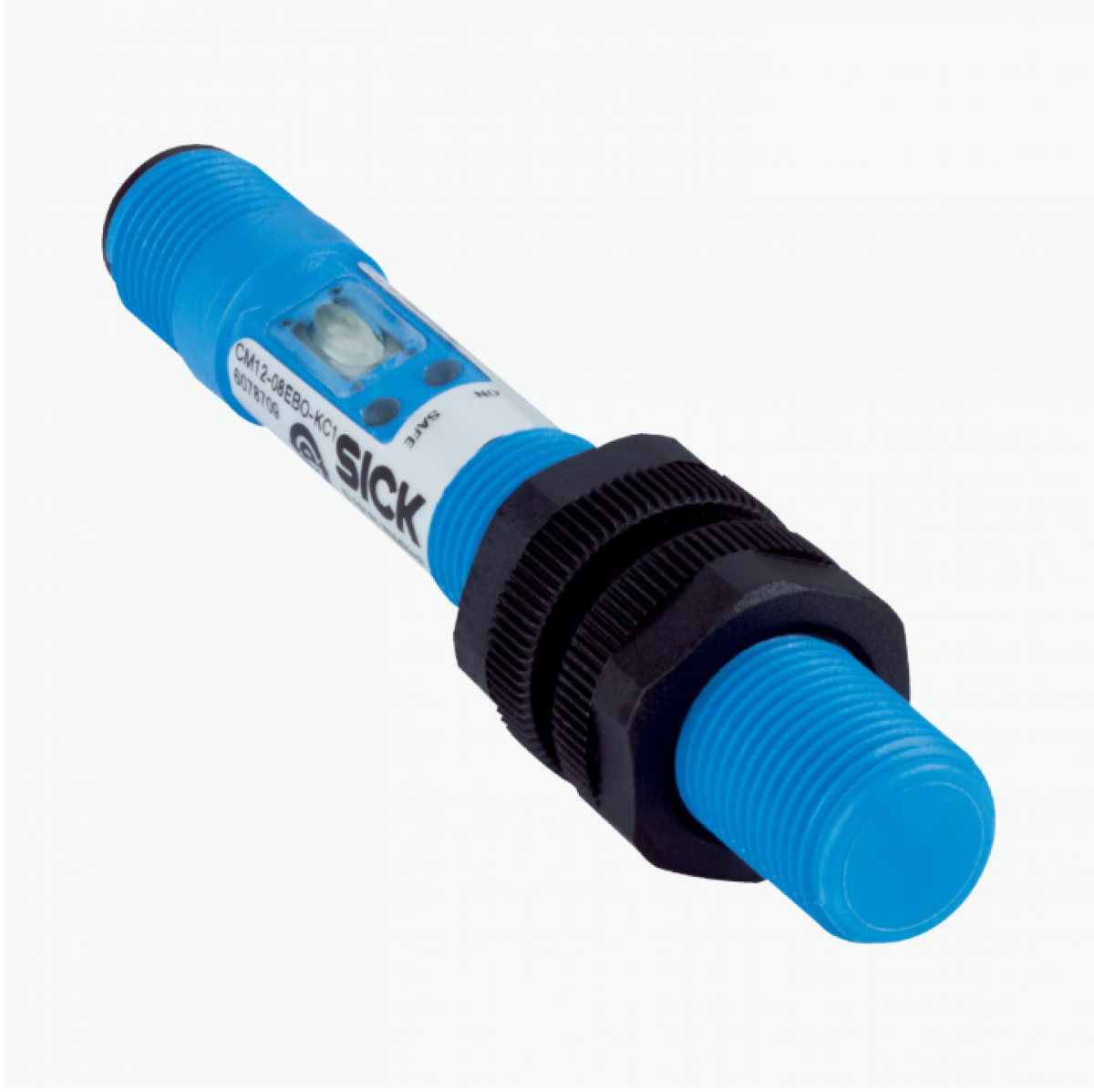

Cảm biến tiệm cận điện dung Sick CM12-08EBP-KC1
Housing
Metric
Thread size
M12 x 1
Diameter
Ø 12 mm
Sensing range Sn
0.5 mm … 8 mm 1)
0.5 mm … 4 mm 2)
Safe sensing range Sa
5.76 mm
Installation type
Non-flush / flush 3)
Switching frequency
15 Hz
Connection type
Male connector M12, 4-pin
Switching output
PNP / NPN
Output function
Programmable
Output characteristic
Wire configurable 4)
Electrical wiring
DC 4-wire
Adjustment
Teach-in button
Sensitivity
Wire/pin
Sensitivity
Enclosure rating
IP68 (According to EN 60529) 5)
Items supplied
Mounting nut, PA12 plastic (2x)
1) For non-flush installation.
2) For flush mounting.
3) For flush mounting, Teach-in necessary.
4) Automatic detection.
5) 1.3 m water depth / 60 min.
Technical drawings
Installation note Non-flush installation
Connection diagram Cd-235
Response diagram CM12
Dimensional drawing CM12, connector
