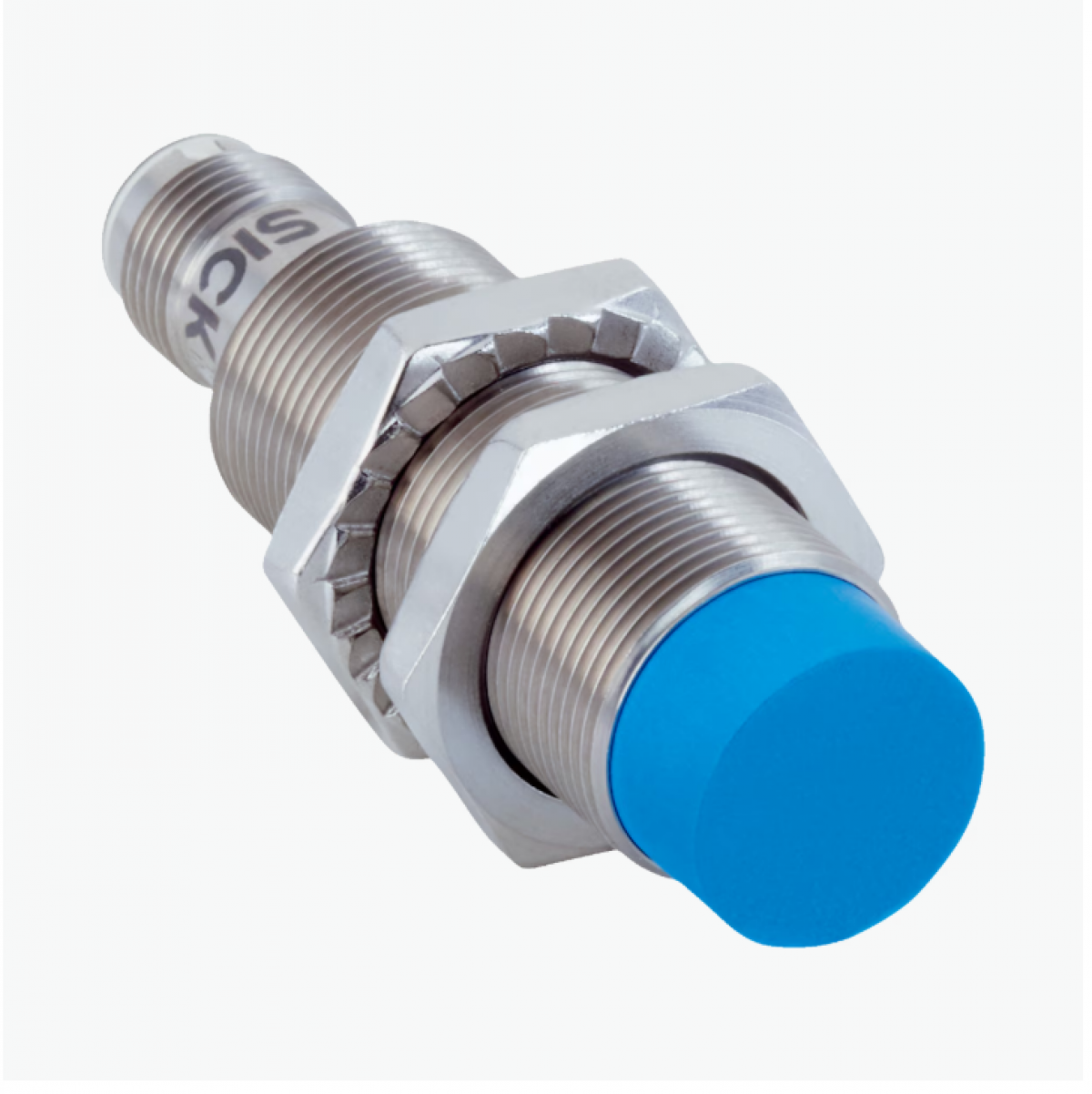

Cảm biến tiệm cận cảm ứng Sick IMC18-12NPPVC0SA70
Housing
Metric
Thread size
M18 x 1
Diameter
Ø 18 mm
Sensing range Sn
0 mm … 12 mm 1)
Safe sensing range Sa
9.72 mm
Number of switching points
Up to 4 adjustable switching points or windows
Switching modes
Single point, Window mode, Two point mode, Visual adjustment indicator
Switching frequency Qint.1 / Qint.2 on Pin2
250 Hz
Installation type
Non-flush
Connection type
Male connector M12, 4-pin 2)
Switching output
PNP
Output Q/C
Switching output or IO-Link mode
Output MFC
Switching output or input
Output function
NC / NO
Output characteristic
Programmable
Electrical wiring
DC 4-wire
Enclosure rating
IP68 3)
IP69K 4)
Special features
Smart Task, Resistant against coolant lubricants, IO-Link
Special applications
Zones with coolants and lubricants, Difficult application conditions
Special characteristic
Resistant against coolant lubricants
Pin 2 configuration
External input, Teach-in, switching signal
Items supplied
Mounting nut, V2A stainless steel, with locking teeth (2x)
1) Adjustable.
2) With gold plated contact pins.
3) According to EN 60529.
4) According to ISO 20653:2013-03.
Technical drawings
Installation note Non-flush installation
Connection diagram Cd-526
Response diagram
Dimensional drawing IMC18 Standard, connector M12, non-flush
