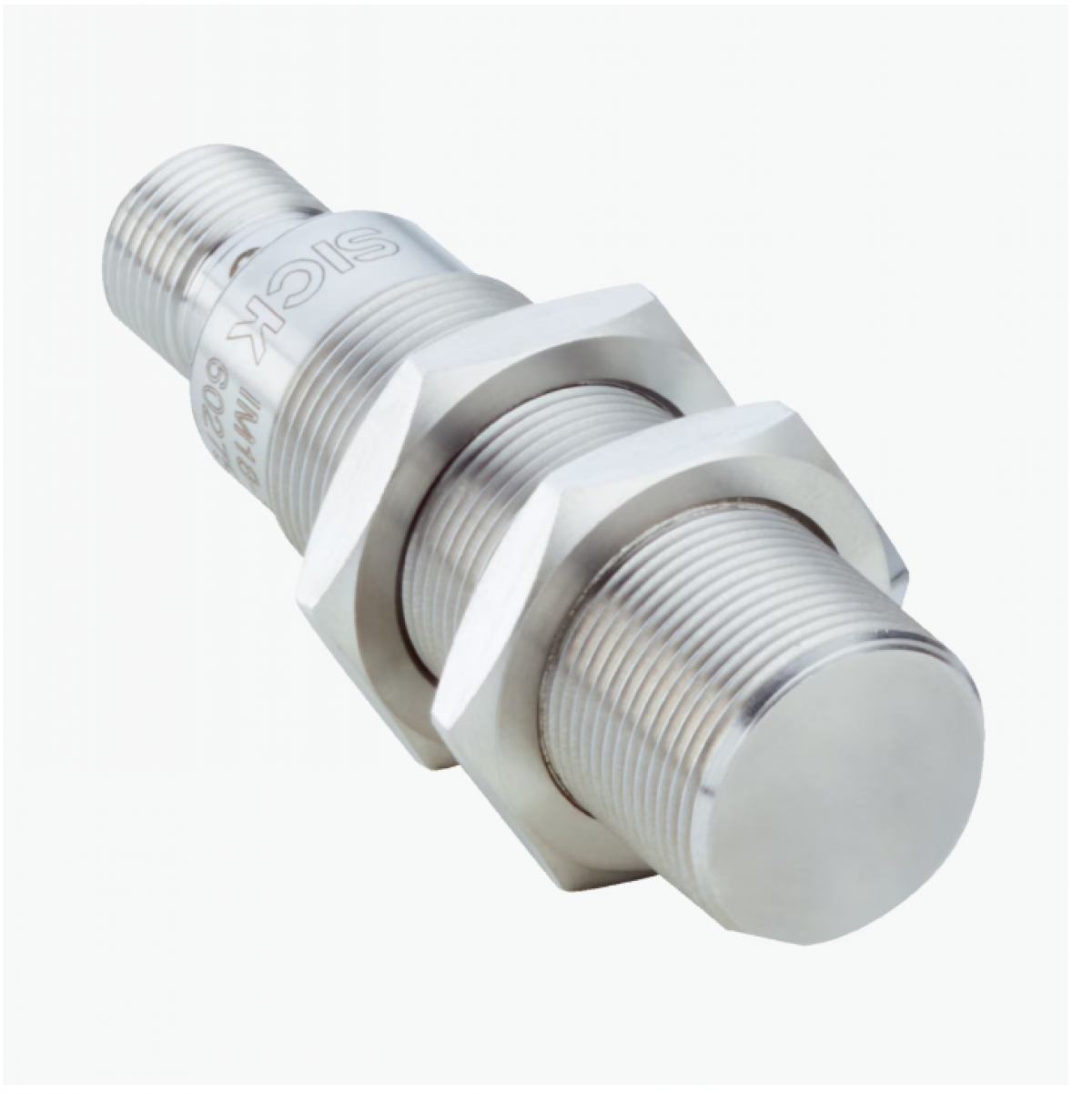

Cảm biến tiệm cận cảm ứng Sick IM18-10BPS-VC1
Housing
Metric
Thread size
M18 x 1
Diameter
Ø 18 mm
Pressure resistance
≤ 60 bar
Sensing range Sn
10 mm
Safe sensing range Sa
8.1 mm
Installation type
Flush
Switching frequency
200 Hz
Connection type
Male connector M12, 4-pin
Switching output
PNP
Output function
NO
Electrical wiring
DC 3-wire
Enclosure rating
IP68, IP69K 1)
Special features
Sensing face made of stainless steel V2A, Resistant against coolant lubricants, triple sensing range, Visual adjustment indicator, IO-Link
Special applications
Zones with coolants and lubricants, Difficult application conditions
Items supplied
Mounting nut, V2A stainless steel (2x)
Washer, V2A stainless steel, with locking teeth (2x)
1) According to EN 60529.
Technical drawings
Installation note Flush installation
Connection diagram Cd-456
Response diagram
Functional principle Installation aid
Dimensional drawing IM18, V2A, flush
