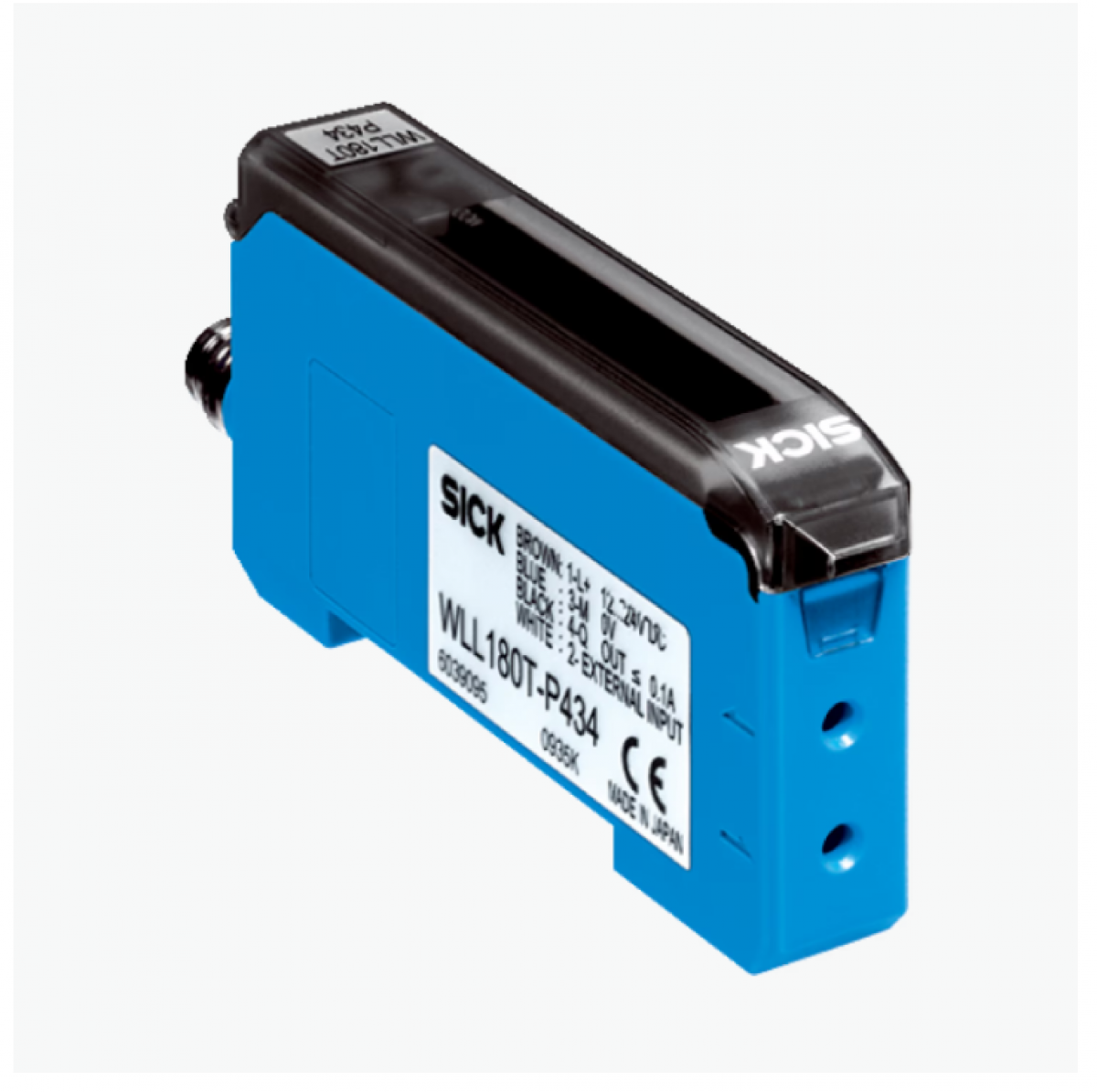

Cảm biến sợi quang Sick WLL180T-P432
Device type
Fiber-optic amplifier
Device type detail
Stand-alone
Dimensions (W x H x D)
10.5 mm x 34.6 mm x 71.9 mm
Housing design (light emission)
Rectangular
Sensing range max.
0 m … 20 m (Through-beam system) 1) 2)
Sensing range
0 mm … 1,400 mm, Proximity system 3) 4)
0 … 18 m, Through-beam system 1) 2)
Focus
Approx. 65° 5)
Type of light
Visible red light
Light source
LED 6)
Angle of dispersion
Approx. 65° 5)
Wave length
650 nm
Adjustment
Menu-controlled
Single teach-in button
Cable
Indication
7-segment
Display
LED status display / 2x 4-character digital dual displays, Set value (green indicator) and actual value (red indicator) are displayed simultaneously, display of parameters
1) Sensing range with 8 ms response time. Reduction with shorter response time (see tables LL3/WLL180T).
2) LL3-TX01.
3) Object with 90% remission (based on standard white DIN 5033). Sensing range at 8 ms response time. Reduced at shorter response times (see LL3 / WLL180T tables).
4) LL3-DK06.
5) See LL3 fiber-optic data.
6) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Adjustments WLL180
Connection type
Connection diagram Cd-136
Dimensional drawing Stand-alone
