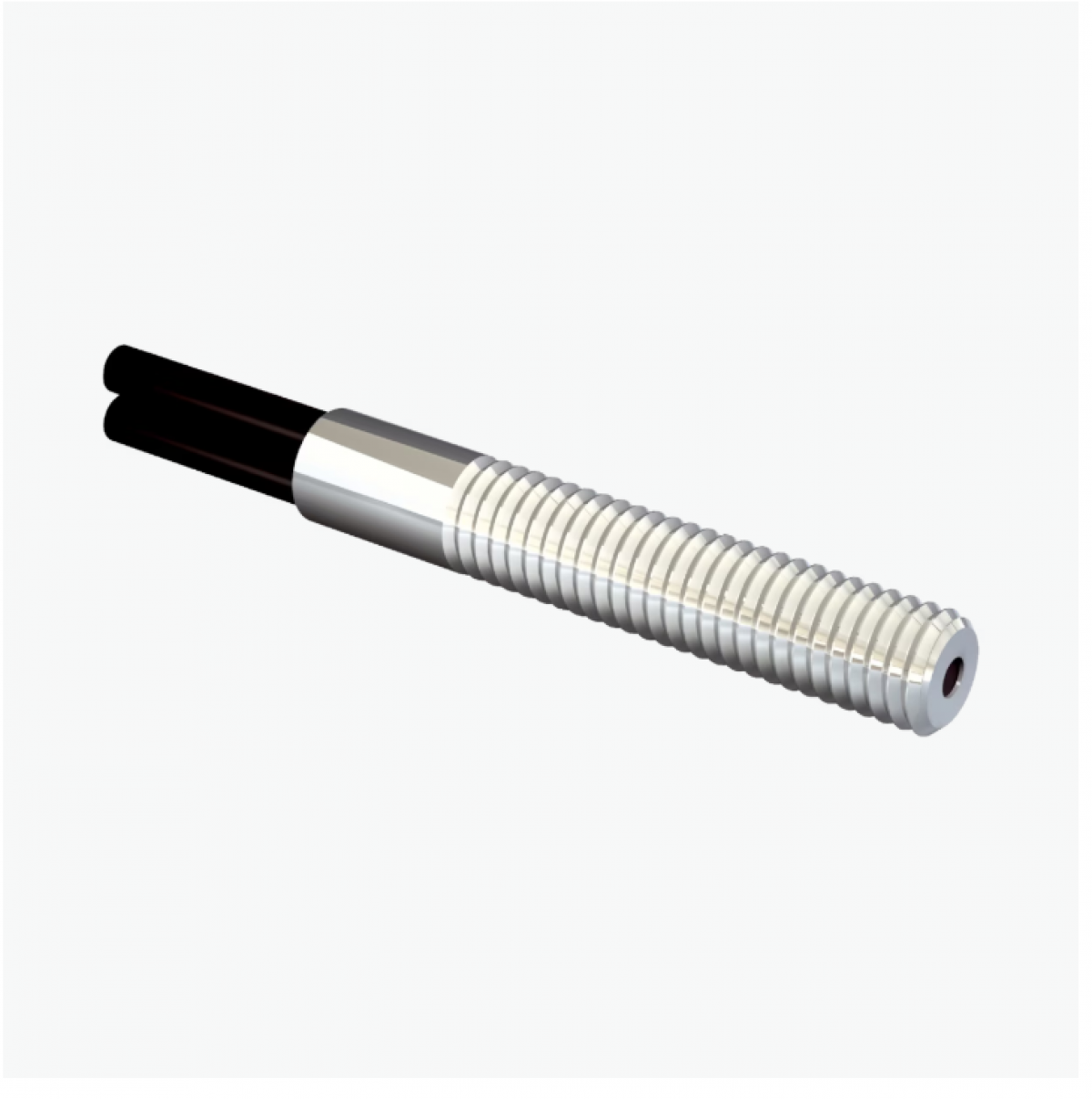

Cảm biến sợi quang Sick LL3-DT01
Device type
Fiber-optic cables
Functional principle
Proximity system
Fiber-optic head design
Threaded sleeve
Application
Standard
Compatible fiber-optic amplifiers
WLL80, WLL180, GLL170(T)
Sensing range max.
710 mm (Sensing range of WLL80 at 8 ms)
Minimal object diameter
0.015 mm 1)
Optical fiber head
Angle of dispersion
60°
Integrated lens
No
Compatibility tip adapters
Yes
Optical fiber
Compatibility with infrared light
No
Optical fiber cable can be shortened
✔
Adapter end sleeves required
Yes
Included with delivery
Mounting, 2 x M3 hexagon nut, 2 x washer, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141)
1) Minimum detectable object was determined at optimum measuring distance and optimum setting.
Technical drawings
Dimensional drawing LL3-DT01
Dimensional drawing
