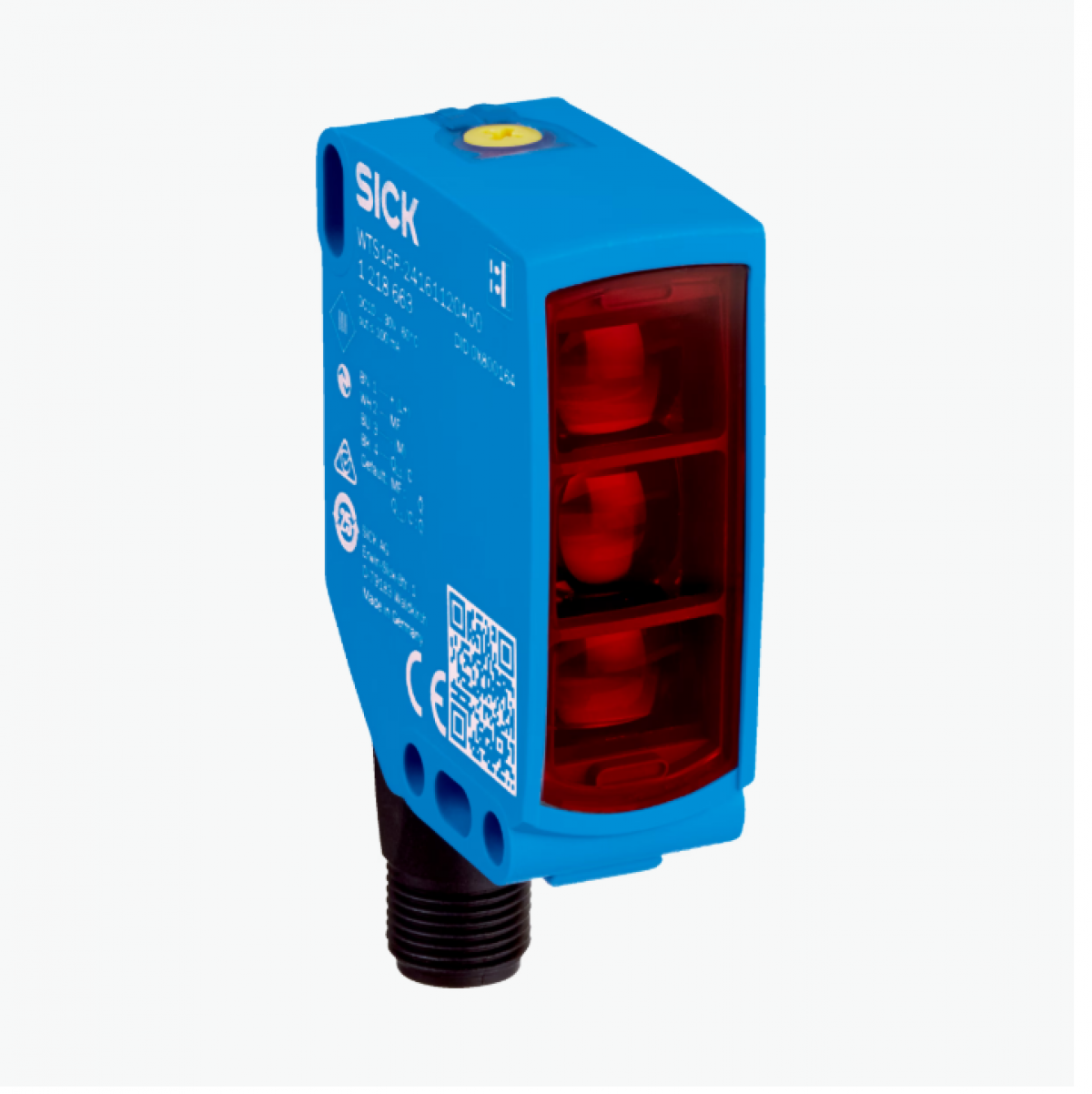

Cảm biến quang điện Sick WTS16G-24161920A00
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression, TwinEye technology
Sensing range
Sensing range min.
10 mm
Sensing range max.
400 mm
Adjustable switching threshold for background suppression
100 mm … 400 mm
Reference object
Object with 90% remission factor (complies with standard white according to DIN 5033)
Minimum distance between set sensing range and background (black 6% / white 90%)
20 mm, at a distance of 300 mm
Recommended sensing range for the best performance
150 mm … 300 mm
Emitted beam
Light source
LED
Type of light
Visible red light
Shape of light spot
Rectangular
Light spot size (distance)
13 mm x 13 mm (300 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)
< +/- 1.0° (at Ta = +23 °C)
Key LED figures
Normative reference
EN 62471:2008-09 | IEC 62471:2006, modified
LED risk group marking
Free group
Wave length
625 nm
Average service life
100,000 h at Ta = +25 °C
Adjustment
Teach-Turn adjustment
BluePilot: For setting the sensing range
IO-Link
For configuring the sensor parameters and Smart Task functions
Indication
LED blue
BluePilot: sensing range indicator
LED green
Operating indicator
Static on: power on
Flashing: IO-Link mode
LED yellow
Status of received light beam
Static on: object present
Static off: object not present
Special applications
Detecting uneven, shiny objects, Detecting objects wrapped in film
Technical drawings
Dimensional drawing, sensor
display and adjustment elements
Connection type M12 male connector, 4-pin
Connection diagram Cd-390
Truth table Push-pull: PNP/NPN – dark switching Ǭ
Truth table Push-pull: PNP/NPN – light switching Q
Characteristic curve
Light spot size
Sensing range diagram
