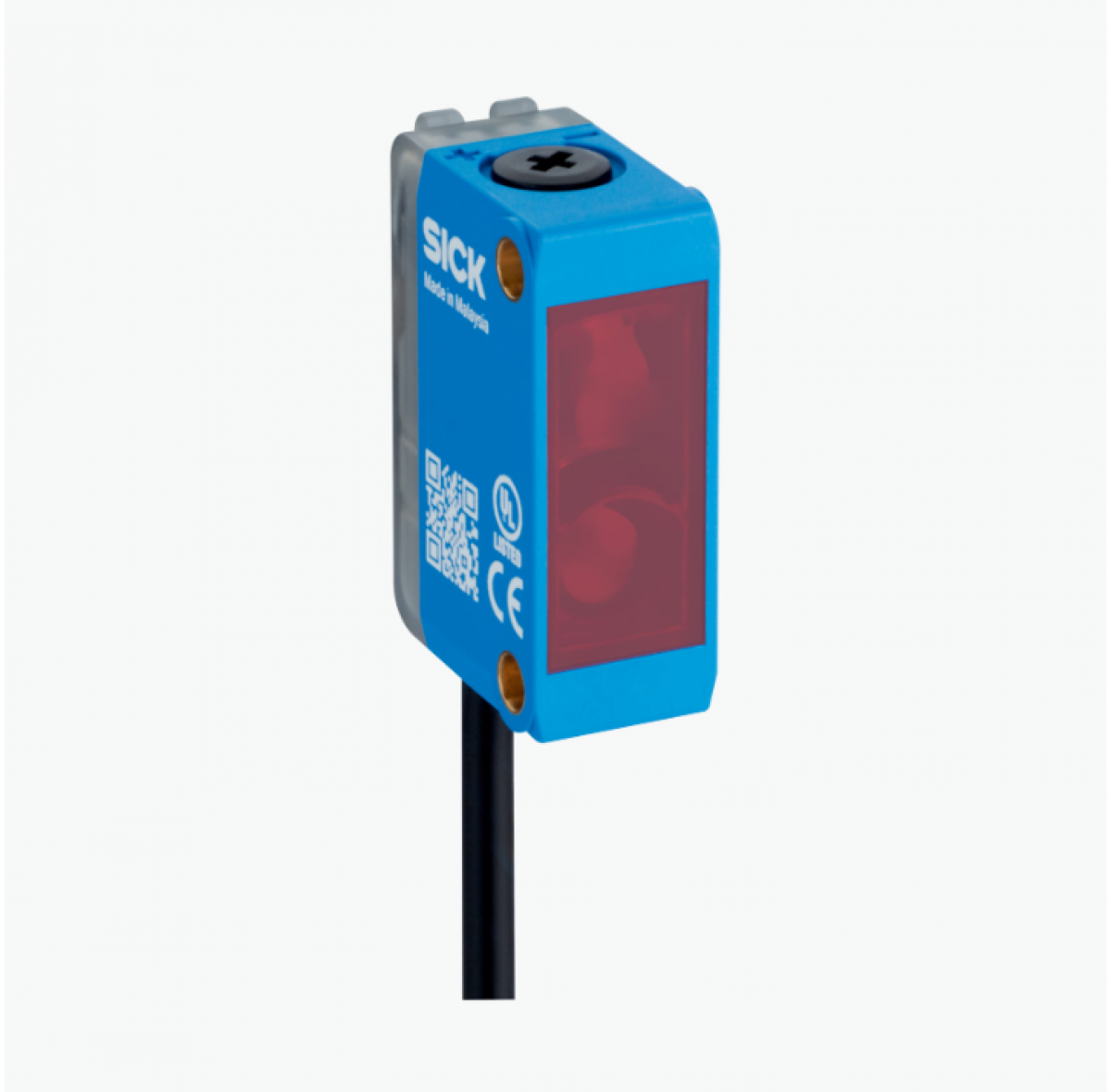

Cảm biến quang điện Sick WTM12L-1H161120A00
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression, Foreground suppression, MultiMode
MultiMode
1 Background suppression
2 Foreground suppression
3 Two-point teach-in
4 Two independent switching points
5 Window
6 ApplicationSelect
M manual / measurement
Sensing range
Sensing range min.
80 mm (Mode 1, 3, 4, 5)
80 mm (Mode 2)
80 mm (Mode 1 and 6 combined)
Sensing range max.
850 mm (Mode 1, 3, 4, 5)
350 mm (Mode 2)
1,200 mm (Mode 1 and 6 combined)
Adjustable switching threshold for background suppression
90 mm … 850 mm (Mode 1, 3, 4, 5)
100 mm … 350 mm (Mode 2)
90 mm … 1,200 mm (Mode 1 and 6 combined)
Reference object
Object with 90% remission factor (complies with standard white according to DIN 5033)
Minimum distance between set sensing range and background (black 6% / white 90%)
6 mm, at a distance of 250 mm (Mode 1, 3, 4, 5)
6 mm, at a distance of 650 mm (Mode 1 and 6 combined)
Minimum object height at set sensing range in front of black background (6% remission factor)
2.2 mm, at a distance of 150 mm (Mode 2)
Recommended sensing range for the best performance
100 mm … 300 mm (Mode 1, 3, 4, 5)
100 mm … 200 mm (Mode 2)
100 mm … 700 mm (Mode 1 and 6 combined)
Distance value
Measuring range
100 mm … 850 mm
Resolution
1 mm
Repeatability
0,1 mm … 6 mm 1) 2) 3)
Accuracy
Typ. 6.0 mm at 100 … 200 mm distance, Typ. 12 mm at 200 … 400 mm distance, Typ. 30 mm at 400 … 800 mm distance 1) 1) 1)
Distance value output
Via IO-Link
Update rate of the distance value
20 ms
Emitted beam
Light source
Laser
Type of light
Visible red light
Shape of light spot
Ellipse shape
Light spot size (distance)
2.2 mm x 1.2 mm (300 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)
< +/- 1.0° (at Ta = +23 °C)
Key laser figures
Normative reference
EN 60825-1:2014, IEC 60825-1:2014
Laser class
1
Wave length
655 nm
Pulse…
