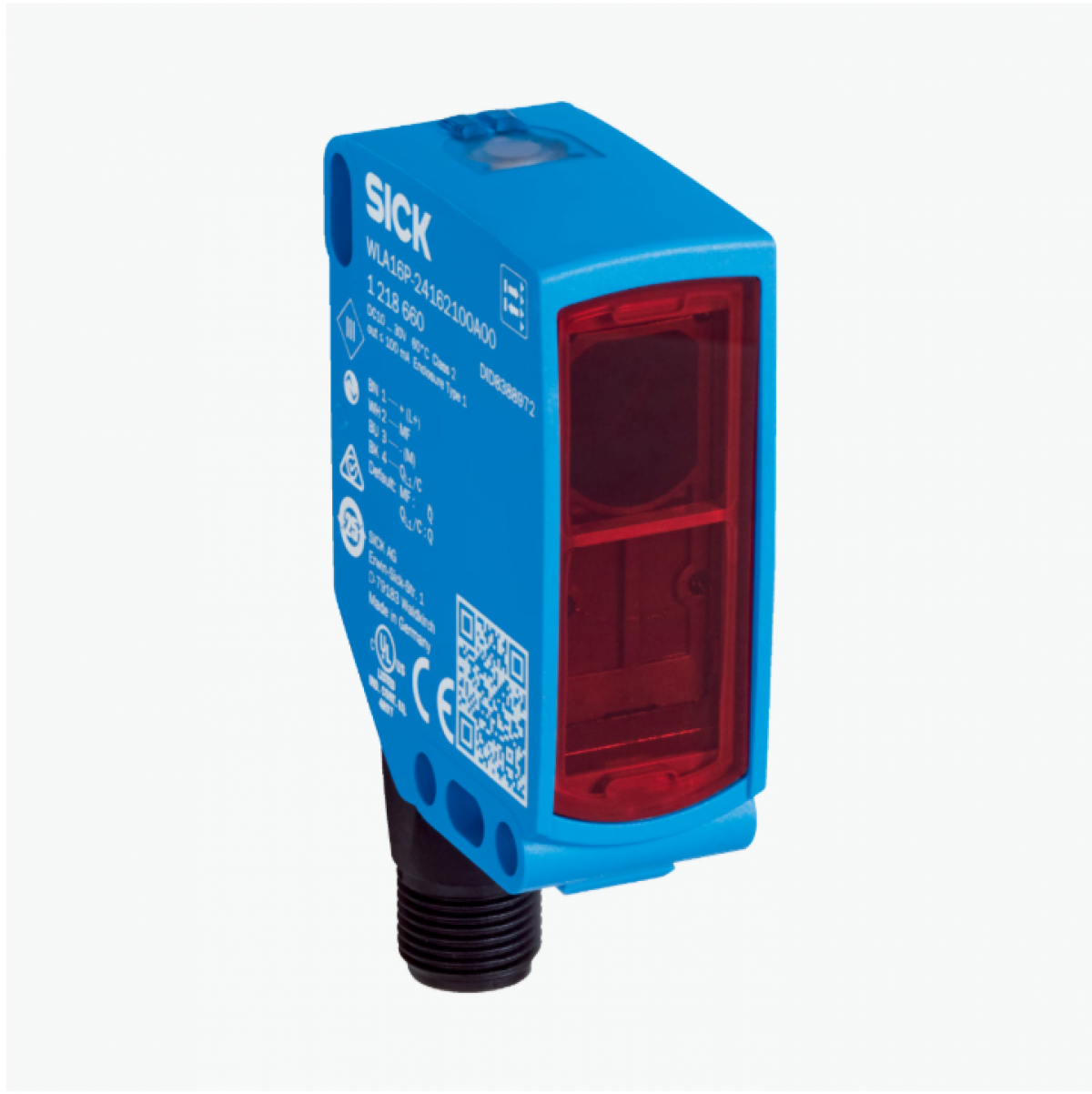

Cảm biến quang điện Sick WTL16P-24161120A00
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression, LineSpot technology
Sensing range
Sensing range min.
10 mm
Sensing range max.
500 mm
Adjustable switching threshold for background suppression
100 mm … 500 mm
Reference object
Object with 90% remission factor (complies with standard white according to DIN 5033)
Minimum distance between set sensing range and background (black 6% / white 90%)
15 mm, at a distance of 200 mm
Recommended sensing range for the best performance
150 mm … 250 mm
Emitted beam
Light source
PinPoint LED
Type of light
Visible red light
Shape of light spot
Line-shaped
Light spot size (distance)
3 mm x 30 mm (200 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)
< +/- 1.0° (at Ta = +23 °C)
Key LED figures
Normative reference
EN 62471:2008-09 | IEC 62471:2006, modified
LED risk group marking
Free group
Wave length
635 nm
Average service life
100,000 h at Ta = +25 °C
Adjustment
Teach-Turn adjustment
BluePilot: For setting the sensing range
IO-Link
For configuring the sensor parameters and Smart Task functions
Indication
LED blue
BluePilot: sensing range indicator
LED green
Operating indicator
Static on: power on
Flashing: IO-Link mode
LED yellow
Status of received light beam
Static on: object present
Static off: object not present
Special features
Line-shaped light spot
Special applications
Detecting perforated objects
Technical drawings
Dimensional drawing, sensor
display and adjustment elements
Connection type M12 male connector, 4-pin
Connection diagram Cd-390
Truth table Push-pull: PNP/NPN – dark switching Ǭ
Truth table Push-pull: PNP/NPN – light switching Q
Characteristic curve WTL16P-xxxxx1xx
Light spot size Vertical
Light spot size Horizontal
Sensing range diagram WTL16P-xxxxx1xx
