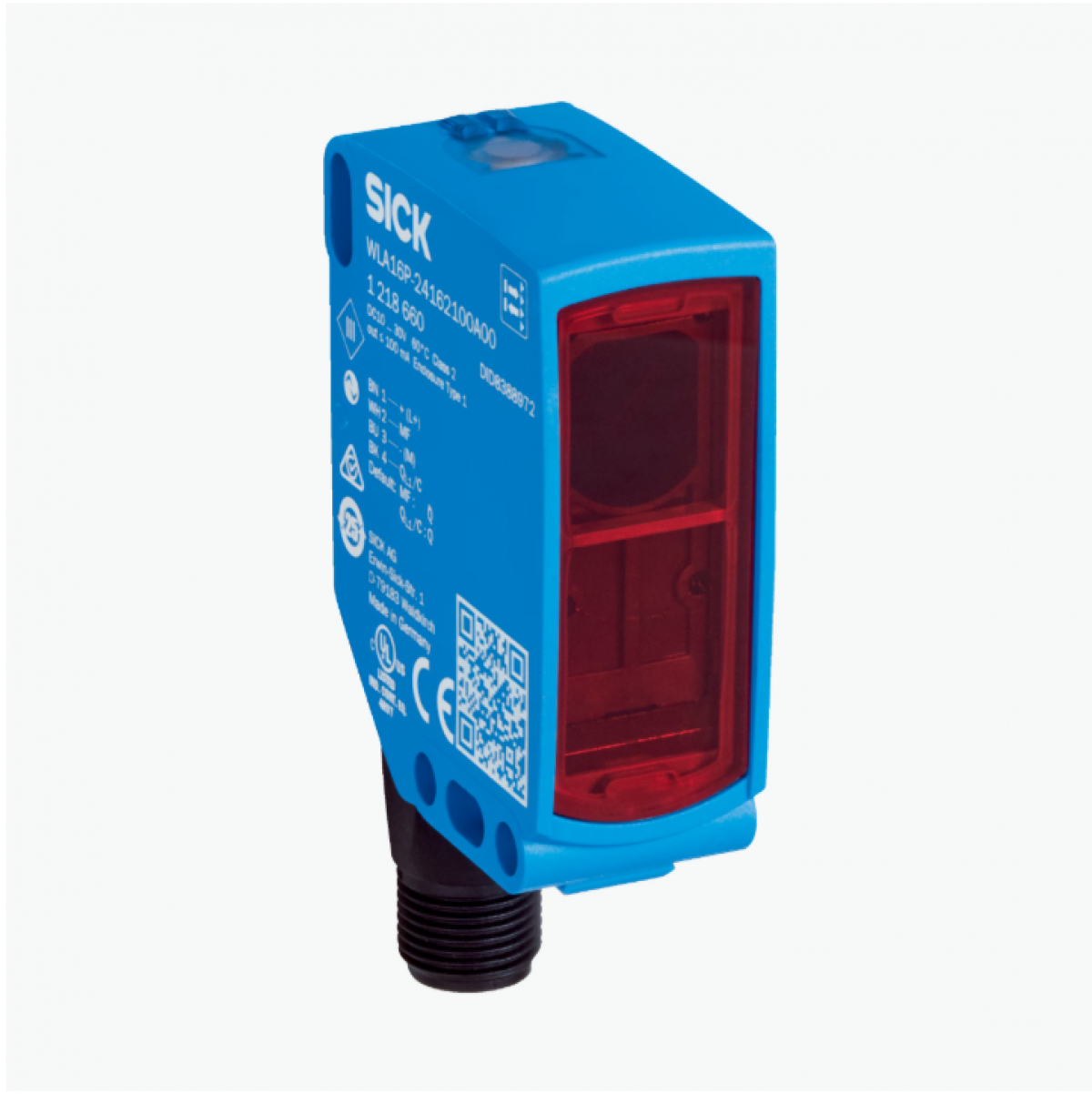

Cảm biến quang điện Sick WTF16P-24161220A00
Functional principle
Photoelectric proximity sensor
Functional principle detail
Foreground suppression, NarrowBeam
Sensing range
Sensing range min.
0 mm
Sensing range max.
400 mm
Adjustable switching threshold for background suppression
100 mm … 400 mm
Reference object
Object with 90% remission factor (complies with standard white according to DIN 5033)
Minimum object height at set sensing range in front of black background (6% remission factor)
7 mm, at a distance of 300 mm
Recommended sensing range for the best performance
100 mm … 300 mm
Emitted beam
Light source
PinPoint LED
Type of light
Visible red light
Shape of light spot
Point-shaped
Light spot size (distance)
Ø 3 mm (200 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)
< +/- 1.0° (at Ta = +23 °C)
Key LED figures
Normative reference
EN 62471:2008-09 | IEC 62471:2006, modified
LED risk group marking
Free group
Wave length
635 nm
Average service life
100,000 h at Ta = +25 °C
Adjustment
Teach-Turn adjustment
BluePilot: For setting the sensing range
IO-Link
For configuring the sensor parameters and Smart Task functions
Indication
LED blue
BluePilot: sensing range indicator
LED green
Operating indicator
Static on: power on
Flashing: IO-Link mode
LED yellow
Status of received light beam
Static on: object not present
Static off: object present
Special applications
Detecting flat objects
Technical drawings
Dimensional drawing, sensor
display and adjustment elements
Connection type M12 male connector, 4-pin
Connection diagram Cd-390
Characteristic curve
Light spot size
Sensing range diagram
