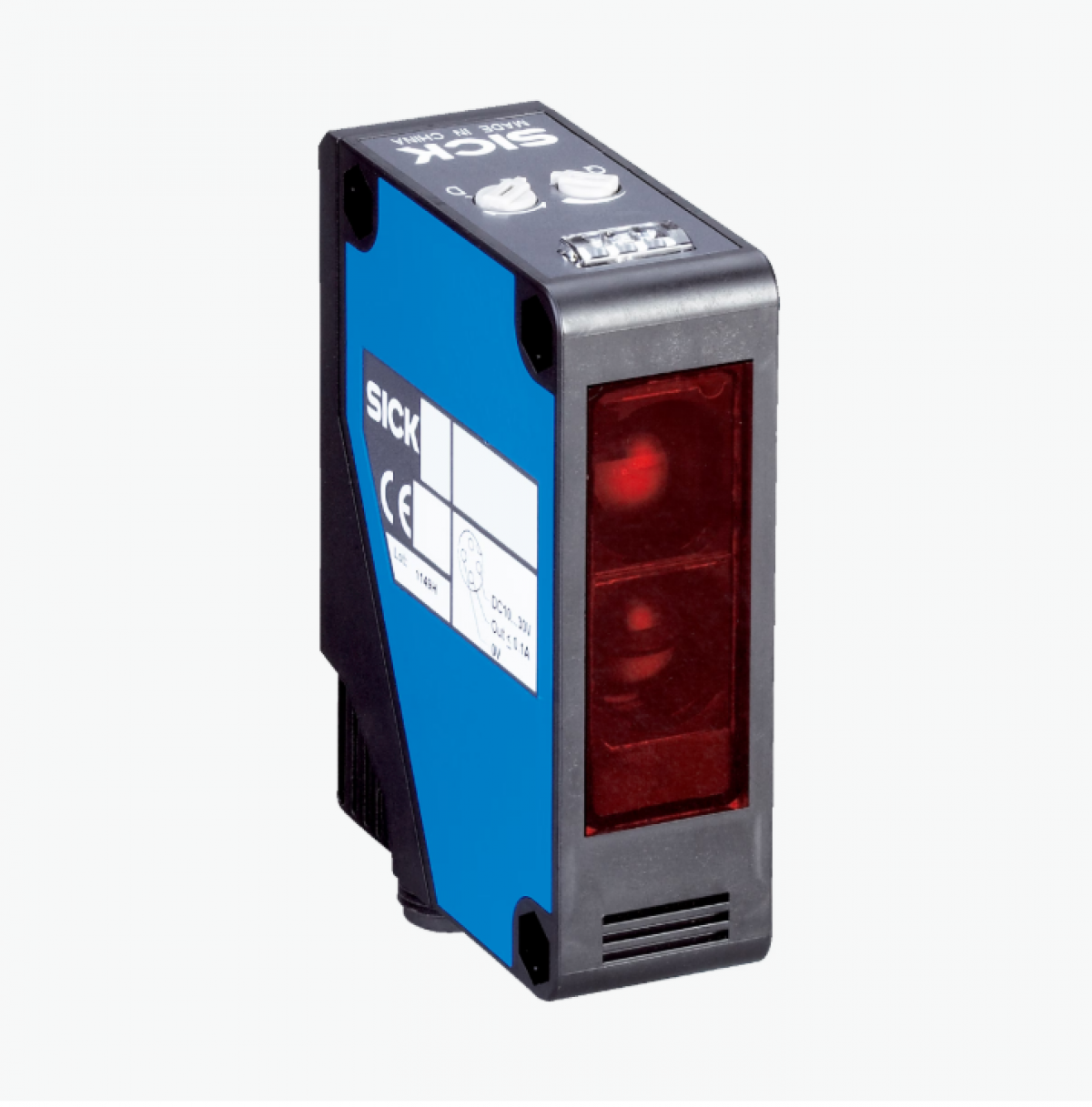

Cảm biến quang điện Sick WTE280-2R1531
Functional principle
Photoelectric proximity sensor
Functional principle detail
Energetic
Dimensions (W x H x D)
23.5 mm x 74.5 mm x 63 mm
Housing design (light emission)
Rectangular
Sensing range max.
10 mm … 2,000 mm 1)
Sensing range
10 mm … 1,500 mm
Type of light
Visible red light
Light source
LED 2)
Light spot size (distance)
Ø 45 mm (1,500 mm)
Adjustment
Potentiometer
adjustable via sensing range adjustment
1) Object with 90% remission (based on standard white, DIN 5033).
2) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Dimensional drawing WTE280-2, WL280-2, AC/DC
Adjustments WTE280-2, AC/DC
Connection diagram Cd-163
Characteristic curve WTE280-2
Sensing range diagram WTE280-2
