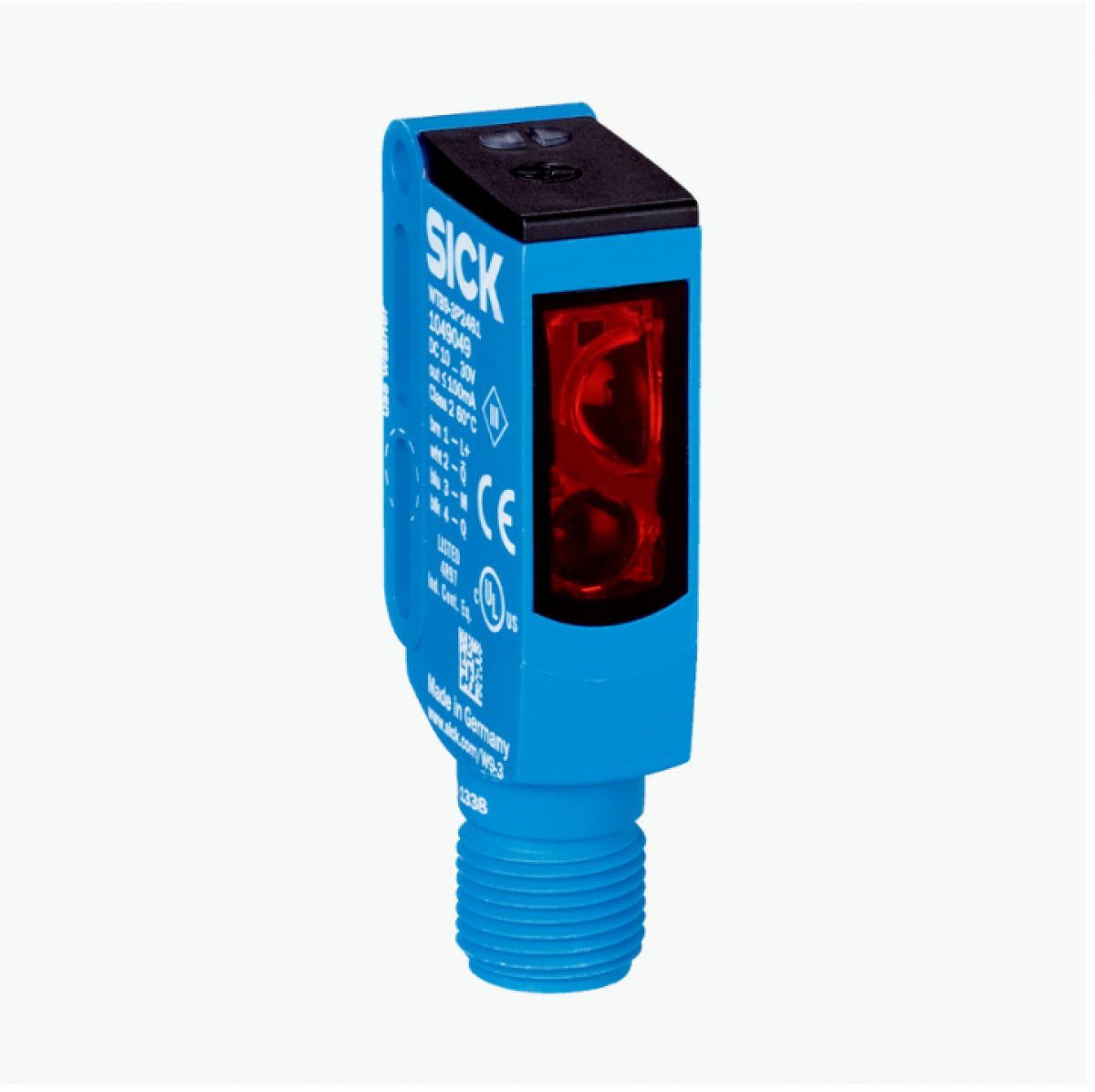

Cảm biến quang điện Sick WTB9-3P2461
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression
Dimensions (W x H x D)
12.2 mm x 52.2 mm x 23.6 mm
Housing design (light emission)
Rectangular
Mounting hole
M3
Sensing range max.
20 mm … 350 mm 1)
Sensing range
20 mm … 200 mm 2)
Type of light
Visible red light
Light source
PinPoint LED 3)
Light spot size (distance)
Ø 4.5 mm (75 mm)
Wave length
650 nm
Adjustment
Potentiometer, 5 turns
1) Object with 90% remission (based on standard white, DIN 5033).
2) Object with 6% remission (based on standard white, DIN 5033).
3) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Adjustments possible Potentiometer
Connection type
Connection diagram Cd-084
Characteristic curve WT9-3, red light, 350 mm
Light spot size WT9-3, red light, 350 mm
Sensing range diagram WT9-3, red light, 350 mm
Dimensional drawing WT9-3
