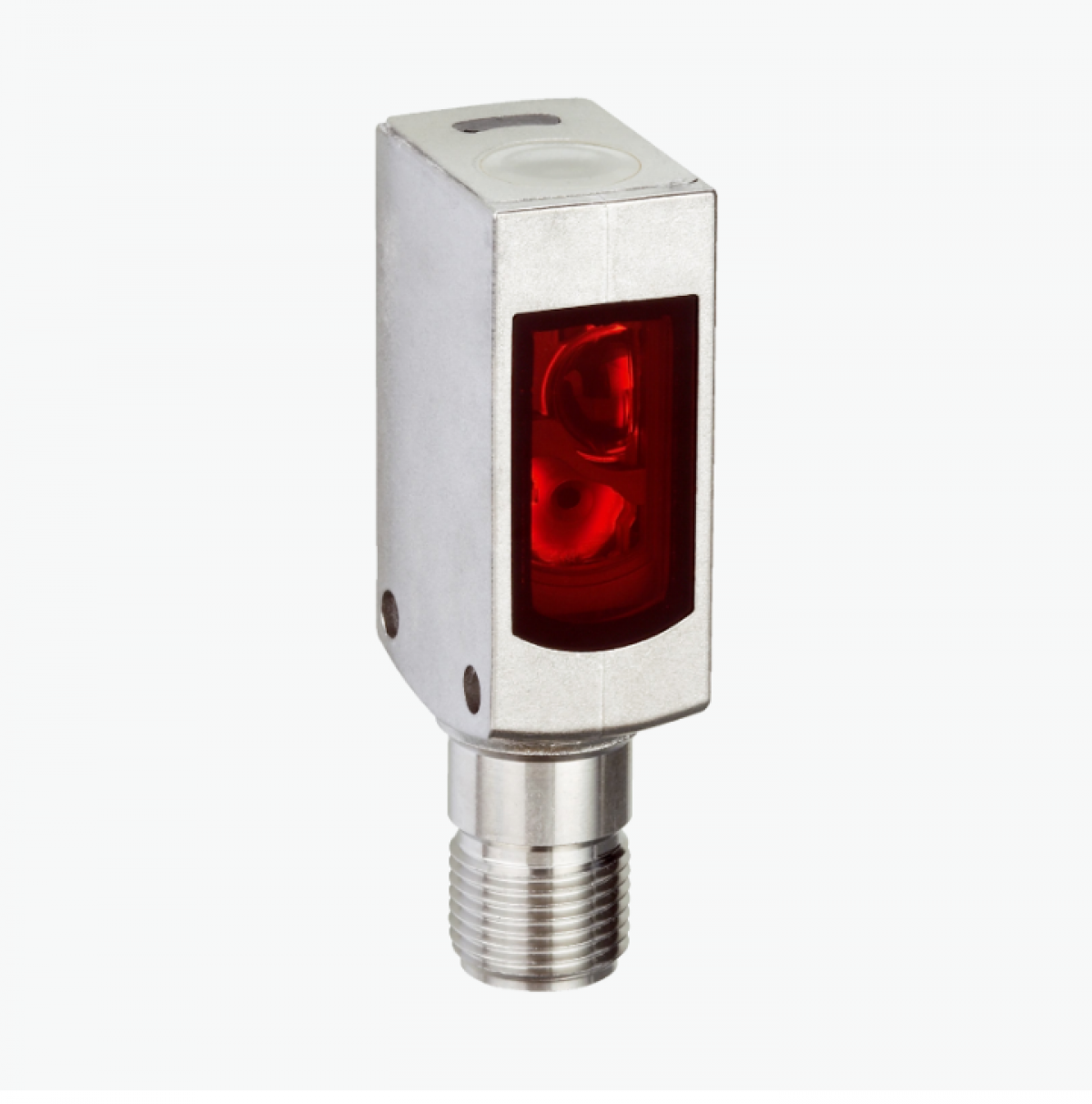

Cảm biến quang điện Sick WTB4SL-3P2262V
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression
Sensing range max.
25 mm … 300 mm 1)
Sensing range
25 mm … 300 mm 1)
Emitted beam
Light source
Laser 2)
Type of light
Visible red light
Light spot size (distance)
Ø 1 mm (170 mm)
Key laser figures
Normative reference
EN 60825-1:2014, IEC 60825-1:2014 / CDRH 21 CFR 1040.10 & 1040.11
Laser class
1
Wave length
650 nm
Adjustment
Single teach-in button
Special applications
Hygienic and washdown zones, Detecting small objects
Housing design
Washdown 3)
Mounting hole
M3
1) Object with 90% remission (based on standard white, DIN 5033).
2) Average service life: 50,000 h at TU = +25 °C.
3) Difference between standard/washdown and hygiene: The essential difference between a standard/washdown product and a hygiene product is that where the process and contact with the medium (activity in the vicinity of the food) are concerned, a hygiene product is designed in accordance with the latest standards and hygiene design guidelines, and materials are selected accordingly.
Technical drawings
Connection diagram Cd-083
Characteristic curve
Light spot size
Sensing range diagram
Dimensional drawing WTB4SL-3, plug
Customs data
