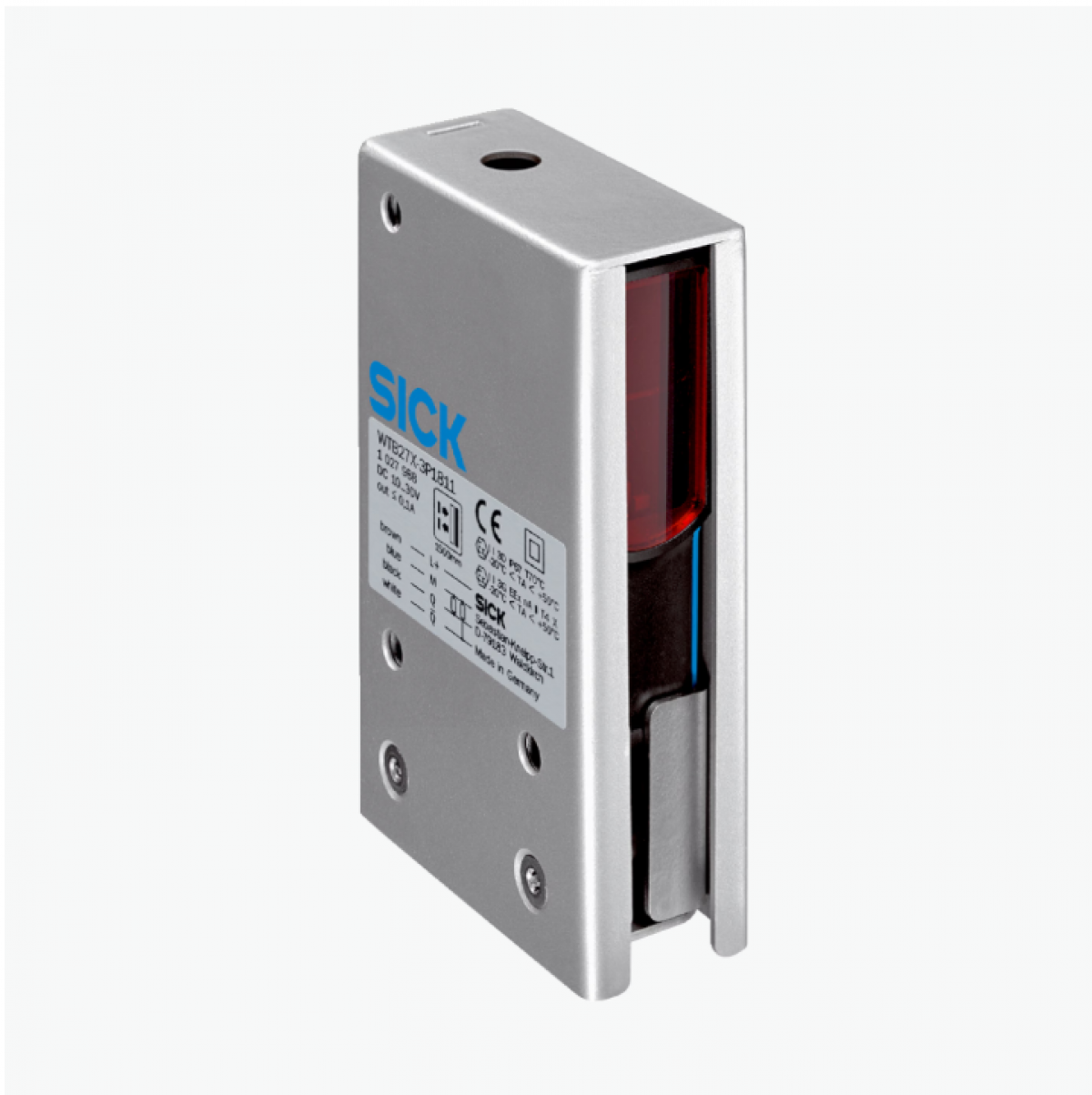

Cảm biến quang điện Sick WTB27X-3P1861S01
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression
Dimensions (W x H x D)
31.4 mm x 112.3 mm x 70.4 mm
Housing design (light emission)
Rectangular
Sensing range max.
30 mm … 2,000 mm 1)
Sensing range
100 mm … 2,000 mm
Type of light
Visible red light
Light source
PinPoint LED 2)
Light spot size (distance)
Ø 12 mm (800 mm)
Wave length
660 nm
Adjustment
Potentiometer
Special applications
Explosive areas
1) Object with 90% remission (based on standard white, DIN 5033).
2) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Adjustments
Connection type
Connection diagram Cd-094
Characteristic curve WTB27-3, PinPoint LED
Sensing range diagram WTB27-3, PinPoint LED
Dimensional drawing WTB27-3 EX
