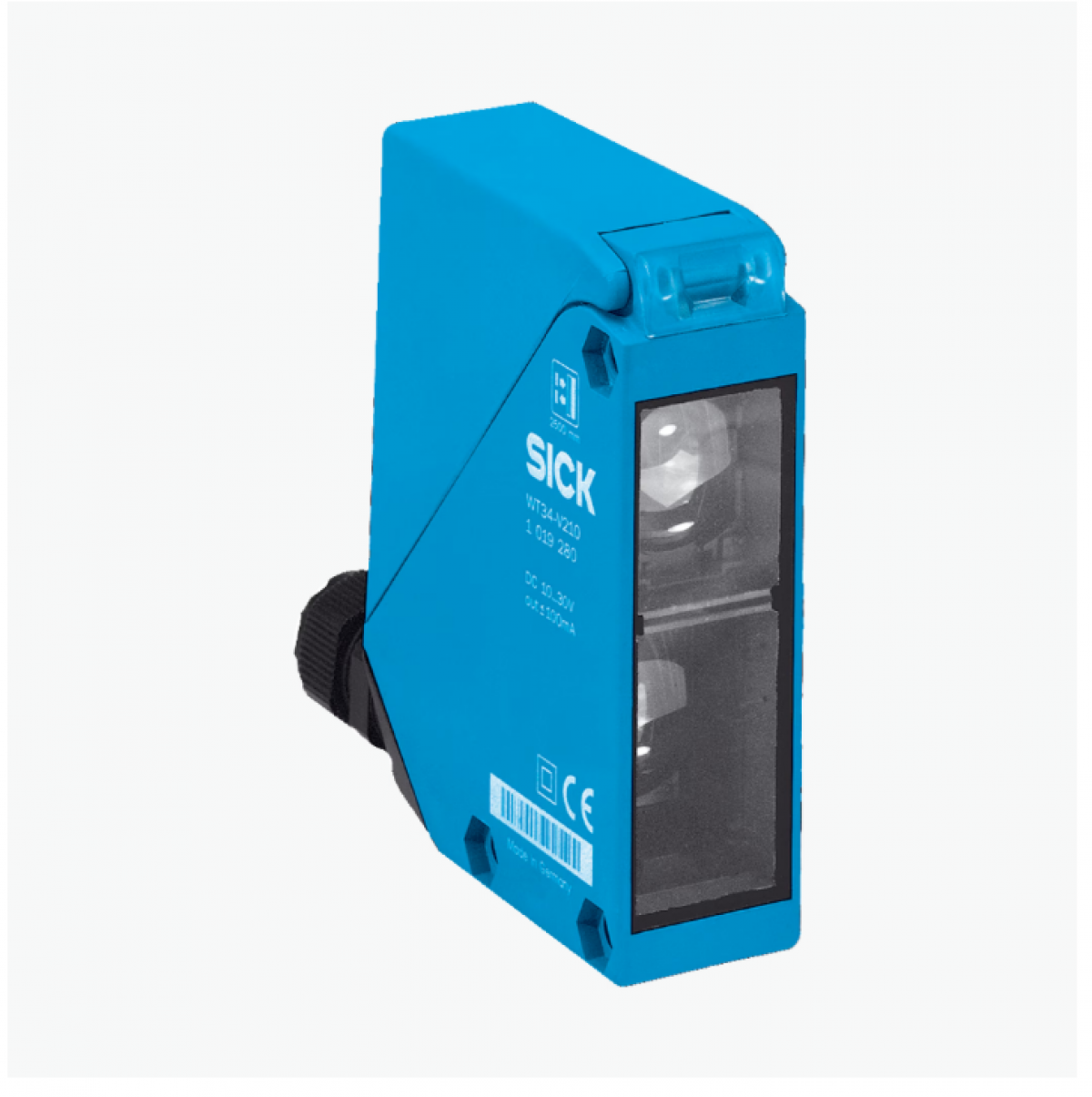

Cảm biến quang điện Sick WT34-R240
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression
Dimensions (W x H x D)
27 mm x 92 mm x 70 mm
Housing design (light emission)
Rectangular
Sensing range max.
100 mm … 1,200 mm 1)
Sensing range
100 mm … 1,200 mm
Type of light
Visible red light
Light source
LED 2)
Light spot size (distance)
Ø 40 mm (1,200 mm)
Wave length
660 nm
Adjustment
Potentiometer
1) Object with 90% remission (based on standard white, DIN 5033).
2) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Dimensional drawing
Adjustments
Connection type
Connection diagram Cd-167
Characteristic curve
Sensing range diagram
