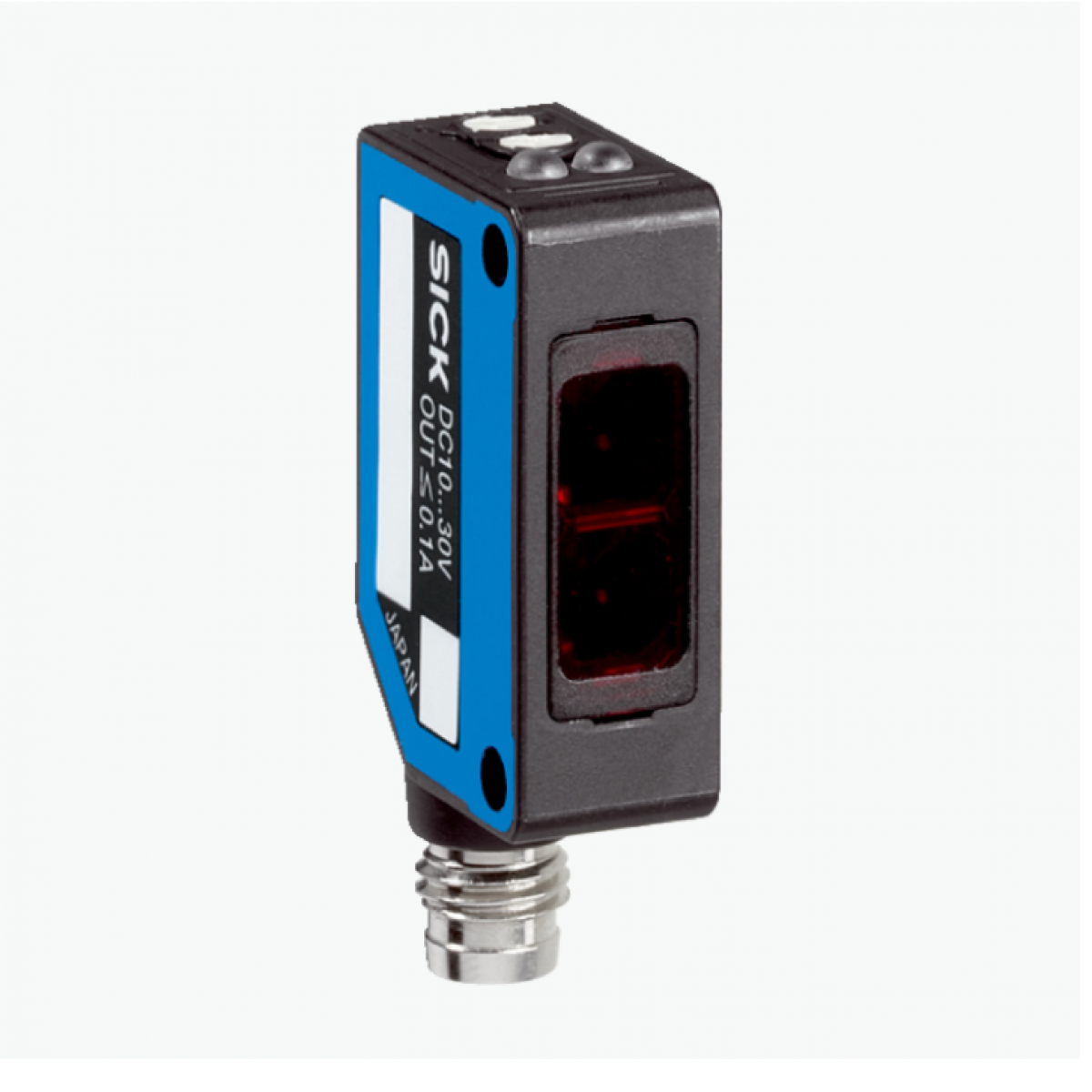

Cảm biến quang điện Sick WT100L-E1141
Functional principle
Photoelectric proximity sensor
Functional principle detail
Energetic
Dimensions (W x H x D)
11 mm x 31 mm x 20 mm
Housing design (light emission)
Rectangular
Sensing range max.
0 mm … 450 mm 1)
Sensing range
0 mm … 400 mm
Type of light
Visible red light
Light source
Laser 2)
Light spot size (distance)
Ø 2 mm (400 mm)
Wave length
650 nm
Laser class
1
Adjustment
Potentiometer, 270°
Special applications
Detecting small objects, Detection of objects moving at high speeds
1) Object with 90% remission (based on standard white, DIN 5033).
2) Average service life: 50,000 h at TU = +25 °C.
Technical drawings
Dimensional drawing WT100L, WL100L
Adjustments WT100L, WL100L
Connection type
Connection diagram Cd-043
Characteristic curve WT100L
Light spot size WT100L
Sensing range diagram WT100L
