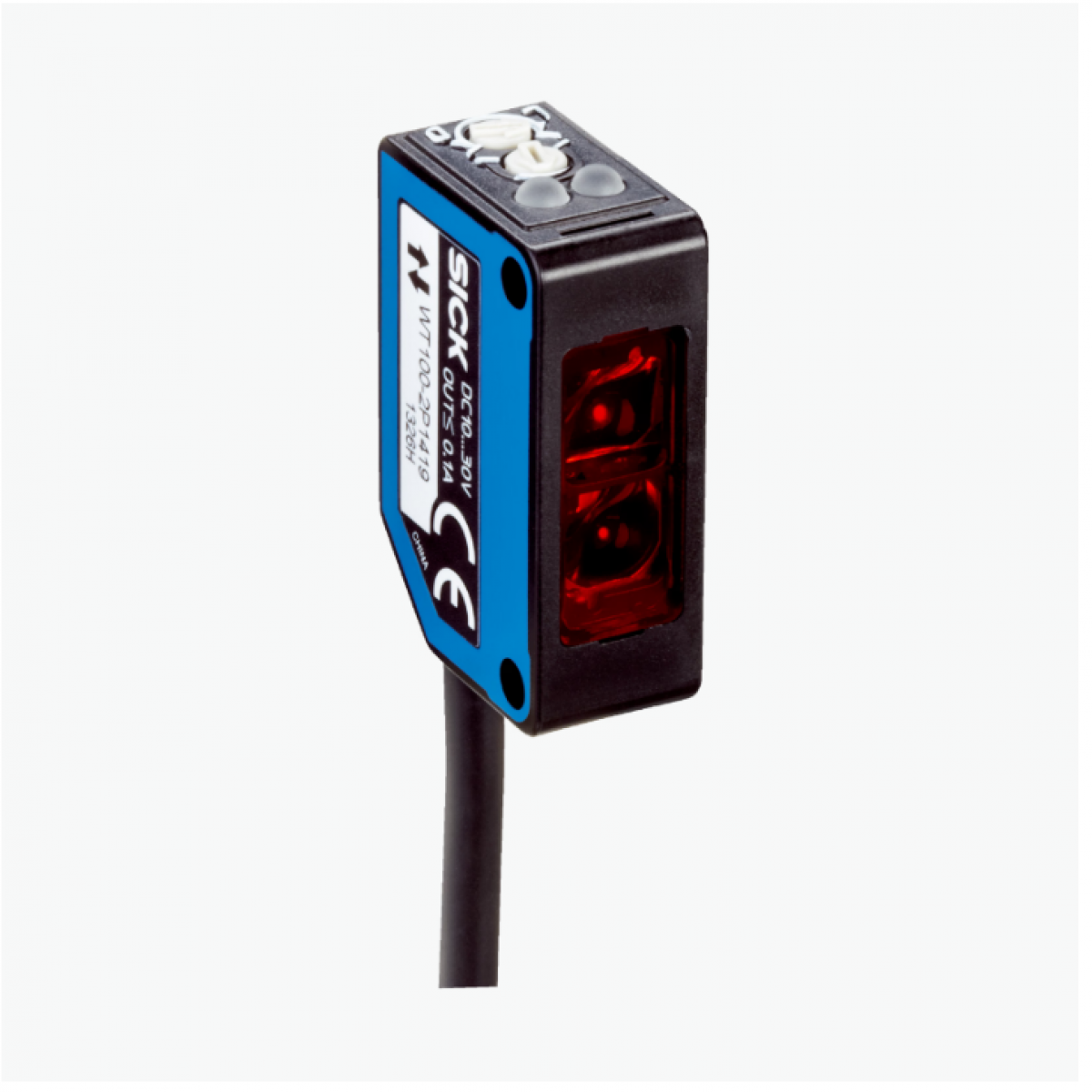

Cảm biến quang điện Sick WT100-2P1439
Functional principle
Photoelectric proximity sensor
Functional principle detail
Energetic
Dimensions (W x H x D)
11 mm x 31 mm x 20 mm
Housing design (light emission)
Rectangular
Sensing range max.
0 mm … 1,200 mm 1)
Sensing range
0 mm … 750 mm 1)
Type of light
Visible red light
Light source
LED 2)
Light spot size (distance)
Ø 75 mm (1,000 mm)
Wave length
632 nm
Adjustment
Potentiometer (Sensing range)
1) Object with 90% remission (based on standard white, DIN 5033).
2) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Dimensional drawing
Adjustments W100-2
Connection diagram Cd-043
Characteristic curve WT100-2, energetic
Light spot size
Sensing range diagram WT100-2, energetic
