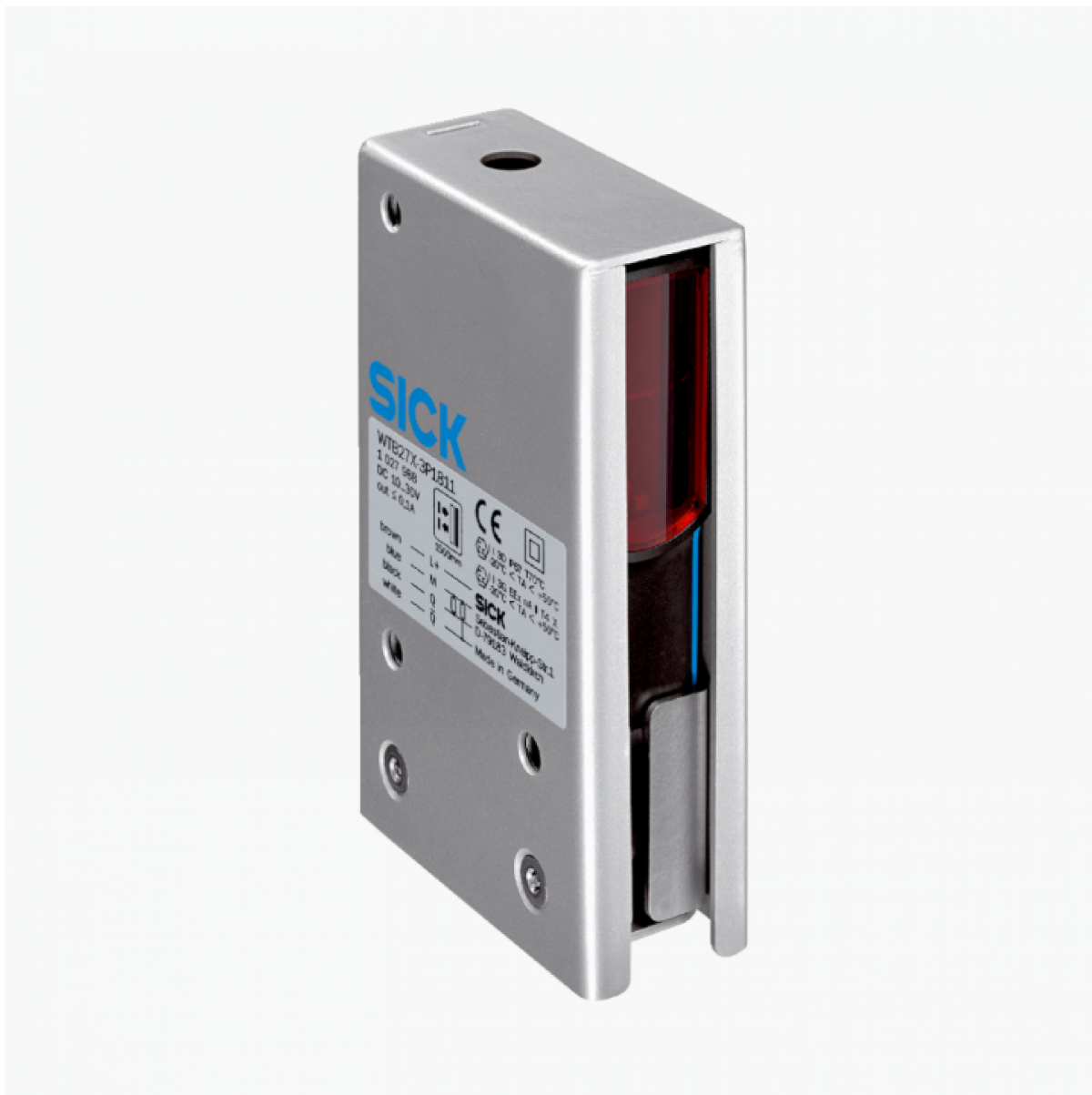

Cảm biến quang điện Sick WSE27X-3P1830S01
Functional principle
Through-beam photoelectric sensor
Dimensions (W x H x D)
31.4 mm x 112.3 mm x 70.4 mm
Housing design (light emission)
Rectangular
Sensing range max.
0 m … 35 m
Sensing range
0 m … 25 m
Focus
Approx. 1.5°
Type of light
Visible red light
Light source
LED 1)
Light spot size (distance)
Ø 600 mm (25 m)
Angle of dispersion
Approx. 1.5°
Wave length
645 nm
Adjustment
None
Special applications
Explosive areas
1) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Connection type
Connection diagram Cd-088
Characteristic curve WSE27-3 EX
Sensing range diagram
Dimensional drawing WSE27-3 EX
