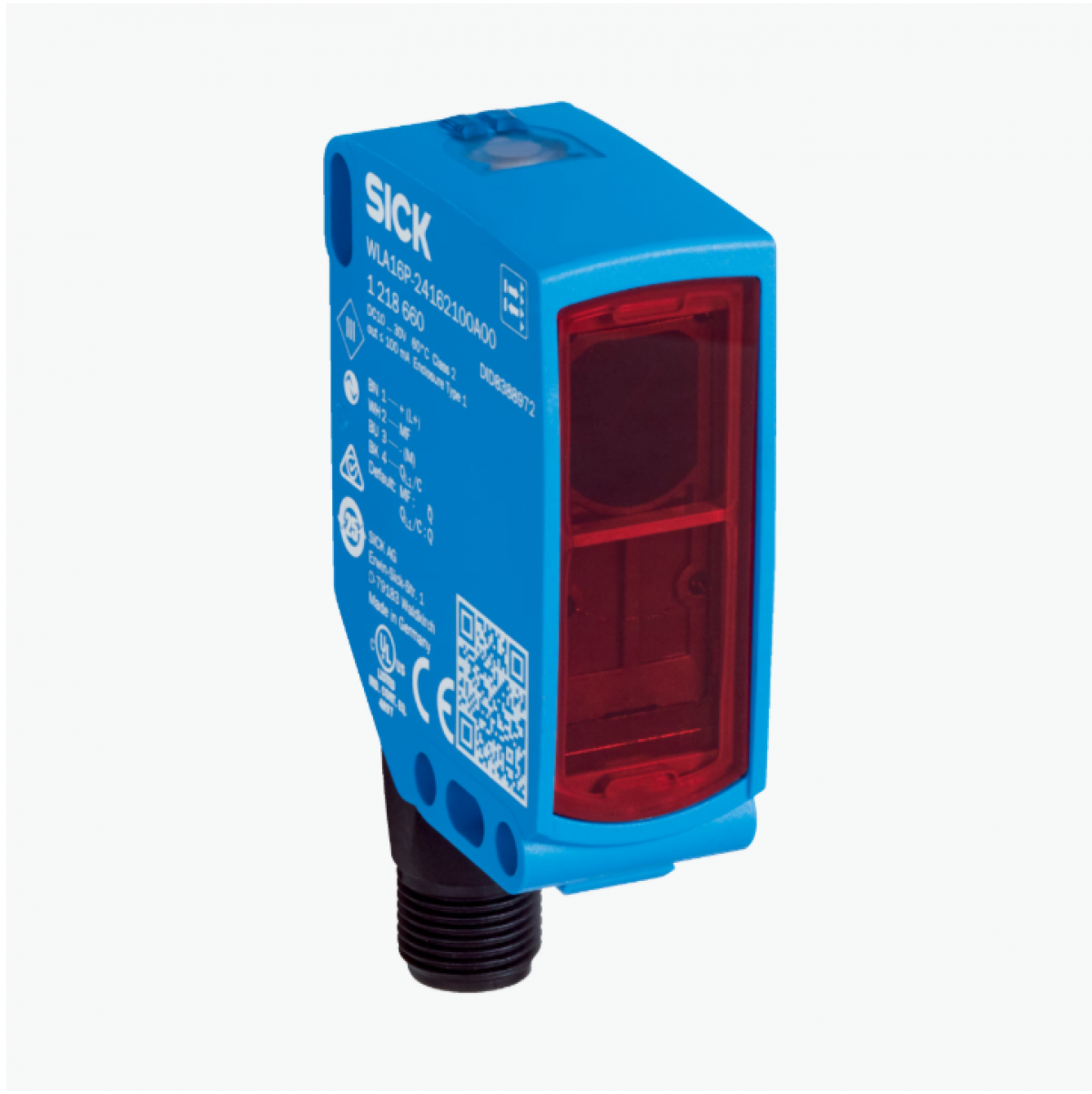

Cảm biến quang điện Sick WSE26P-24162100A00
Functional principle
Through-beam photoelectric sensor
Sensing range
Sensing range min.
0 m
Sensing range max.
60 m
Maximum distance range from receiver to sender (operating reserve 1)
0 m … 60 m
Recommended distance range from receiver to sender (operating reserve 2)
0 m … 50 m
Recommended sensing range for the best performance
0 m … 50 m
Emitted beam
Light source
PinPoint LED
Type of light
Visible red light
Shape of light spot
Point-shaped
Light spot size (distance)
Ø 115 mm (15 m)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)
< +/- 1.0° (at Ta = +23 °C)
Key LED figures
Normative reference
EN 62471:2008-09 | IEC 62471:2006, modified
LED risk group marking
Free group
Wave length
635 nm
Average service life
100,000 h at Ta = +25 °C
Adjustment
IO-Link
For configuring the sensor parameters and Smart Task functions
Wire/pin
For activating the test input
Indication
LED blue
BluePilot: Alignment aid
LED green
Operating indicator
Static on: power on
Flashing: IO-Link mode
LED yellow
Status of received light beam
Static on: object not present
Static off: object present
Flashing: Below the 1.5 function reserve
Technical drawings
Dimensional drawing, sensor
display and adjustment elements
pinouts
Connection diagram Cd-392
Truth table Push-pull: PNP/NPN – dark switching Ǭ
Truth table Push-pull: PNP/NPN – light switching Q
Characteristic curve WSE26P-xxxxx1xx
Light spot size Visible red light
Sensing range diagram WSE26P-xxxxx1xx
Functions Operation note
Functions Operation note
