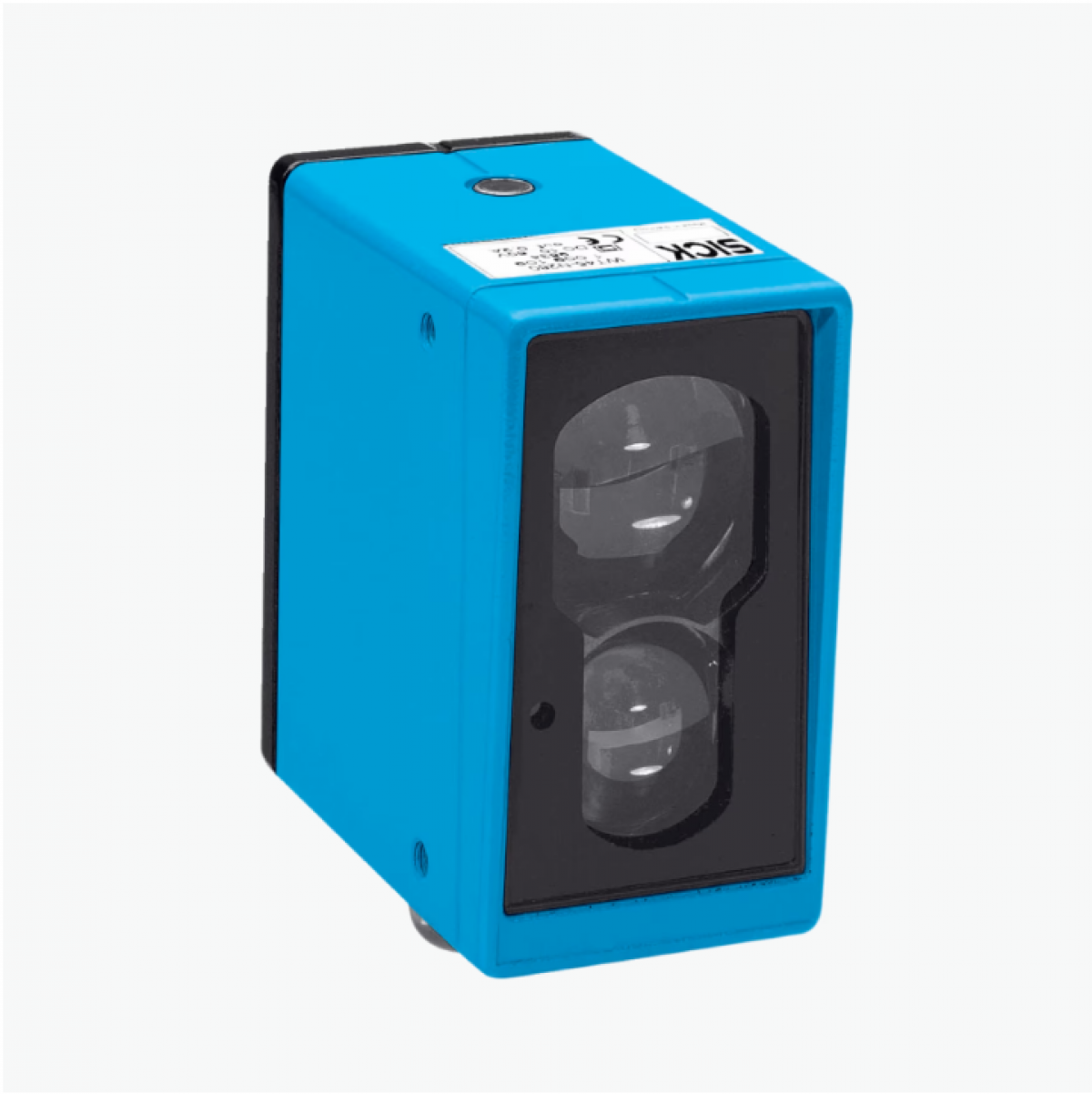

Cảm biến quang điện Sick WS/WE45-N250
Functional principle
Through-beam photoelectric sensor
Dimensions (W x H x D)
60 mm x 105 mm x 105 mm
Housing design (light emission)
Rectangular
Sensing range max.
0 m … 350 m
Sensing range
0 m … 300 m
Focus
Approx. 0.9°
Type of light
Infrared light
Light source
LED 1)
Light spot size (distance)
Ø 4.5 m (300 m)
Angle of dispersion
Approx. 0.9°
Adjustment
Potentiometer
1) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Dimensional drawing
Adjustments
Connection type
Connection diagram Cd-166
Characteristic curve
Sensing range diagram
