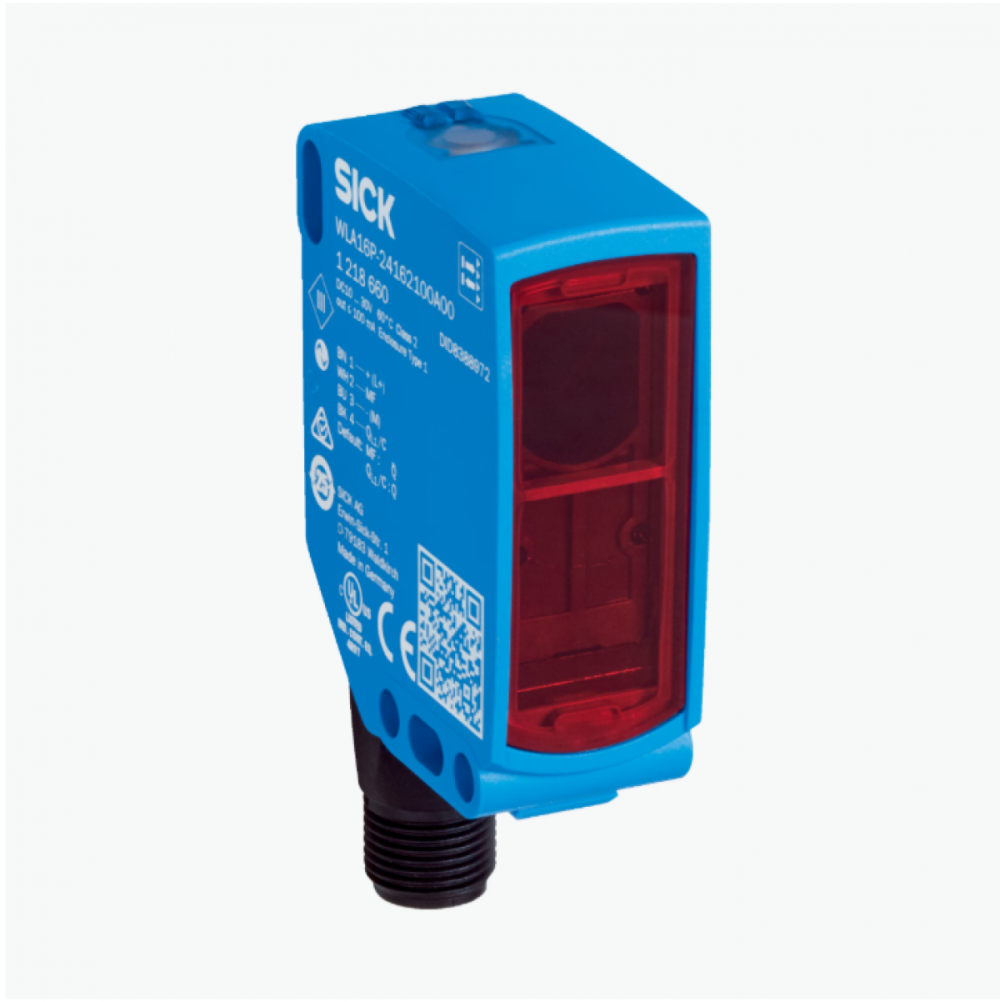

Cảm biến quang điện Sick WLG16P-84162120A00
Functional principle
Photoelectric retro-reflective sensor
Functional principle detail
Without reflector minimum distance (autocollimation/coaxial optics), ClearSens
Sensing range
Sensing range min.
0 m
Sensing range max.
5 m
Maximum distance range from reflector to sensor (operating reserve 1)
0 m … 5 m
Reference reflector
Reflector P250F
Recommended sensing range for the best performance
0 m … 5 m
Polarisation filters
Yes
Emitted beam
Light source
PinPoint LED
Type of light
Visible red light
Shape of light spot
Point-shaped
Light spot size (distance)
Ø 80 mm (5 m)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)
< +/- 1.0° (at Ta = +23 °C)
Key LED figures
Normative reference
EN 62471:2008-09 | IEC 62471:2006, modified
LED risk group marking
Free group
Wave length
635 nm
Average service life
100,000 h at Ta = +25 °C
Adjustment
Teach-Turn adjustment
BluePilot: Teach-in plus user mode selector
IO-Link
For configuring the sensor parameters and Smart Task functions
Indication
LED blue
BluePilot: Mode display
LED green
Operating indicator
Static on: power on
Flashing: IO-Link mode
LED yellow
Status of received light beam
Static on: object not present
Static off: object present
Special applications
Detecting transparent objects
Technical drawings
Dimensional drawing, sensor
Dimensional drawing, connection
display and adjustment elements
Connection type M12 male connector, 4-pin
Connection diagram Cd-390
Truth table Push-pull: PNP/NPN – light switching Q
Truth table Push-pull: PNP/NPN – dark switching Ǭ
Light spot size WLG16P-xxxxx1xx
Sensing range diagram WLG16P-xxxxx1xx
