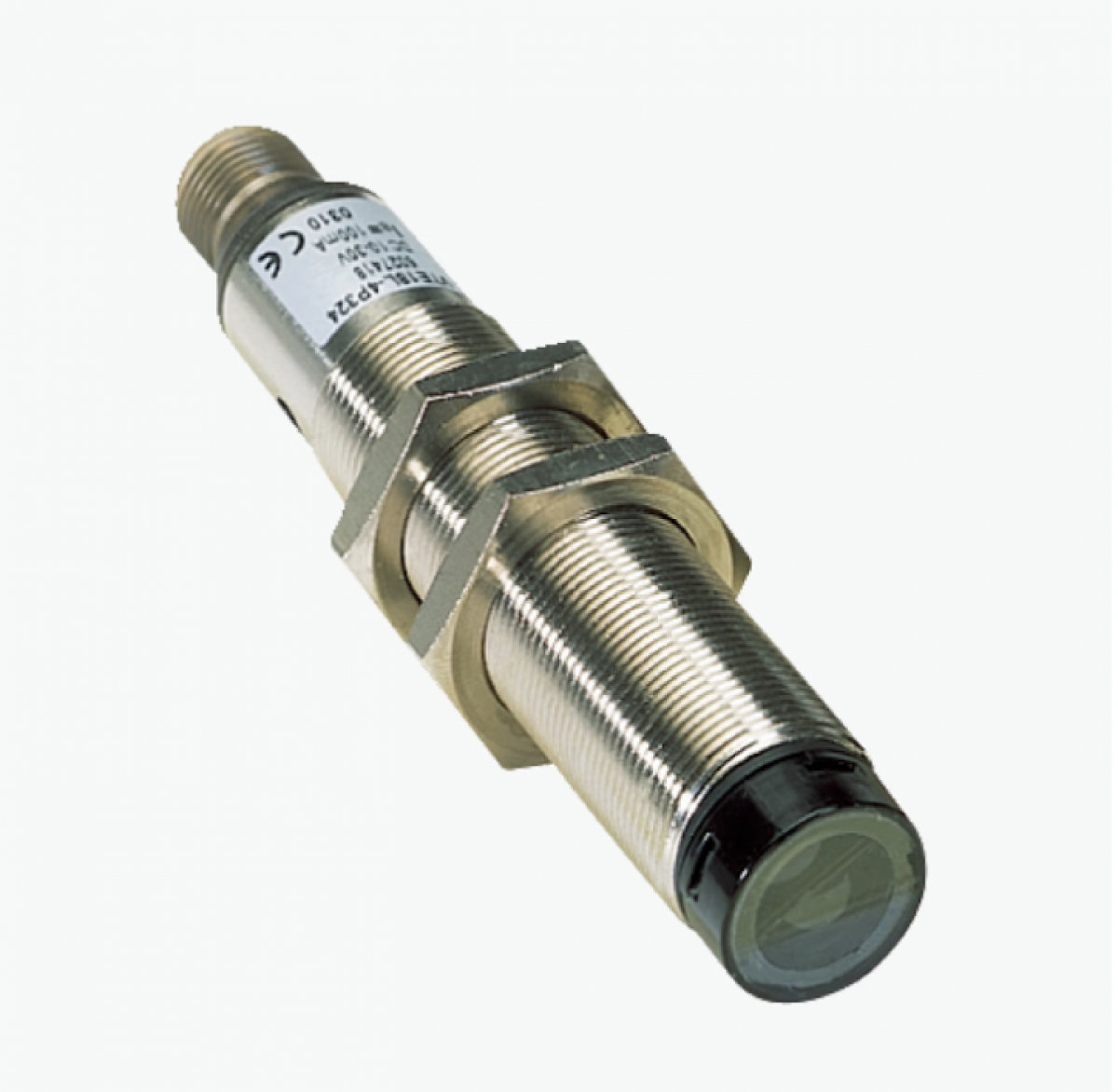

Cảm biến quang điện Sick VTE18L-4N324
Functional principle
Photoelectric proximity sensor
Functional principle detail
Energetic
Dimensions (W x H x D)
18 mm x 18 mm x 97.7 mm
Housing design (light emission)
Cylindrical
Housing length
97.7 mm
Thread diameter (housing)
M18 x 1
Optical axis
Axial
Sensing range max.
0 mm … 400 mm 1)
Sensing range
5 mm … 300 mm
Type of light
Visible red light
Light source
Laser 2)
Light spot size (distance)
Ø 8 mm (300 mm)
Wave length
650 nm
Laser class
1 (IEC 60825-1)
Laser power output
0.4 mW
Adjustment
Cable, Single teach-in button (Sensing range, Sensing range) 3) 4)
Special feature
Focused optics
Special applications
Detecting small objects
1) Object with 90% remission (based on standard white, DIN 5033).
2) Average service life: 100,000 h at TU = +25 °C.
3) Electronically via control input C (0 V).
4) Manual, via teach-in button.
Technical drawings
Connection type
Connection diagram Cd-099
Characteristic curve
Sensing range diagram VTE18L
Dimensional drawing Axial
