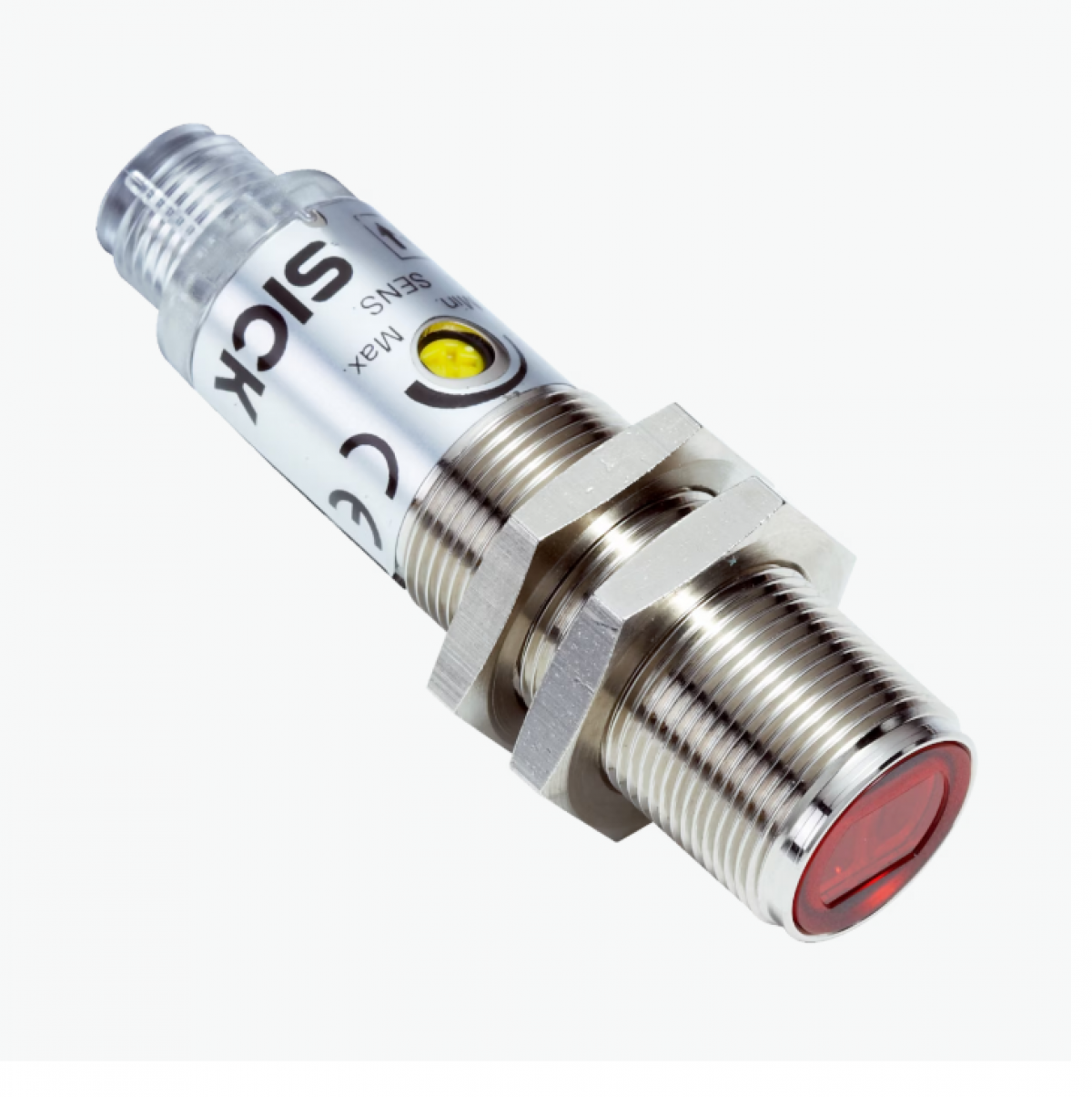

Cảm biến quang điện Sick VTE180-2P42442
Functional principle
Photoelectric proximity sensor
Functional principle detail
Energetic
Dimensions (W x H x D)
18 mm x 18 mm x 69.8 mm
Housing design (light emission)
Cylindrical
Housing length
69.8 mm
Thread diameter (housing)
M18 x 1
Optical axis
Axial
Sensing range max.
1 mm … 500 mm 1)
Sensing range
1 mm … 350 mm 1)
Focus
Approx. 1.5°
Type of light
Visible red light
Light source
LED 2)
Light spot size (distance)
Ø 20 mm (400 mm)
Angle of dispersion
Approx. 1.5°
Wave length
645 nm
Adjustment
Potentiometer, 270° (Sensing range)
1) Object with 90% remission (based on standard white, DIN 5033).
2) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Adjustments
Connection type
Connection diagram Cd-087
Characteristic curve VTE180-2, 450 mm, radial
Light spot size VTE180-2, 400 mm, 500 mm
Sensing range diagram VTE180-2, 450 mm, radial
Dimensional drawing VTF180-2, VTE180-2, VTB180-2, metal, axial
