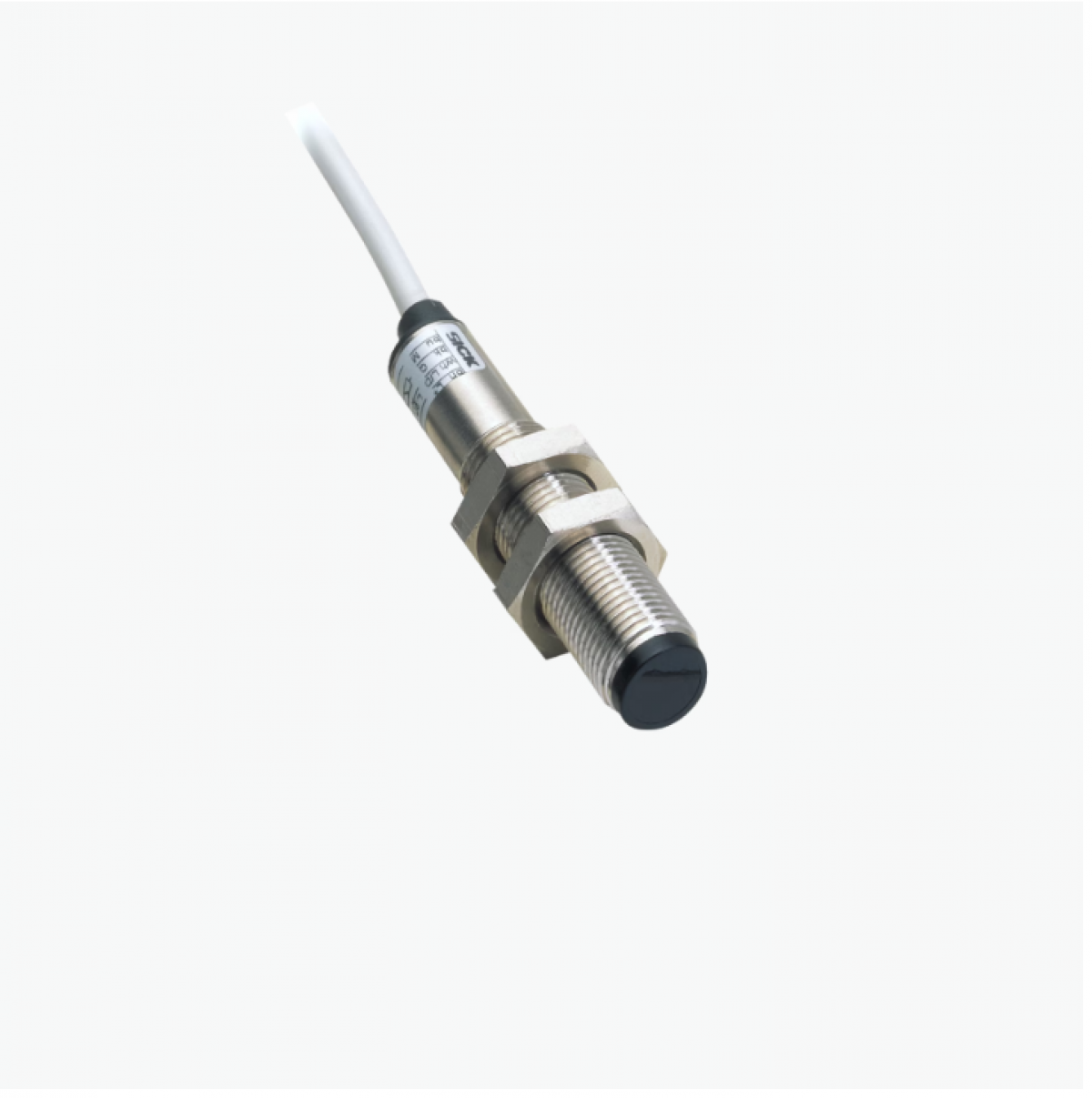

Cảm biến quang điện Sick VT12T-2N112
Functional principle
Photoelectric proximity sensor
Functional principle detail
Energetic
Dimensions (W x H x D)
12 mm x 12 mm x 54.5 mm
Housing design (light emission)
Cylindrical
Housing length
54.5 mm
Thread diameter (housing)
Round connector M12 x 1
Sensing range max.
0 mm … 115 mm 1)
Sensing range
2 mm … 100 mm
Focus
Approx. 11.4°
Type of light
Infrared light
Light source
LED 2)
Light spot size (distance)
Ø 20 mm (100 mm)
Angle of dispersion
Approx. 11.4°
Wave length
880 nm
Adjustment
Single teach-in button, Selectable via control input C (Sensing range, Sensing range) 3) 4)
1) Object with 90% remission (based on standard white, DIN 5033).
2) Average service life: 100,000 h at TU = +25 °C.
3) Manual, via teach-in button.
4) Electronically via control input C (0 V).
Technical drawings
Adjustments
Connection type
Connection diagram Cd-100
Characteristic curve
Sensing range diagram
Dimensional drawing
